Heavy Duty BPW Truck Suspension Parts 14 Ton Axle

Specifications

1.Capacity:14T
2.Distance of Chamber:334,Track:1840
3.Axle Beam:150,Brake Size:420x200
4.Length:2166,Weight:445
5.ISO9001,CE













Truck Suspension Parts 14 Ton Axle Information:



1.Capacity:14000kg

2.Distance of Chamber: 334mm

3.Track: 1840mm

4.Axle Beam: 150MM, Square Type

5.Brake Size:420x200mm

6.Length: 2166mm

7.Bearing: 33215/32219

8.Weight:445kg



Truck Suspension Parts 14 Ton Axle Dimensions :



Part No.	Max.   Capacity	Distance         of Chamber	Track	Axle Beam	Brake size	Length	Bearing	Weight
XDF13-01	13	388	1840	150*150	420*180	2196	518410/45-518410/45	420
XDF15-02	15	396	1850	150*150	420*180	2185	518410/45-220110/49	383
XDF16-02	16	354	1850	150*150	420*220	2218	518410/45-220110/49	425

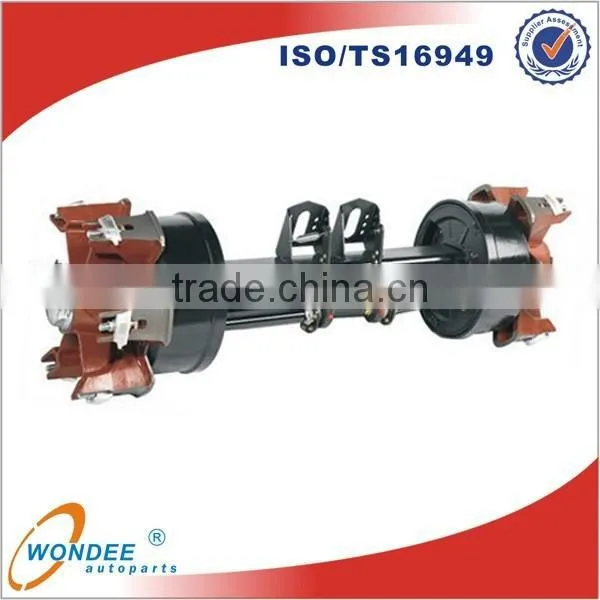

Truck Suspension Parts 14 Ton Axle Detail Photos:





Truck Suspension Parts 14 Ton Axle Features :



1.Axle beam use 20Mn2 seamless pipe, through one-piece press forging and special heat-treatment, which has great over loading capacity and high intensity.

2.Axle spindle,which was processed by digital controlled lathe, is made of alloy material. The bearing position is processed by the method of hardending operation,therefore the bearing can be fixed by hand instead of heating, also convenient for maintain and fixing.

3.Axle spindle is connected by the by submerged arc welding, which make the whole beam more reliable and solid.

4.Axle bearing position is used the grinding machine to keep the bearing at the same level, after processing, it can assure that the concentricity within 0.02mm strictly.

5.Axle grease lubricant is supplied by EXXON Mobile which could providehigh lubricating performance and protect bearing well.

6. Axle brake lining is high performance, non-asbestos, non pollution and long service life.To make check and replace easily, also come with the position of the exhaustion to remind customer to check and maintain.

7.Axle bearing is adopted famous brand in China, with the advantages of over loading

 capability, High rotating speed, good intensity, abrade resistant and heat resistant.



More Axles As Bollow for your Reference:







Besides Truck Suspension Parts 14 Ton Axle, WONDEE AUTOPARTS also Supply SEMI TRAILER,LEAF SPRING, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
