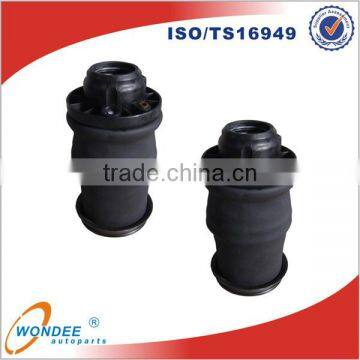

Air Spring for Heavy-duty Truck Trailer Parts

Specifications

Air Spring for Heavy-duty Truck Trailer Parts Information:

 We can supply kinds of Air Spring for air suspension.

1. Type: Goodyear, Firestone, Contitech,DAF,Volvo, Scania type etc.
2. Bellow type, Rolling type, Sleeve type,Convoluted Type.

3. Material: durable and low temperature resistant natural rubber

4. Certificate:ISO9001:2000/TS16949

5. Size: By OEM no. or drawing
6.  Superior quality with best natural rubber, Best Price & Fast Delivery

Cross Information :

1.Firestone Order NR: W02-358-7012

2.Goodyear:1S4.5-107

3.Application: Kinglong

Technical Data :

1.Weight: 3.64kg

2.Design Height: 304mm

3.Deflection (Height Min): 99mm

4.Deflection (Height Max): 365mm

5.Working Stroke: 266mm

6.Measurement  d max: 285mm

7.Loading cap.at 1.0bar:1.56kN

8.Loading cap.at 7.0bar: 4.10kN

Sleeve Air Bag/Spring Dimension:

Because of the limited space, not show all part numbes , we can supply products according with customer's OEM No.

 About WONDEE:

About Us :

WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying

a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From

2009,WONDEE has expanded the business to special steel , agricultural machinery parts &

wheel rim production line.

In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are

certified to the ISO/TS16949 international system.
