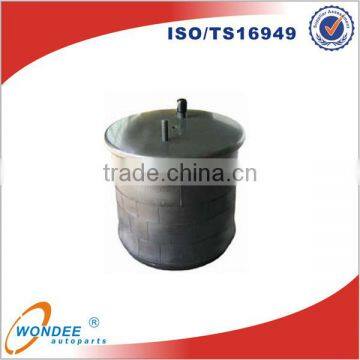

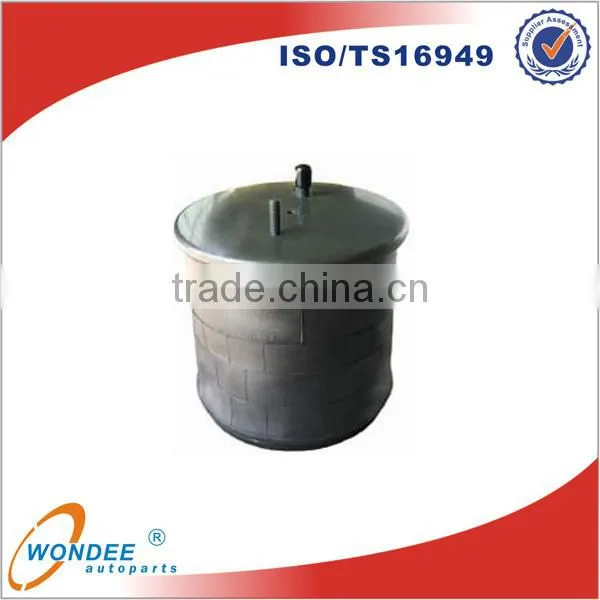

Rubber Contitech Air Spring

Specifications

Rubber Contitech Air Spring Information:

 We can supply kinds of Air Spring for air suspension.

1. Type: Goodyear, Firestone, Contitech,DAF,Volvo, Scania type etc.
2. Bellow type, Rolling type, Sleeve type,Convoluted Type.

3. Material: durable and low temperature resistant natural rubber

4. Certificate:ISO9001:2000/TS16949

5. Size: By OEM no. or drawing
6.  Superior quality with best natural rubber, Best Price & Fast Delivery

Cross Information :

1.Contitech: 941MB

2.Firestone Style Number: 1T 17D-8.3

3.Firestone Order NR:  W01-M58-8619

4.Goodyear: 1R11-700

5.Phoenix: 1 DK 21

6.Taurus: KR 730-01

7.Dynlop fr: D11B30

8.CF GOMMA: 1 TC 300-36

Technical Data :

1.Weight: 9.78kg

2.Design Height: 360mm

3.Deflection (Height Min): 285mm

4.Deflection (Height Max): 610mm

5.Working Stroke: 325mm

6.Measurement  d max: 305mm

7.Space Required: 325mm

8.Loading cap.at 1.0bar:2.3kN

9.Loading cap.at 7.0bar: 28.5kN

Rolling Lobe Air Bag/Spring Dimension:

Because of the limited space, not show all part numbes , we can supply products according with customer's OEM No.
