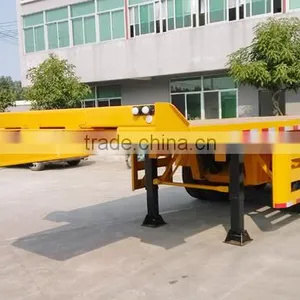

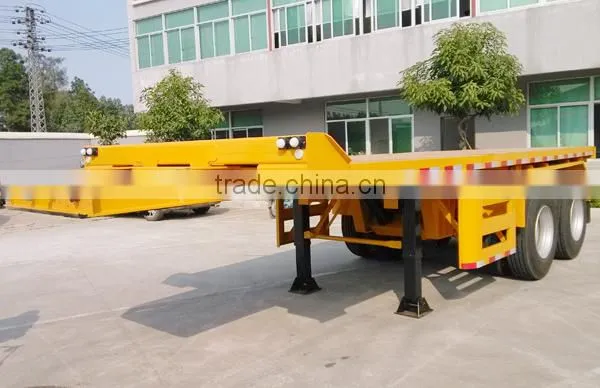

Container 2 Axle Flatbed Trailer of Trailer Truck

Flatbed Trailer of Trailer Truck Specification:

Tare Weight:6000 kg
Payload:30000 kg
Overall Length:7750 mm
Overall Width:2480 mm
Overall Height:1574 mm
Wheel track:1840 mm
Wheelbase:4740mm+1310mm

Flatbed Trailer of Trailer Truck Dimension:
1. Main Frame: Heavy duty and extra durability designed; Opting for high tensile steel Q345B, welding by
automatic Submerged-Arc processes; 500mm Height “I” beam, Top Flange 14mm, width 140mm; Middle Flange 8mm; Bottom Flange 16mm, width 140mm.
2. Floor: Steel sheet 3mm thickness
3. Axle: 2 units of WONDEE brand-13T axle
4. Suspension: WONDEE brand 2-axle suspension, American design
5. Leaf Spring: four sets of reliable local brand, 8-piece leaf spring, 16*90mm
6. King Pin: one unit of 2” bolt-in kingpin
7. Landing Gear: Two-speed, manual operation, heavy duty WONDEE brand landing gear
8. Wheel Rim: 9 units of 9.00-22.5 wheel rim,
9. Tire: 9 units of 12R22.5 tire
10. Hydraulic System: 1set completed WONDEE brand hydraulic system
11. Lifting Height: 48°
12. Twist Lock: 4 nos.
13. Spare Tire Carrier: One set of spare wheel carrier including a riser
14. Pneumatic Braking System: one unit of WABCO RE 4 relay valve; four units of T30/30 spring brake chamber;
one unit of reliable local brand 45L air tank; two units of reliable local brand standard coppery air- connector.
15. Electrical System One unit of JAEGER POWAY, 24V 7-pin ISO 1185 socket; two sets of reliable, local
brand standard rear light, turn light, rear reflector, side light, side reflector etc. One set of WONDEE (brand) 6-core standard Cable.
16. Painting Sand blasting before painting; one coats of primer, anti-corrosion; two coat of finish painting; color advised by client
17. Accessory One box with a set of standard trailer tool

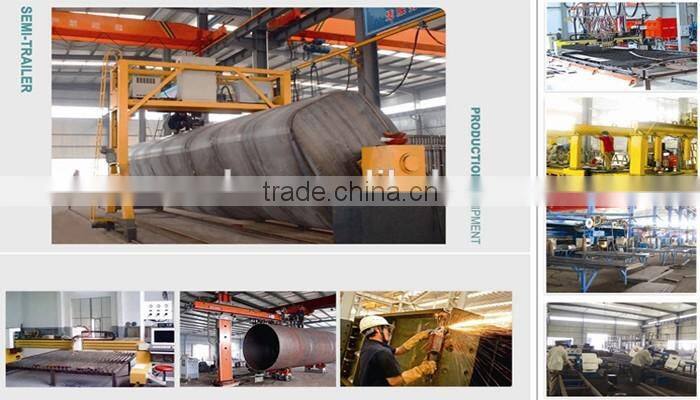

Wondee autoparts has the most advanced equipment for special vehicle production, the semi-trailer production lines were equipped with the famous domestic brands and imported accessories in the high degree,such as: automatic welding, clamping machine, plate turner,gentry automatic submerged arc welding machine,large shot blasting machine,bending machine,shears,presses and large-scale equipment and super performacer testing equipment.
A specialized line for container mass production,which including (side & top wall plate line, bottom frame line,the front & rear part frame line,assembling line, pretreatment & painting line), Highly standard inspection lab for quality control.
