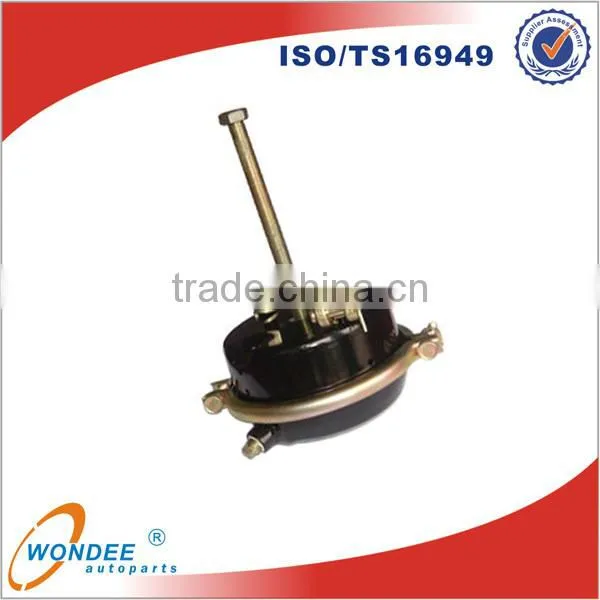

Semitrailer Single Air Brake Chamber Information:
Xiamen Wondee Autoparts Co., Ltd., located in Xiamen city, Fujian Province of China, has been supplying a wide variety of semi-trailers, trucks, special purpose vehicles, CKD vehicles, & Auto parts.
1.Original No. : |
2.Type: T30 |
3.Mouting Bolt: 5/8-11UNC |
4.Mouting Bolt Center: 120.7 |
5.Input Threads: NPT3/8 |
6.Stroke: 64 |
7.Push Rod Thread: 5/8-18UNF |
8.Push Rod Length: 207 |
9.Life-time: Service Chamber: :≥1,000, 000Time |
10.Leading Standard: SAE J1463-95 |
11.Parking Chamber ≥200,000Times |
Semitrailer Single Air Brake Chamber TECHNICAL REQUIRE:
1.Max Operating Pressure: 1.0MPa |
2.Operating Temperature Range: -40 º C ~+80 º C |
3.Operating Presure: 0.8 MPa |
Spare Parts for Air Chamber:
| - Release Stud Assembly |
| - Chamber |
| - Compression Spring |
| - Pressure Plate |
| - Piloted Diaphragm |
| - Adapter Return Spring |
| - Clamp Assembly |
| - Adapter |
| - " O " ring |
| - Adapter Push Rod |
| - Diaphragm |
| - Push Rod Assembly |
| - Housing Assembly |
| - Mounting Hardware |
| - Jam Nut |
| - Clevis Assemly |
| - Flat Washer |
| - Mouting Nut |
| - Lock Washer |
Warming : Piloted diaphragms to be used only on Anchorlock Spring Brakes and only on the emergency side. Use on the service side will result in a reduction of stroke length.
Air Brake Chamber Dimension:
TYPE | STROKE | R1 | R2 | L1 | L2 | PUSHROD THREAD LENGTHL4 | PUSHROD THREAD |
T24 | 64 | 116 | 93 | 110 | 227 | 207 | 5/8"-18UNF2A |
T30 | 64 | 130 | 106 | 110 | 255 | 255 | 5/8"-18UNF2A |
T24/T24 | 64 | 116 | 93 | 224 | 270 | 207 | 5/8"-18UNF2A |
T30/30 | 64 | 130 | 106 | 238 | 255 | 255 | 5/8"-18UNF2A |
T24/T30 | 64 | 116 | 93 | 230 | 212 | 207 | 5/8"-18UNF2A |
AIR LNLET THREAD | MOUNTING BOLT THREAD | MOUNTING INLUDED ANGLE | WEIGHT |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 4KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 4.6KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 8KGS |
3/8"-NPTF | 5/8"-11UNC2A | 45 | 8.8KGS |
3/8"-NPTF | 5/8"-11UNC2A | 90 | 8KGS |
