Help CenterOEM 200027 Conventional Agricultural Trailer 10 Ton Leaf Spring
Related Products
-
IPF5/IZ5F-FL Pick-up Russia Market Truck Leaf SpringUS$ 850 - 950MOQ: 5 Tons -
MPR5 Conventional Pick up Truck Russia Leaf Spring for SaleUS$ 850 - 950MOQ: 5 Tons
-
Trailer Parts 45*6 Steel Boat Trailer Small Leaf Spring ManufactureUS$ 850 - 950MOQ: 5 Tons
-
P5R70/13/6 Factory Pick-up Conventional Truck Steel Leaf SpringUS$ 850 - 950MOQ: 5 Tons
-
MZ2R P70/11/4 Russia Market Truck Parts Leaf Spring SuspensionUS$ 850 - 950MOQ: 5 Tons
Leaf Spring Main Dimension | |
1.Production Name : Agricultural Trailer 10 ton Leaf Spring | |
2. Types |
Conventional Leaf Spring |
3. Width |
120mm |
4. Thickness |
14mm |
5. Pieces |
7 |
6. Weight |
87.30kg |
Agricultural Trailer 10 ton Leaf Spring Specification | |
1. Components: |
Leaf,clip,center bolt |
2. Color |
Red,shinning black,dark black,grey,blue |
3. Materials: |
SUP6, SUP7, SUP9, SUP9A, SUP10, SUP11 and SUP11A are available. |
4. Quality level: |
Excellent quality for international market, made in China, WONDEE brand |
5. Certificate: |
ISO9001; TS16949; COC; PVOC; CIQ; SONCAP; BV; C/O; FORM E. |
6.Truck,trailer,bus suitable: |
SCANIA,MAN,VOLVO,TOYOTA,BPW,RANDON,UAZ ,MERCEDES-BENZ,DAF,IVECO,HOWO,CIMC |
7.Our products are popular in the worldwide market, including North American, South American, European, African | |

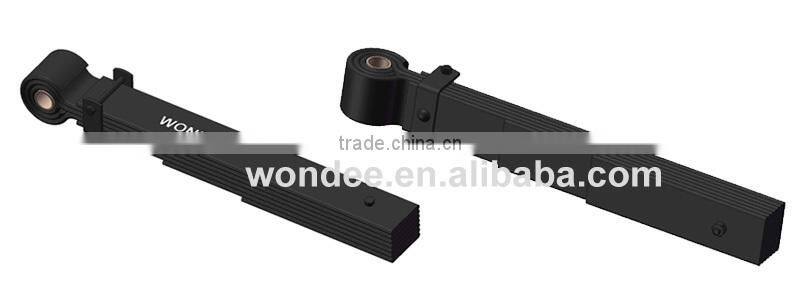

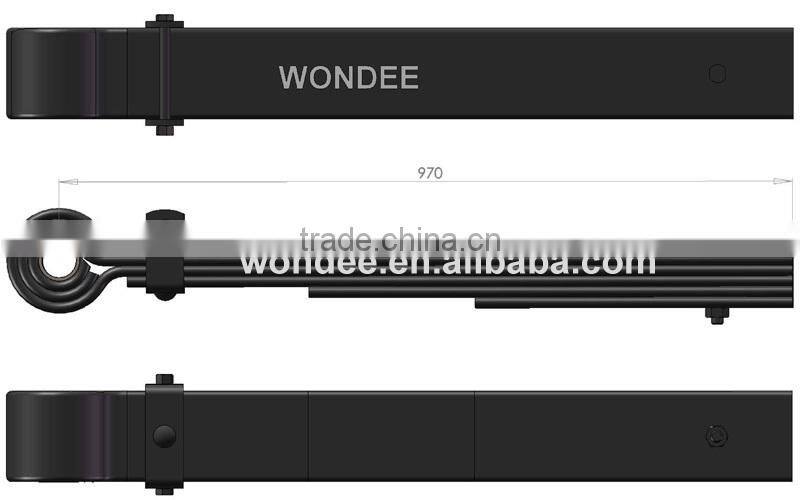

3D Detail Photos about Agricultural Trailer 10 ton Leaf Spring :

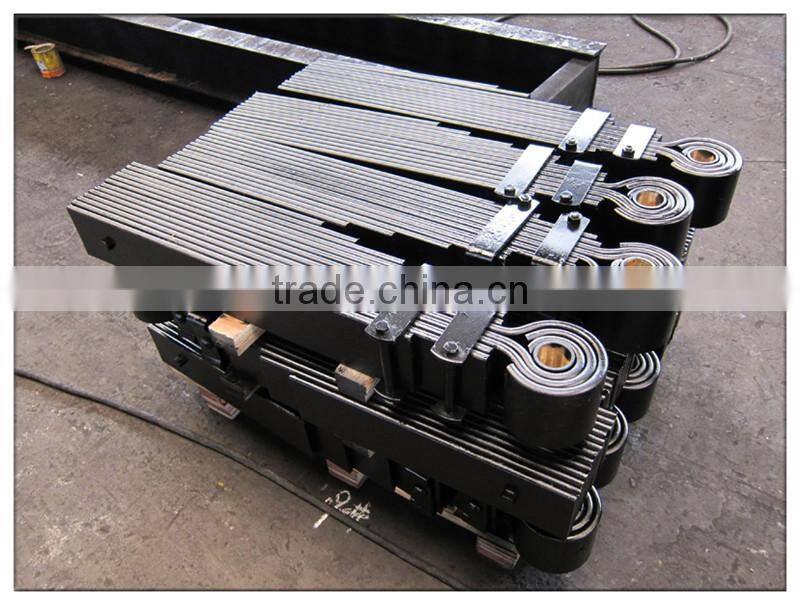

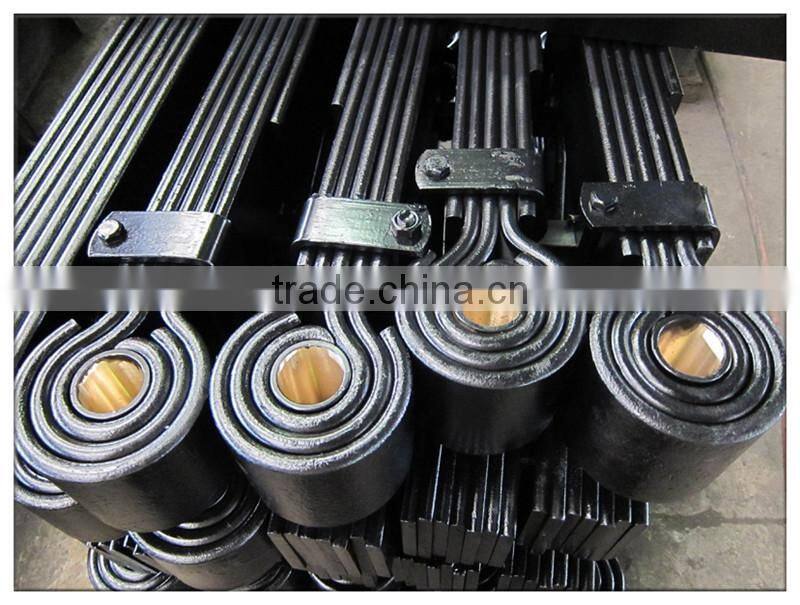

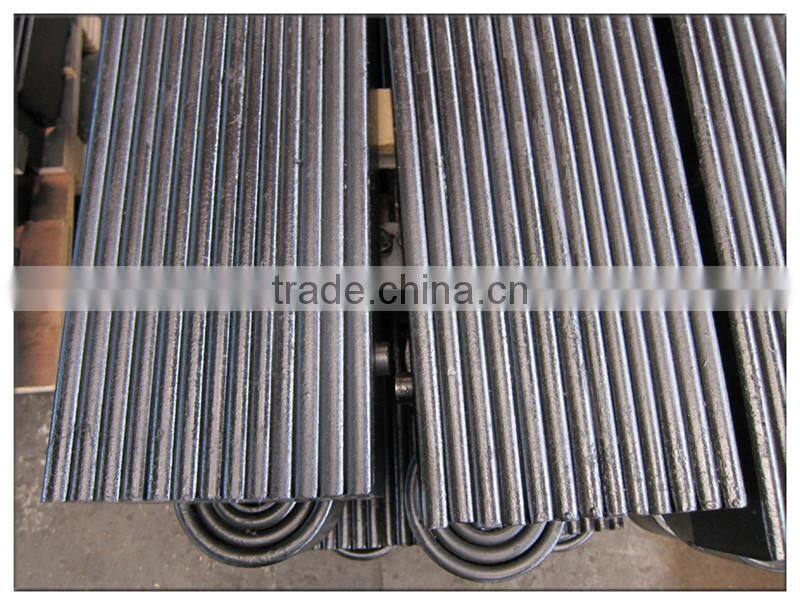

Agricultural Trailer 10 ton Leaf Spring Detail Photos:
Leaf Spring Manufacturing process | |
Multi-leaf springs are made as follows: | |
1.Shearing of flat bar | |
2.Center hole punching / Drilling | |
3.End Heating process |
(1).Eye Forming / Wrapper Forming |
(2).Diamond cutting / end trimming / width cutting / end tapering | |
(3).End punching / end grooving / end bending / end forging / eye grinding | |
(4).Center hole punching / Drilling / nibbing | |
4.Heat Treatment |
(1).Heating |
(2).Camber forming | |
(3).Quenching | |
(4).Tempering | |
5.Surface preparation |
(1).Shot peening / stress peening |
(2).Painting | |
6.Eye bush preparation process |
(1).Eye reaming / eye boring |
(2).Bush insertion | |
(3).Bush reaming | |
7.Assemble |
(1).Presetting & load testing |
(2).Paint touch-up | |
(3).Marking & packing | |
Agricultural Trailer 10 ton Leaf Spring Factoy Photos:
Besides Agricultural Trailer 10 ton Leaf Spring, WONDEE AUTOPARTS also Supply SEMI TRAILER, WHEEL RIM,LANDING GEAR,SUSPENSION ... .... ...
