Specifications
1.Matched Power:24-50hp2.Overall Dimension:2400mm
3.TS16949,COC,CIQ,SONCAP
4.2BYF-2
5.Row Spacing (mm) : 500-700

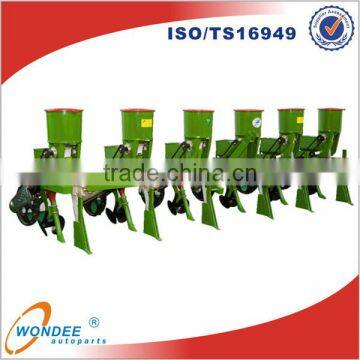

2BX-4 Green Soy bean And Corn Seeder Information:
1. Corn seeder weight:110-360kg
2. matched power:12-80HP
3. sowing row:2-6
4. seeds quantity : 1.50-2.35kg/mu.
5. Quality level: excellent quality for international market, made in China, WONDEE brand
6. Payment terms: T/T or L/C at sight.
7. Certificate: ISO9001; TS16949; COC; PVOC; CIQ; SONCAP; BV; C/O; FORM E.
8. Area suitable: Europe,America,Africa,Asia
Soy bean And Corn Seeder Detail:
1.It is low-position throwing, percise distance between hills, even seeding and saves lots of time and labor.
2.The model of 2BX-4 bean and corn seeder is one kind multifunctional seeder, which could be lifted up and down by the hydraulic machine.
3. The machine adopt the type of three-point mount to be connected the four-wheel tractor of 35-80 horse power.
4.To finish the ditch, seed and cover of the crop at the same time, also suitable to the broomcorn,millet,soy bean and so on.
5.It is convenient to adjust the seeding rate, sowing width and row space.
| Model | 2BYF-2 | 2BYF-3 | 2BYF-4 | 2BYF-5 | 2BYF-6 |
| Overall Dimension | 1300*1620*1100 | 1700*1620*1100 | 2800*1620*1100 | 3000*1620*1100 | 3750*1620*1100 |
| (mm) | |||||
| Row Spacing (mm) | 500-700 | ||||
| Matched Power (hp) | 12 | 24-50 | 24-50 | 24-80 | 24-80 |
| Fertilizer Depth (mm) | 30-70 | ||||
| Fertilizer Colter Boot | furrower colter boot | ||||
| Seed Colter Boot | moldboard colter boot | ||||
| Seeding Depth (mm) | 30-50 | ||||
| Furrow Cover | Disc furrow cover | ||||
| Linkage | Mounted three-point linkage | ||||
| Type of Drive | land wheel—transmission | ||||
| Working Speed(km/h) | 5-7 | ||||
| Kind of sowing | Maize; soybean | ||||
| Weight (kg) | 110 | 160 | 200 | 250 | 300 |
Soy bean and Corn Seeder
Assessed Supplier:
WONDEE Company and Product Samples:
About Us :
WONDEE AUTOPARTS, located in Xiamen city,Fujian Province of China,has been supplying
a wide variety of trailers , semi-trailers , trucks and their chassis components since 1999 . From
2009,WONDEE has expanded the business to special steel , agricultural machinery parts &
wheel rim production line.
In 2003, we are certified to the standards of the ISO9001:2000 system, and in 2006, we are
certified to the ISO/TS16949 international system.
