Home > Products > New Products > Multi-purpose Cultivator Tiller Hand Garden Tools
Multi-purpose Cultivator Tiller Hand Garden Tools
- Chongqing port
- T/T Credit Card PayPal
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Diesel | Power(W) | 4.0 | |
| Certification | ISO9001&CE | Warranty | 12months | |
| Use | Farm cultivator | Place of Origin | Chongqing, China | |

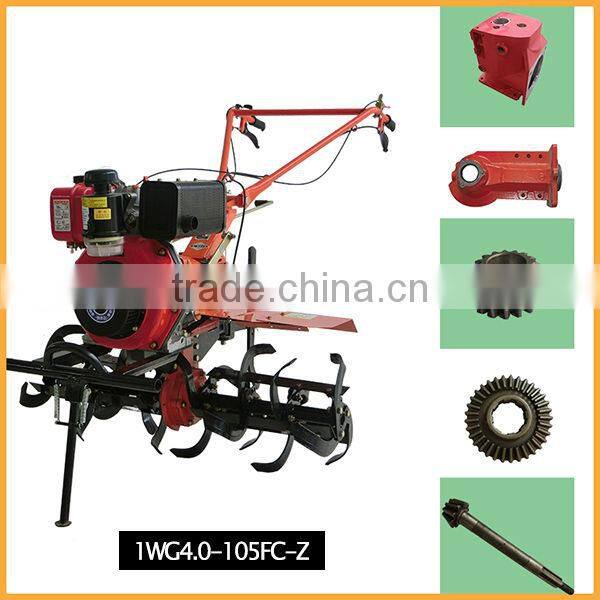

| Brand Name | QG | Model Number | 1WG4.0-105FC-Z | |
| Weight | 105KG | Dimension(L*W*H) | 1730*1050*800mm | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1 Quality and cheap power tiller2 Diesel engine, gear box driven
3 Mini type,easy control
4 12 months warranty
5 OEM&ODM
QG For Better Life!

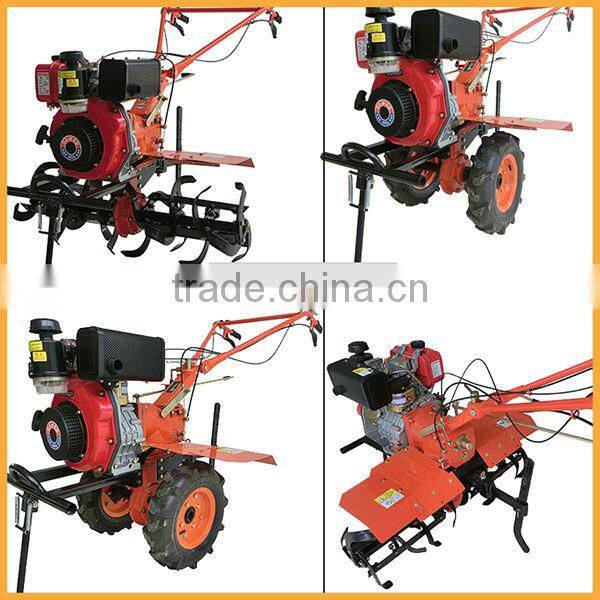

Multi-purpose cultivator tiller hand garden tools
* The reason why customers choose QG power tillers:
1, Driven by gearbox totally, which makes the tiller Low noise, reliable and efficient;
2, More cost-efficient because we produce the gears and gearbox by our own. Quality is controlled better as well;
3, Deep and fast soil tillage, due to the gear ratio, which allows to realize the output shaft high torque;
4, Original design of the parking position for easy installation of cutter / wheels and space-saving storage;
5, Hinged front support wheel for easy movement on the ground;
6, Stable and maneuverable in the work, due to the optimum balancing of weight, low center of gravity and a rigid structure;
7, Engines from leading manufacturers provide the reliability and resource of tiller
8, QG power tiller performs the maximum of agronomic operations: cultivation, hilling,ridging, ditching, deep tillage, plow,weeding,etc..
9, Apply to: Paddy field, dry land, farm, orchard,garden,sugarcane field, hills and so on.
10, 12 months guarantee
11, OEM & ODM available for the special demands.
Tiller | Model | 1WG3.6-100FC-ZC | 1WG4.0-105FC-ZC | 1WG6.3-135FC-ZC | 1WG3.8-100FQ-ZC |
Tilling width | 1000 mm | 1050 mm | 1350 mm | 1000 mm | |
Tilling depth | ≥100mm | ≥100mm | ≥100mm | ≥100mm | |
Transmission | Gear Drive | Gear Drive | Gear Drive | Gear Drive | |
Gear shifting | -1,0,1,2 | -1,0,1,2 | -1,0,1,2 | -1,0,1,2 | |
Tyre Model | One pair3.5-6 walking wheels | One pair4.0-8 walking wheels | One pair4.0-8 walking wheels | One pair3.5-6 walking wheels | |
Net Weight | 76kg | 105kg | 114kg | 70kg | |
Blade Type | 3-4 dry-land blade | 3-4 dry-land blade | 3-4 dry-land blade | 3-4 dry-land blade | |
Packing Model | Sea-worthy steel frame + carboard package | Sea-worthy steel frame + carboard package | Sea-worthy steel frame + carboard package | Sea-worthy steel frame + carboard package | |
Packing Dimension | 1600×1000×800mm | 1710×1050×800mm | 1730×1350×800mm | 1640×1000×800mm | |
Engine | Engine Model | CP170F diesel engine | CP178F diesel engine | CP186F diesel engine | 170F gasoline engine |
Engine Type | Horizontal, Single cylinder, forced air cooling, 4-stroke | Horizontal, Single cylinder, forced air cooling, 4-stroke | Horizontal, Single cylinder, forced air cooling, 4-stroke | Horizontal, Single cylinder, forced air cooling, 4-stroke | |
Starting Model | Recoil/electric start | Recoil/electric start | Recoil/electric start | Recoil/electric start | |
Rated power | 3.6kw | 4.0kw | 6.3kw | 3.8kw | |
Rated speed | 3600 r/min | 3600 r/min | 3600 r/min | 3600 r/min | |
Displacement | 227cc | 296cc | 418cc | 221cc | |
Fuel tank capacity | 2.5L | 3.5L | 5.5L | 3.6L |
About our company:
QG Tiller Manufacturing Ltd was established in 2009 and located in Chongqing, along with the Yangzi river. As a professional power tiller manufacturer, QG own a batch of well trained personnel to support it. After the effort of whole staff, now we have 3 centers: R&D center, Production center and the Marketing center. It means we design, produce and sell the tillers by ourselves.
Moreover, we have 2 factories, one is for power tiller and other farm machines, the other one is special for the gears and gearbox. We have more than 10 years experience on the gear and gearbox production, we not only use them on our machines, but also supply for other companies. For the automobile gear, we are the supplier of Chang'an, Bentz, etc. Thus, it makes our power tillers more competitive in the price and quality.
Because of the market-oriented policy, we always put the customer needs on the first place. we are happy to customize the special products according to the real demands. Also we are designing and introducing the new products: Generators, water pumps, engines, sprayers to meet the market demands.
Your satisfaction is what we always strive for, come to us we will show you our profession!
1, Are you Factory, and where is it?
QG: Yes. Our factory is located in Chongqing, along with Yangzi river. Welcome to visit.
2, What's your daily output?
QG: 300 sets/ day. If you need urgently, the trained workers of the joint company will help out.
3, Is sample available? And how about the delivery?
QG: Yes sample is available, 5-7 days will be shipped out after the order confirmed. For big order, it takes 10-15 days usually.
4, What is the MOQ?
QG: We suggest 1 20" container for shipping cost saving, but small order is also ok.
5, What is the warranty?
QG: 12 months warranty for whole product, except the quick-wear part.
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------
