Modern garden equipment in cultivators

Specifications

The tiller can be used in dry land,paddy field;garden and farm.It's convenient.

1WG3.8-100FQ-ZC

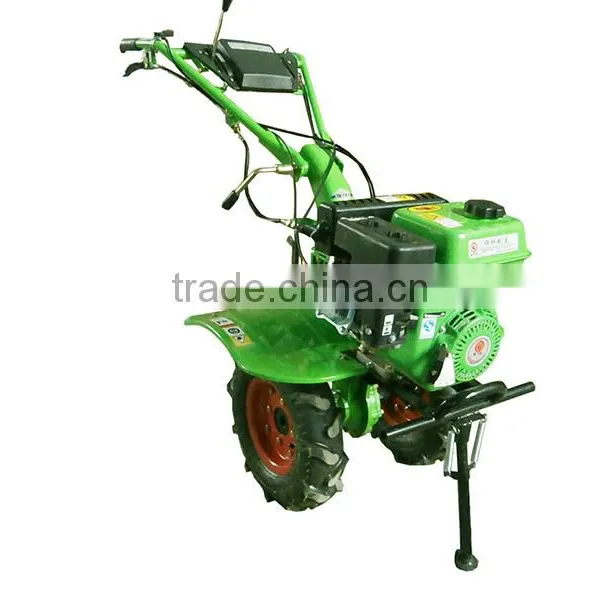

Micro tillage machine powered by small diesel or gasoline engine, it has advantages such as light weight, small volume, simple structure and so on. Micro tillage machine is widely applicable to the original, the dry land of mountains, hills, paddy field, orchard, etc. Micro tillage machine can free walking in the field, making it easy for users to use and store, is the best choice for customers.

Detailed Data:

Model		1WG3.8-100FQ-ZC
Structure Form		prefixal
Main Clutch Mode		Flake Friction
Transmission		Gear Drive
Gear Shifting		0,1,2,-1
Engine	Brake Specific Fuel Consumption(kg/hm2)	≤35
	Engine Mode	170F Gasoline Engine
	Engine Type	Force-Air Cooling,4-Stroke,OHV Single-cylinder Inclined 24 Degree
	Bore×Stroke	70×55
	Fuel Tank Capacity(L)	3.6
	Max Power(KW)	3.8
	Straing Method	Manually
	Displacement	0.211
	Oil Capacity	0.6
	Net Weight	60
	Revolving Speed(r/min)	3600
	Fuel	90#
Knife Roll	Speed(r/min)	Fast:130;Low:100
	Maximum Turning Radius(mm)	180
	Total Number of Installed Knife	24
Rotary Tillage Blade Model		Type of Dryland Farming Knife
Tilling Depth(mm)		≥100
Tilling Width(mm)		1000
Net Weight(kg)		70
Work Velocity(m/s)		0.1~0.3
Productivity(hm2/(h.m))		≥0.04
Dimension(mm)		1640×1000×800



the Advatages of Our Productions:

1.Energy-saving,high efficiency and low noise,

2.Easy operation,

3.Fashion and mini design,

4.The price is reasonable and competitive,

5.The quality is good.



Pictures show:



The Test for Our Productions:



Our Company:
