Home > Products > Power tiller > 2014 Popular Rotary Tillage Machine Garden Tiller
2014 Popular Rotary Tillage Machine Garden Tiller
- Chongqing Port
- T/T L/C D/P D/A
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Gasoline | Power(W) | 3.8KW | |
| Certification | ISO9001 | Warranty | 18 months | |
| Use | Cultivators for farm and garden | Place of Origin | Chongqing, China | |
| Brand Name | QG | Model Number | 1WG3.8-100FQ-ZC | |
| Weight | 70KG | Dimension(L*W*H) | 1640*1000*800MM | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
The tiller can be used in dry land,paddy field;garden and farm.It's convenient.1WG3.8-100FQ-ZC
Micro tillage machine powered by small diesel or gasoline engine, it has advantages such as light weight, small volume, simple structure and so on. Micro tillage machine is widely applicable to the original, the dry land of mountains, hills, paddy field, orchard, etc. Micro tillage machine can free walking in the field, making it easy for users to use and store, is the best choice for customers.
Detailed Data:
| Model | 1WG3.8-100FQ-ZC | |
| Structure Form | prefixal | |
| Main Clutch Mode | Flake Friction | |
| Transmission | Gear Drive | |
| Gear Shifting | 0,1,2,-1 | |
| Engine | Brake Specific Fuel Consumption(kg/hm2) | ≤35 |
| Engine Mode | 170F Gasoline Engine | |
| Engine Type | Force-Air Cooling,4-Stroke,OHV Single-cylinder Inclined 24 Degree | |
| Bore×Stroke | 70×55 | |
| Fuel Tank Capacity(L) | 3.6 | |
| Max Power(KW) | 3.8 | |
| Straing Method | Manually | |
| Displacement | 0.211 | |
| Oil Capacity | 0.6 | |
| Net Weight | 60 | |
| Revolving Speed(r/min) | 3600 | |
| Fuel | 90# | |
| Knife Roll | Speed(r/min) | Fast:130;Low:100 |
| Maximum Turning Radius(mm) | 180 | |
| Total Number of Installed Knife | 24 | |
| Rotary Tillage Blade Model | Type of Dryland Farming Knife | |
| Tilling Depth(mm) | ≥100 | |
| Tilling Width(mm) | 1000 | |
| Net Weight(kg) | 70 | |
| Work Velocity(m/s) | 0.1~0.3 | |
| Productivity(hm2/(h.m)) | ≥0.04 | |
| Dimension(mm) | 1640×1000×800 | |
the Advatages of Our Productions:
1.Energy-saving,high efficiency and low noise,
2.Easy operation,
3.Fashion and mini design,
4.The price is reasonable and competitive,
5.The quality is good.
Our Production:
The Test for Our Productions:

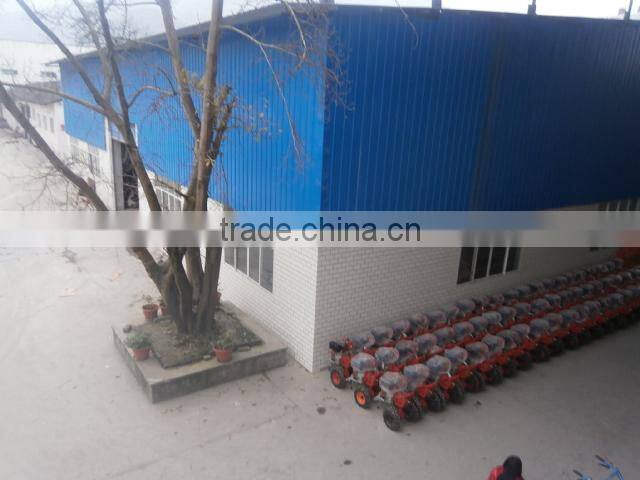

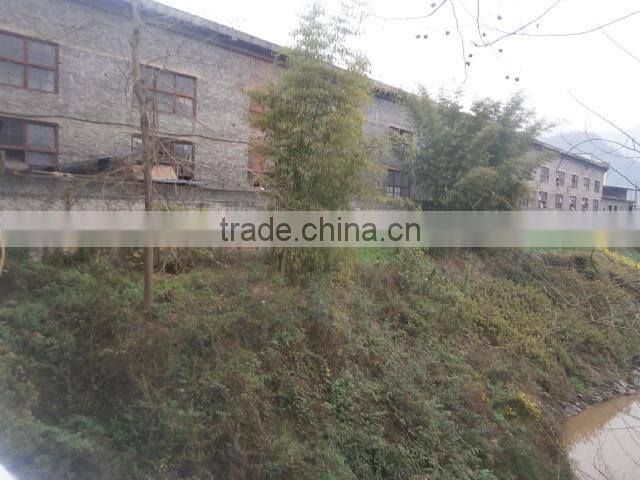

Our Company:
Contact Us
- Chongqing Qg Tiller Manufacturing Co., Ltd.
- Contact nameCherry Chow Chat Now
- Phone86-023-13983282540
- Address(Shuangshi Industry Park) 3 Jinzhu St., Yudong
