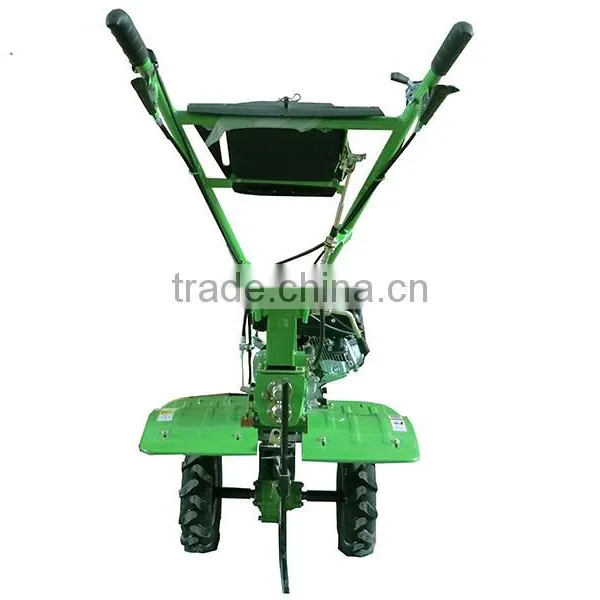

Garden tiller rotavator made in Chongqing city

Specifications

This kind of machine is widely used in the farming of the field and garden.it's a good choice for customers to help them working

1WG3.8-100FQ-ZC

This kind of machine is popular in customers,it can be used in many kinds of place,such as dry land,paddy field,garden and so on,becuse it's rotary knife can be replaced.



Detailed Data:

Model		1WG3.8-100FQ-ZC
Structure Form		prefixal
Main Clutch Mode		Flake Friction
Transmission		Gear Drive
Gear Shifting		0,1,2,-1
Engine	Brake Specific Fuel Consumption(kg/hm2)	≤35
	Engine Mode	170F Gasoline Engine
	Engine Type	Force-Air Cooling,4-Stroke,OHV Single-cylinder Inclined 24 Degree
	Bore×Stroke	70×55
	Fuel Tank Capacity(L)	3.6
	Max Power(KW)	3.8
	Straing Method	Manually
	Displacement	0.211
	Oil Capacity	0.6
	Net Weight	60
	Revolving Speed(r/min)	3600
	Fuel	90#
Knife Roll	Speed(r/min)	Fast:130;Low:100
	Maximum Turning Radius(mm)	180
	Total Number of Installed Knife	24
Rotary Tillage Blade Model		Type of Dryland Farming Knife
Tilling Depth(mm)		≥100
Tilling Width(mm)		1000
Net Weight(kg)		70
Work Velocity(m/s)		0.1~0.3
Productivity(hm2/(h.m))		≥0.04
Dimension(mm)		1640×1000×800



he Advantages of Our Productions:

1.Energy-saving, high effiency and low noise,

2.Easy starting diesel engine,

3.Mini and small design,

4.Easy operation,

5.Strict quality control system,

6.Reasonable and competitive price,

7.Toughtful after-sales service.



Our Testing for Our Productions:







Our Production Line:
