Specifications
1,Popular gasoline mini tiller2,Control conveniently
3,Good for large farm or small garden
4,Multiple attachments available

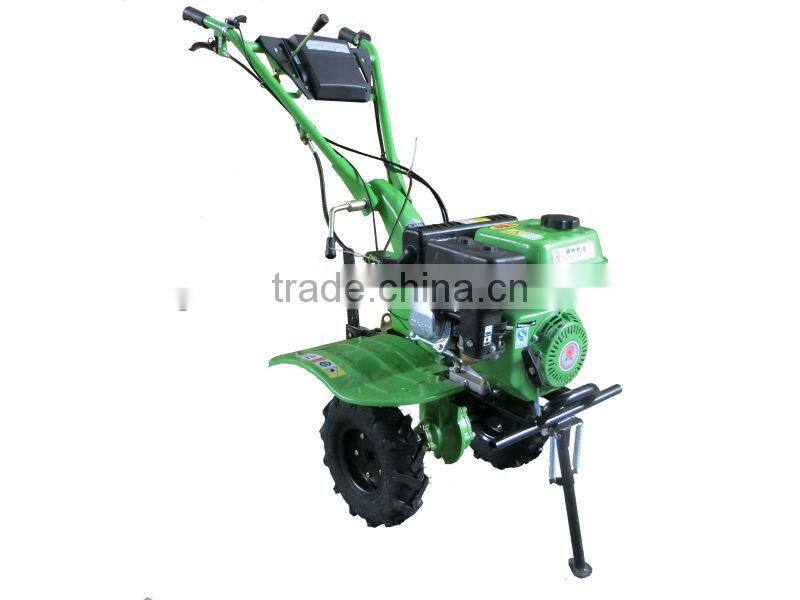

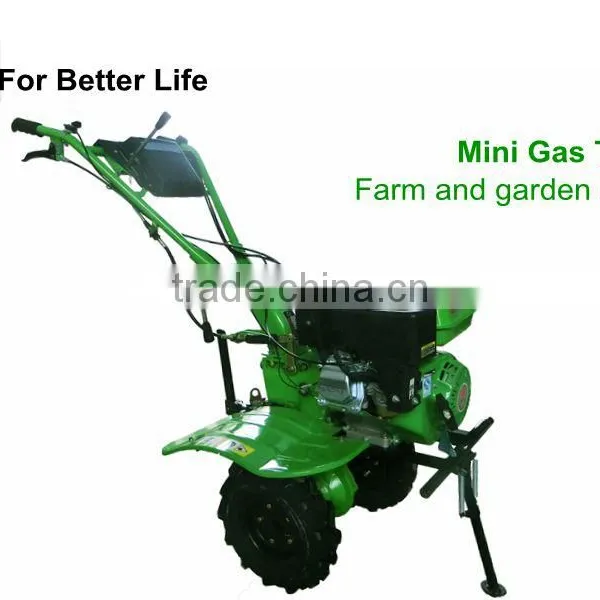

1WG3.8-100FQ-Z Gasoline mini tiller
1WG3.8-100FQ-Zis a mini and light gasoline mini tiller. It applies to the farming for mountain, dry land, paddy field, vegetable field and garden.
Features:
1, Energy-saving, high effiency and low noise
2, Easy starting diesel engine
3, 1000mm tilling width
4, Optional rotary knives for different applications
5, Gear shifting for fast and slow.
6, Device for emergency stop is available
7, Operation floor is optional according to the real demand
8, Light-weight, and use easily even for women
Specification:
No. |
Name |
Unit |
Specification |
|
1 |
Model |
/ |
1WG3.8-100FQ-Z |
|
2 |
Structure |
/ |
For-ward |
|
3 |
Engine |
170F air-cooled gasoline engine |
||
4 |
Dimension(L*W*H) |
mm |
1460×1000×800 |
|
5 |
Weight |
kg |
105 |
|
6 |
Color |
|
Orange, red, green, blue |
|
7 |
Transmission Drive |
/ |
Gear Drive |
|
8 |
Connection |
/ |
Direct act |
|
9 |
Handlebar adjustment |
Horizontal |
Degree |
180 |
Vertical |
180 |
|||
10 |
Knife roll |
Rotate speed |
r/min |
Fast :130;Slow:110 |
Max radius of gyration |
mm |
180 |
||
Total knives installed |
/ |
32 |
||
11 |
Rotary tillage knife |
/ |
II Dry land farming knife |
|
12 |
Main clutch |
/ |
Fraction |
|
13 |
Tilling width |
mm |
1050 |
|
14 |
Tilling depth |
mm |
≥100 |
|
15 |
Fuel Capacity |
L |
3.6 |
|
16 |
Lube capacity |
L |
0.6 |
|
17 |
Productivity |
hm2/(h·m) |
≥0.04 |
|
18 |
Fuel consumption |
kg/hm2 |
≤30 |
|

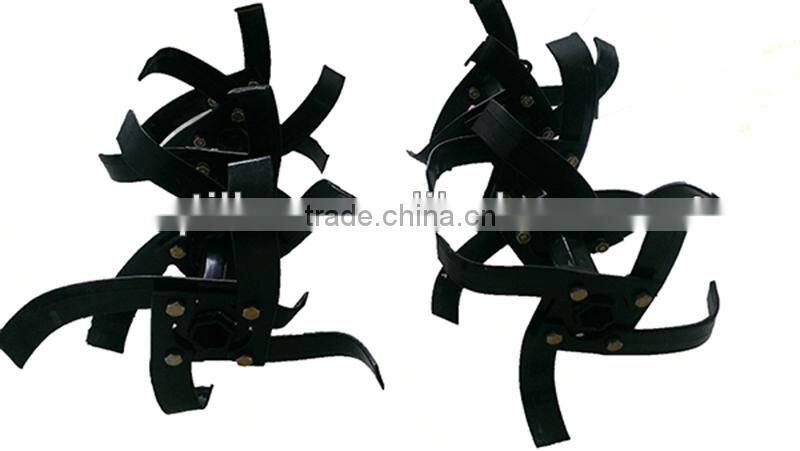

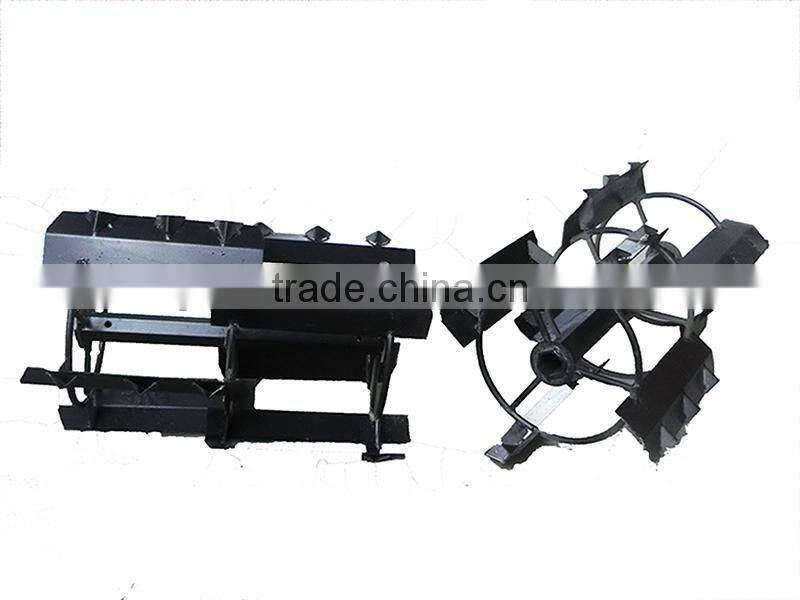

Standard knife equipments:

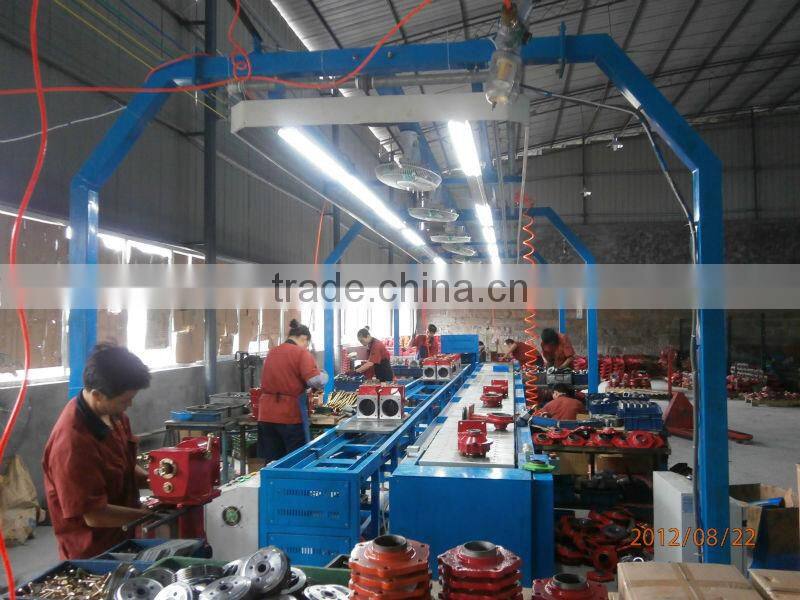

Product line:
Real Experience:
