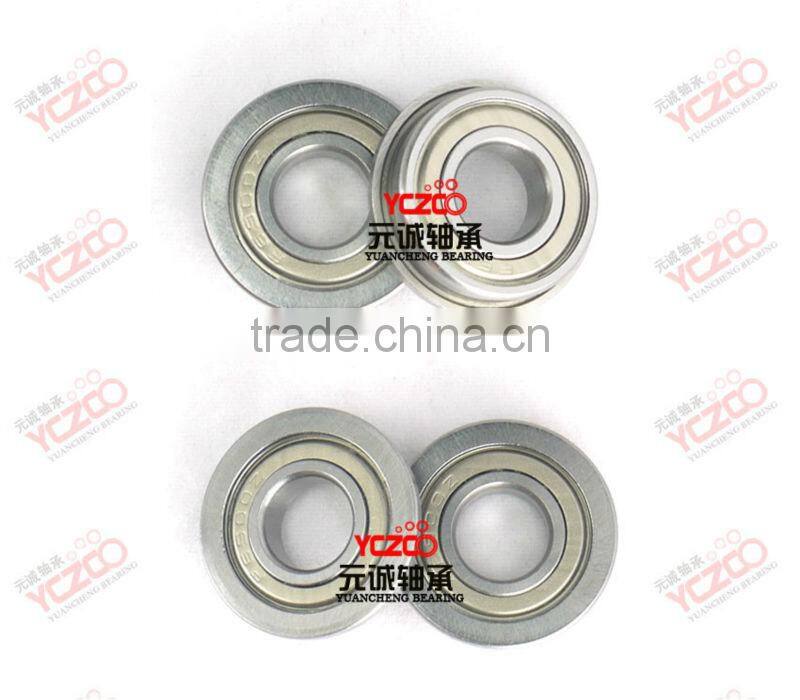

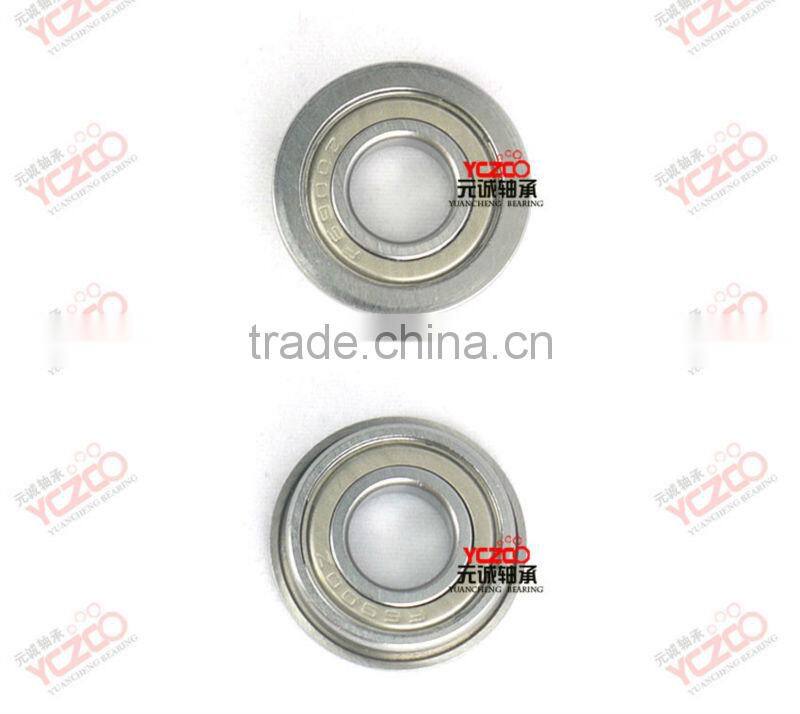

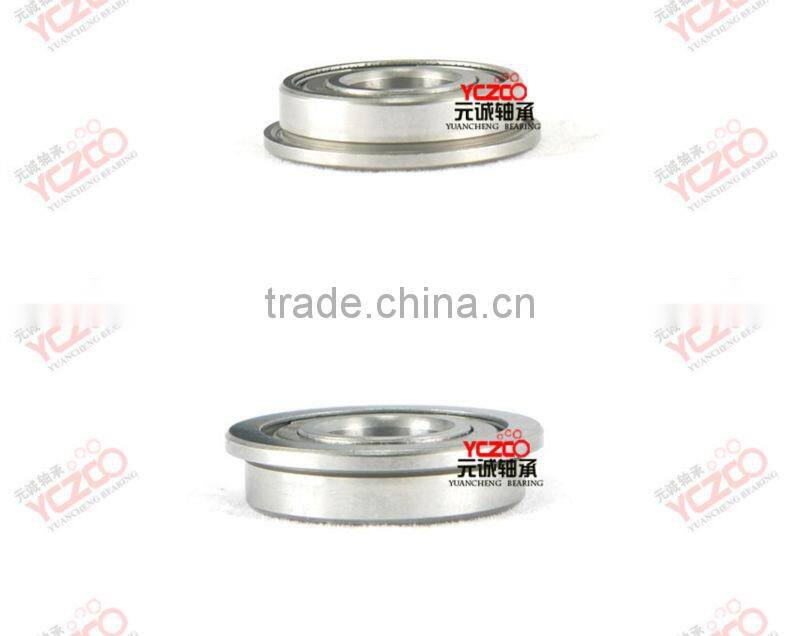

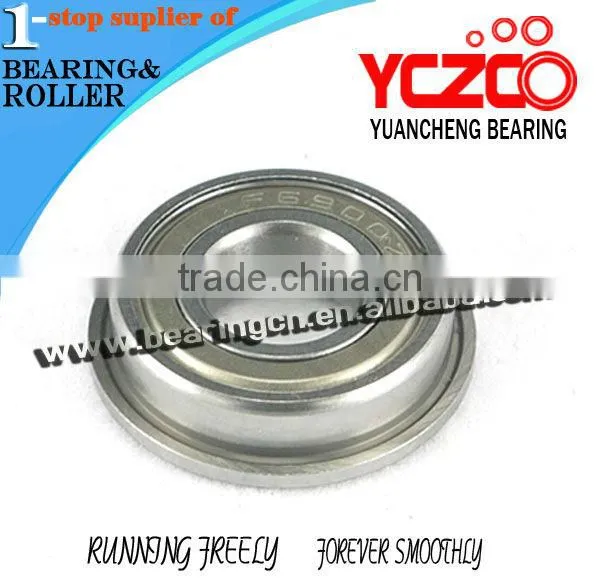

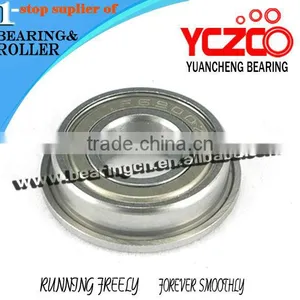

F6900 Flanged Bearing

Specifications

Material

carbon steel   It is characterized by its low price and not asking too much for applications,so it is highly appreciated by the vast number of merchants. It is widely used in household appliances, electrical tools, pneumatic tool , textile machines,medical instruments,sport equipment,office furniture, packing machine, fishing gear,toys,sliding doors and windows,etc.

High - carbon steels are being called the " hard ",which possess excellent wear resistance ,strength ,rigidity, good elastic and fatigue limit(especially the notch fatigue limit).

 Medium- carbon steel has higher rigidity but lower deformation and toughness compare with low- carbon steel.

Low- carbon steel It is characteristic of low strength and rigidity,good deformation and toughness.

 Chrome steel Chrome steel has feature of tensile.fatigue,wear resistance , high rigidity and great toughness.It can meet the requirements of corrosion and high - temperature resistance under certain conditions.

             Vacuum degassed Chrome steel GCR15 is a type of standard material for producing accurate inner ring,outer ring and ball.This material is in conformity with the specifications of AISL 52100(America),DIN100Cr6(German) and JISSUJ2(Japan).As there are less interferences from impurities, significantly extending the life span and   effectively improving the bearing’s torque and noise reduction property.

Stainless steelCompare with the ordinary Chrome steel,the Stainless steel has more advantages such as it has great rigidity and better rust and corrosion resistance.Work environment: getting appropriate lubricants,shields,etc.It

 can be used in -60°C~+300°C.

Ceramics Heat ,wear, corrosion resistant, insulated,anti – electromagnetic, anti - moisture , high rotation speed,etc.Especially it is to the atrocious conditions. The contexts of usage is cover various fields, aviation, voyage,oil, chemical,car,electronic equipment,textile,medical equipment,instruments,toys,etc.

 structrue

Bearing ringDimension tolerance , geometric tolerances,and surface quality of bearing’s working surface will influent the operating noise. YCZCO adopts precision CNC machining ,to dimension precision, geometric tolerances , design drawing , mold making , grinding,cleaning, assembly ,testing,every link of strict checks.Which is to ensure all our products

 are tested by our strict criteria.

Ball  The balls evenly with by the cage,often make rolling movement

between 2 rings.The shape,size and number will directly influent bearing’s load tolerance and operating capability We use high precision, small vibration steel ball.It’s surface must be strengthened, no bumps scratches, lacerations, pitting and notch.

Cage Enclose and move with all or part of the balls.It also be used to insulate the balls,

guide the balls’movement and to improve lubrication performance inside the bearing.,etc.

YCZCO’s cage is commonly made of cold rolling carbon steel.But in the corrosiveness environment ,nonparallel or high - speed situation,stainless steel,engineering plastics cage

can be decided on request.

ShieldYCZCO’s shield,taking the carbon steel material, if necessary,

taking stainless steel or other material.

Seal YCZCO adopt different kind of seal material to meet the requirement of their

operating in high temperature and being compatible with grease. Acrylonitrile-butadiene r

ubber is our standard material.but in high temperature environment ,often adopt fluorocarbons, silicone , PTFE shield.

Grease The shield and seal were filled with standard grease.We can use different

grease as request.

  technological parameters

 Bearing precisionThese deep groove ball bearing precision have been graded according to the standard .The precision is increase from the left to right in the form below.

Radial clearanceThe inner ring’s relative distance move in the axial direction.Deep grove ball bearing is divided into 5group according our national standards GB/T4604-1993.The radial clearance have an important effect on the bearing operation , noise ,adiabatic expansion and the amplitude  of the vibration.

 Vibration and vioceVibration and voice of the bearing are divided into Z,Z1,Z2,Z3,Z4, instruments ,it can be measure by S0910-1 instruments .If special requirement ,BVT-1 instruments can be used to divided it into V,V1,V2,V3. Data appearing as follows.

        The  maximum vibration acceleration of a single bearing.

        Our advantages

1.Yuan Cheng is a one-stop supplier of miniature bearings and rollers, which is the industry's most comprehensive category of manufacturing enterprises.

2.Enjoys a perfect geographic location: Our factory is located in the home of small motor – Fuan City,Fujian province.Marketing headquarters is located in the foshan city,Guangdong Province.Treasure island Taiwan facing each other across the sea.It’s also China's largest private shipbuilding base, China's bigger steel market base.

3.good production supply chain, advanced equipment and mature techniques.

4.Professional supplier: We have ten years experience in manufacturing bearings, emphasis on commitment, focus on quality, the pursuit of high-quality cost-effective.

5.OEM  and ODM is available.

6. Productivity: Our annual output reaches 5000000 sets.Large-scale production, to ensure that our company strong goods supply and distribution capacity.

7. Model, specifications,the widest range can be customized according to customer demand forprocessing.

Thank's your  visist to our website!
