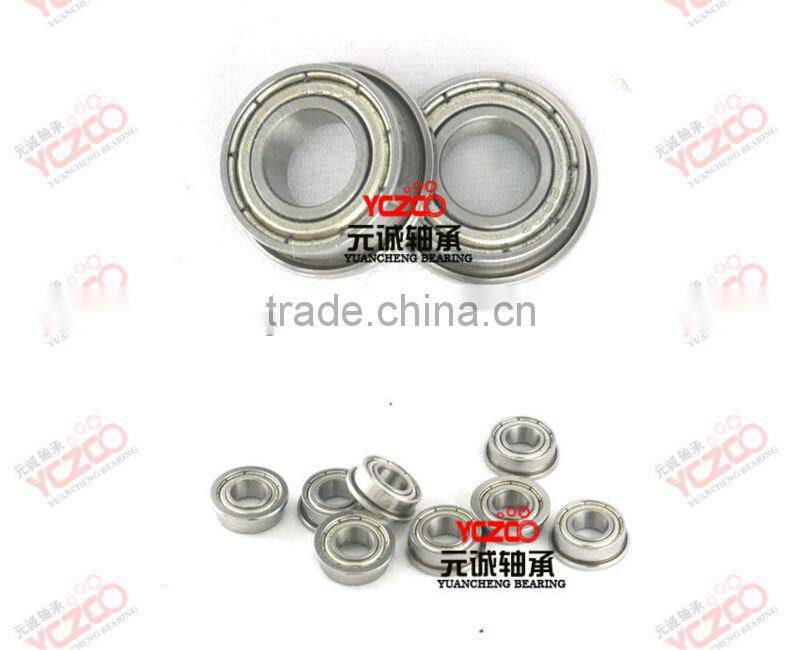

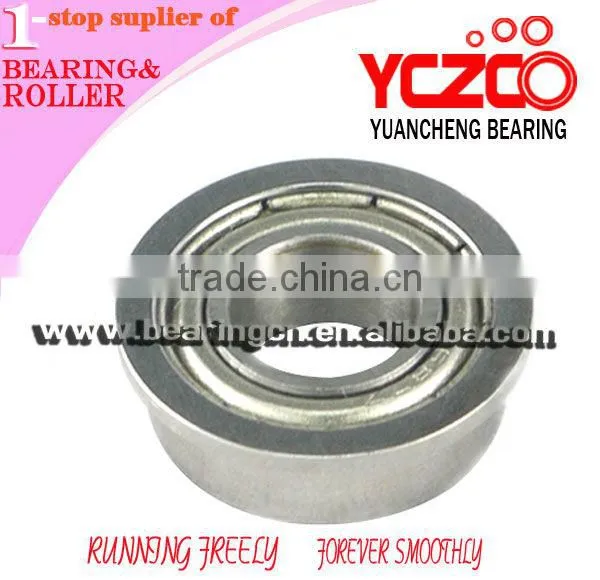

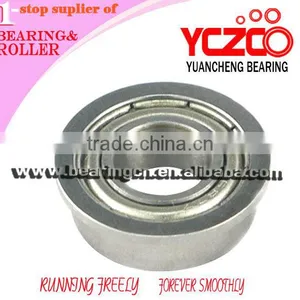

miniature bearing / F687 factory flange ball bearing

Specifications

factory flange ball bearing details

      miniature bearing / F687 factory flange ball bearing

• Brand Name: YCZCO
• Model Number:  F687
• Seal type: ZZ
• Material:  carbon/ chrome steel
• Dust cover material:  iron cover

factory flange ball bearing specification

1.     good quality
2.     excellent running properties
3.      low noise
4.      long life performance
5.     precise dimension
6.     high precision grinding
7.     efficient mute
8.     high speed
9.     reliable

Deep groove ball bearings

1) deep groove ball bearing

2) cheap ball bearing

3 )manufacture factory

4) ISO 9001:2008

5) can OEM service

6 )small order accept

7 )high quality and low noise bearing

Material of ball bearing

Carbon steel  It is characterized by its low price and not asking too much for applications, so it is highly appreciated by the vast number of merchants. It is widely used in household appliances, electrical tools, pneumatic tool, textile machines, medical instruments, sport equipment, office furniture, packing machine, fishing gear, toys, sliding doors and windows, etc.

High - carbon steels are being called the " hard ",which possess excellent wear resistance ,strength ,rigidity, good elastic and fatigue limit(especially the notch fatigue limit).

Medium- carbon steel has higher rigidity but lower deformation and toughness compare with low- carbon steel.

Low- carbon steel It is characteristic of low strength and rigidity, good deformation and toughness.

Chrome steel Chrome steel has feature of tensile. fatigue, wear resistance , high rigidity and great toughness. It can meet the requirements of corrosion and high - temperature resistance under certain conditions. Vacuum degassed Chrome steel GCR15 is a type of standard material for producing accurate inner ring, outer ring and ball. This material is in conformity with the specifications of AISL 52100(America),DIN100Cr6(German) and JISSUJ2(Japan).As there are less interferences from impurities, significantly extending the life span and   effectively improving the bearing’s torque and noise reduction property.

Stainless steel Compare with the ordinary Chrome steel, the Stainless steel has more advantages such as it has great rigidity and better rust and corrosion resistance. Work environment: getting appropriate lubricants, shields, etc. It can be used in -60°C~+300°C.

Ceramics Heat ,wear, corrosion resistant, insulated, anti – electromagnetic, anti - moisture , high rotation speed, etc. Especially it is to the atrocious conditions. The contexts of usage is cover various fields, aviation, voyage, oil, chemical, car, electronic equipment, textile, medical equipment instruments, toys, etc.

Structrue of ball bearing

Bearing ring Dimension tolerance, geometric tolerances, and surface quality of bearing’ s working surface will influent the operating noise. YCZCO adopts precision CNC machining ,to dimension precision,  geometric tolerances , design drawing , mold making , grinding, cleaning,  assembly ,testing, every link of strict checks. Which is to ensure all our products are tested by our strict criteria.

Ball  The balls evenly with by the cage, often make rolling movementbetween 2 rings. The shape, size and number will directly influent bearing’s load tolerance and operating capability We use high precision, small vibration steel ball. It’s surface must be strengthened, no bumps scratches, lacerations, pitting and notch.

Cage Enclose and move with all or part of the balls. It also be used to insulate the balls, guide the balls’ movement and to improve lubrication performance inside the bearing., etc. YCZCO’s cage is commonly made of cold rolling carbon steel. But in the corrosiveness environment ,nonparallel or high - speed situation,stainless steel, engineering plastics cagecan be decided on request.

ShieldYCZCO’s shield, taking the carbon steel material, if necessary,taking stainless steel or other material.

Seal YCZCO adopt different kind of seal material to meet the requirement of their operating in high temperature and being compatible with grease. Acrylonitrile-butadiene rubber is our standard material. but in high temperature environment ,often adopt fluorocarbons, silicone , PTFE shield.

Grease The shield and seal were filled with standard grease. We can use differentgrease as request.

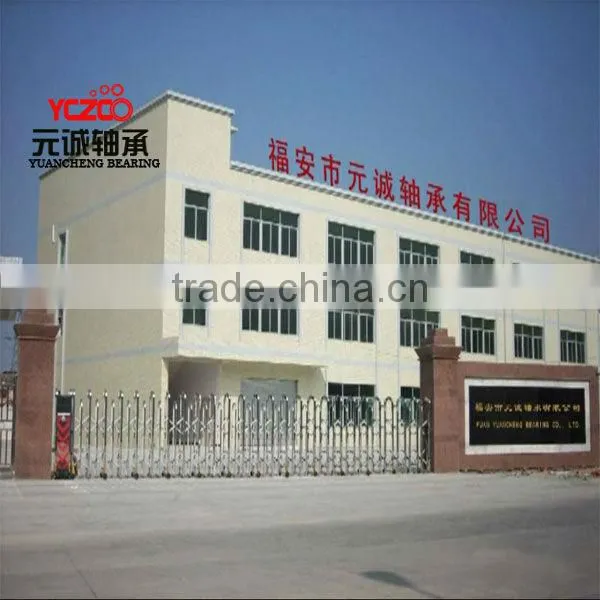

Our Factory:

  Yuancheng bearing Co., LTD is founded in 2004, which is located in Fuan City, Fujian Province. And the distribution headquarter is located in Nanhai District, Foshan City, Guangdong Province. We are the professional factory specialized in miniature deep groove ball bearing and roller.

  Our factory put to use advanced modern producing equipment and a complete set of testing facilities to ensure high quality bearings. Our product widely used in sliding door and window, furniture accessories, ports equipment, toys, machinery and other fields.

NOTE: All products are selling from factory directly ,We would allow you a quantity discount,so please contact  me when you gonna make a order,we will reply ASAP.

Thanks for your attention, have a good day.
