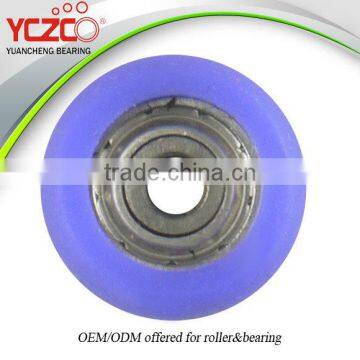

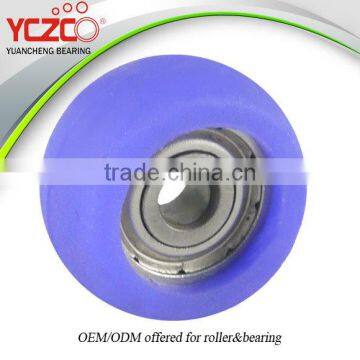

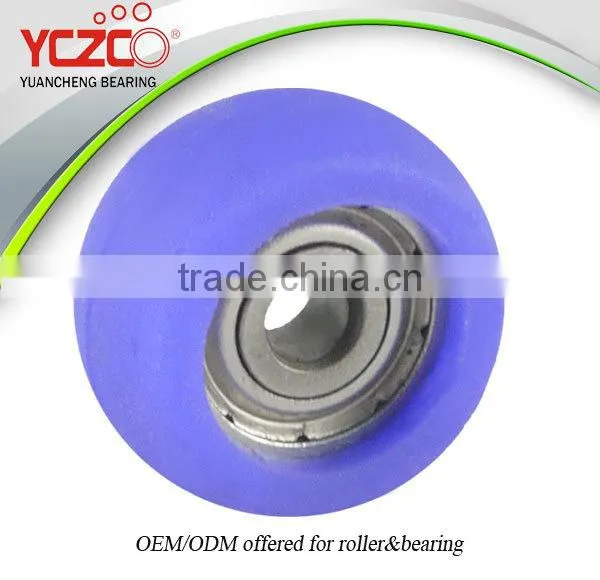

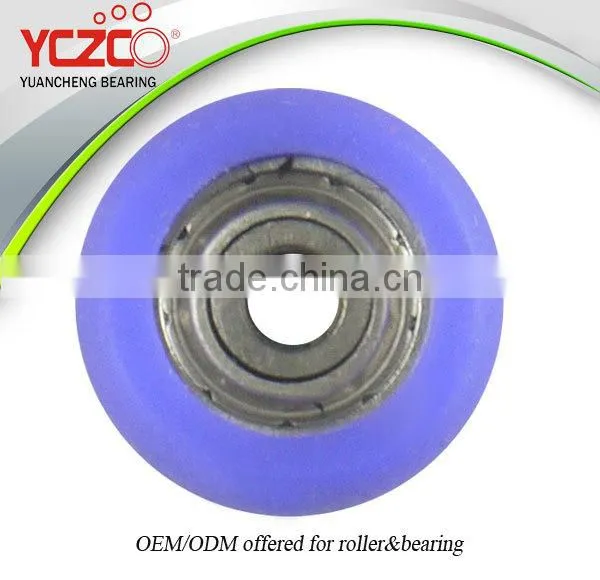

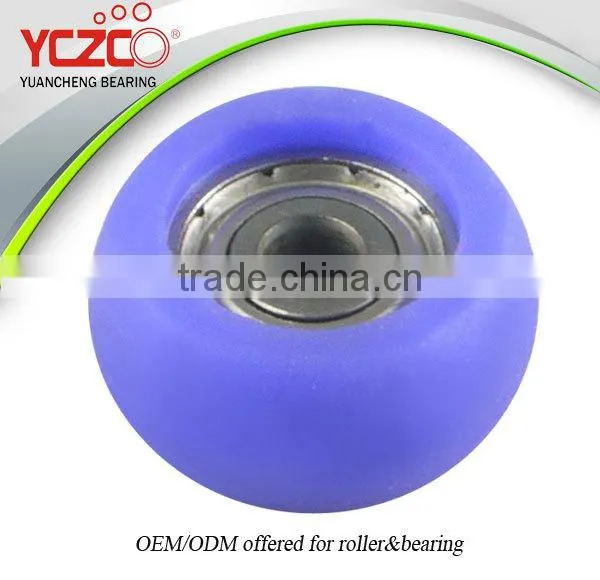

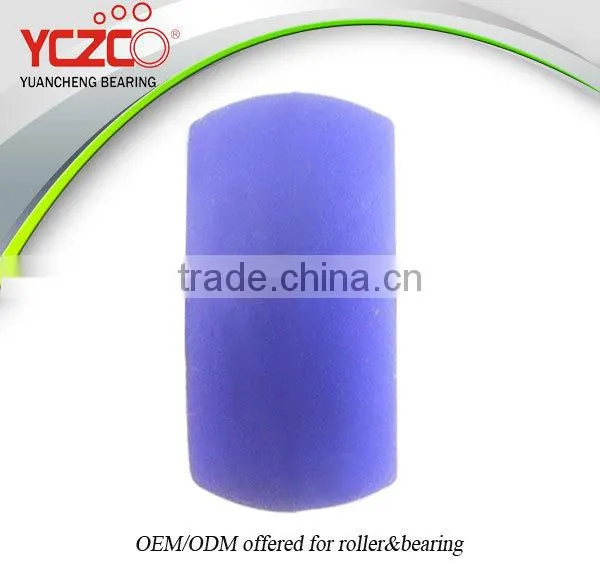

miniature ball bearing 623zz sliding wheel used for door

1.Product detail

 miniature ball bearing 623zz sliding wheel used for door

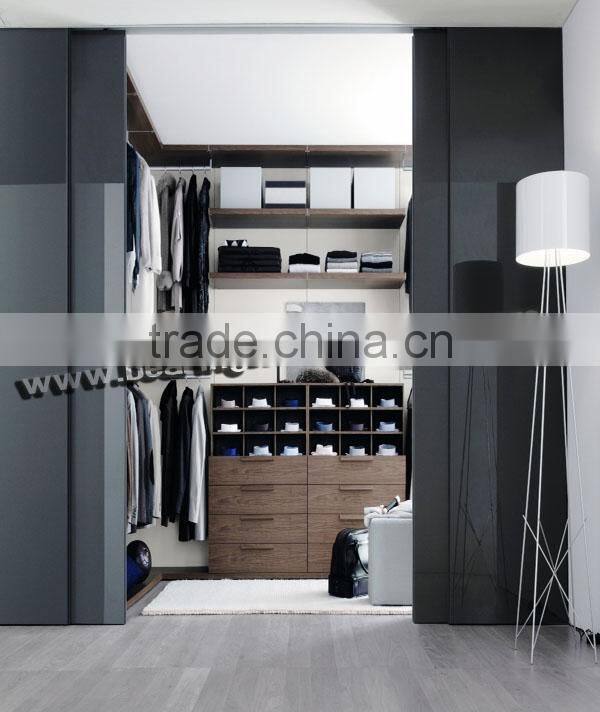

2.About wardrobe roller

Wardrobe roller:The most important part of  Sliding wardrobe door to load the

stress is roller, which bear the whole stress of the door  .So the high quality

wardrobe door roller’s material is nylon. At the same time, the surface of nylon

must be smooth.  Our wardrobe roller’s material is fiber glass and nylon, which

can decrease the noise when moving and be long-life. A roller contain bearing

and plastic. The tolerance temperature is -20°C~120°C.

3.How to choose bearings?

Usually these factors should be considered: the bearing size and direction of

the load, the nature of the bearing load, self-aligning performance requirements, bearing rigid requirements, bearing performance requirements, the speed of

the bearing working environment temperature requirements and some other

aspects such as the requirement of bearing axial winding, restrictions on the

size of bearing appearance, installation and dismantling is convenient, the

requirement of thebearing seal and the friction torque, vibration and noise, etc

4.Our service

5. About oil and grease

Oils – maintain their consistency well over a wide temperature range and are easy to

apply. For very low torque applications, a light instrument oil should be specified. Higher running speeds are possible with oil but the obvious drawback with oil is the fact that it

tends not to stay in place.

Greases – are simply oils mixed with a thickener to so that they stay inside the bearing. Greases are generally more suitable for heavy loads and have the obvious advantage of

giving constant lubrication over a long period without maintenance.

Bearing ring Dimension tolerance, geometric tolerances, and surface quality of bearing’ s working surface will influent the operating noise. YCZCO adopts precision CNC machining ,to dimension precision,  geometric tolerances , design drawing , mold making , grinding, cleaning,  assembly ,testing, every link of strict checks. Which is to ensure all our products are tested by our strict criteria.

Ball  The balls evenly with by the cage, often make rolling movement between 2 rings. The shape, size and number will directly influent bearing’s load tolerance and operating capability.We use high precision, small vibration steel ball. It’s surface must be strengthened, no bumps scratches, lacerations, pitting and notch.

Cage Enclose and move with all or part of the balls. It also be used to insulate the balls, guide the balls’ movement and to improve lubrication performance inside the bearing., etc. YCZCO’s cage is commonly made of cold rolling carbon steel. But in the corrosiveness environment ,nonparallel or high - speed situation,stainless steel, engineering plastics cagecan be decided on request.

Shield YCZCO’s shield, taking the carbon steel material, if necessary,taking stainless steel or other material.

Seal YCZCO adopt different kind of seal material to meet the requirement of their operating in high temperature and being compatible with grease. Acrylonitrile-butadiene rubber is our standard material. but in high temperature environment ,often adopt fluorocarbons, silicone , PTFE shield.

Grease The shield and seal were filled with standard grease. We can use different grease as requested.

6.Transaction process

7.Sealing types:

RS, 2RS; With one or two side metal shields Z and ZZ.

OPEN :each side have no shield and seal

RS :contact seal on one side of the bearing

2RS:contact seals on both sides of the bearing

Z :shield on one side of the bearing

ZZ: shields on both sides of the bearing

8.About us

   Yuancheng bearing Co,. Ltd is founded in 2004, a professional industry producing miniature deep groove ball bearing. With the advanced equipment and mature technology, our products have high precision and high reliability. Our annul output

has reached 50 millions sets.

    "With a good dream, however difficult it is, never give up" We are being prepared

for danger in times of peace and march forward courageously ,crossed the initial business process. There will be a road which is full of difficulty, however we have enough confidence to achieve our ambitious goals.

9.packing and shipping

Welcome to contact us:

Customer satisfaction

We will supply our best price and customer service for you, Thanks for visiting our website, if you have any question, please do not hesitate to contact us. We warmly welcome every new and old customers' email or phone call.
