duct detail

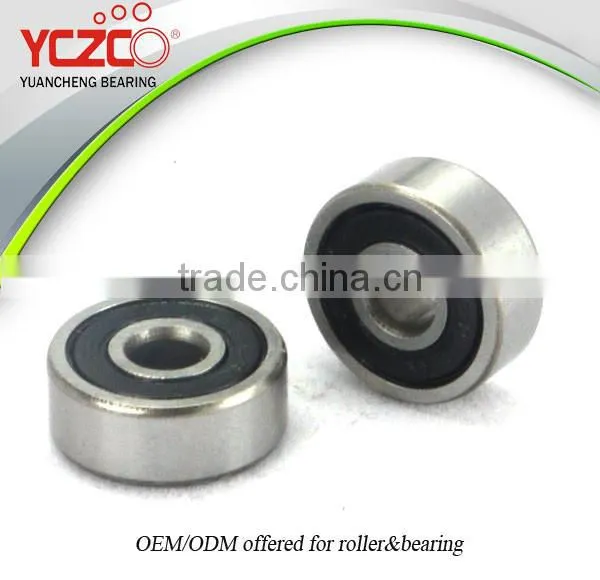

nylon door roller bearing/china carbon bearing/sliding door bearing
Brand |
YCZCO |
||
Model |
ball bearings |
||
Precision |
P0,P5,P6,P4 |
||
Clearance |
C0,C2,C3,C4,C5 |
||
size |
4*13*5mm |
||
cage type |
brass;steel plate,nylon,aluminium alloy etc. |
||
seal type |
open,sealed(ZZ,RS,2RS) |
||
features |
(1)Long-life with high quality (2)Low-noise with strict controlling (3)High-load ,high-technical design (4)Competitive price, which is most valuable (5)OEM service offered, to meet the customers requirements |
||
application |
Sliding window ,sliding door ,shower room ,furniture caster, wardrobe door |
||
package |
pallet, wooden case, commercial packaging or as customers' requirement |
||
price terms |
FOB |
delivery time |
15-30 days according the quantity |
2.Ball bearing structure
Bearing ring Dimension tolerance, geometric tolerances, and surface quality of bearing’ s working surface will influent the operating noise. YCZCO adopts precision CNC machining ,to dimension precision, geometric tolerances , design drawing , mold making , grinding, cleaning, assembly ,testing, every link of strict checks. Which is to ensure all our products are tested by our strict criteria.
Ball The balls evenly with by the cage, often make rolling movementbetween 2 rings. The shape, size and number will directly influent bearing’s load tolerance and operating capability We use high precision, small vibration steel ball. It’s surface must be strengthened, no bumps scratches, lacerations, pitting and notch.
Cage Enclose and move with all or part of the balls. It also be used to insulate the balls, guide the balls’ movement and to improve lubrication performance inside the bearing., etc. YCZCO’s cage is commonly made of cold rolling carbon steel. But in the corrosiveness environment ,nonparallel or high - speed situation,stainless steel, engineering plastics cagecan be decided on request.
Shield YCZCO’s shield, taking the carbon steel material, if necessary,taking stainless steel or other material.
Seal YCZCO adopt different kind of seal material to meet the requirement of their operating in high temperature and being compatible with grease. Acrylonitrile-butadiene rubber is our standard material. but in high temperature environment ,often adopt fluorocarbons, silicone , PTFE shield.
Grease The shield and seal were filled with standard grease. We can use differentgrease as request
3.Packaging and shipment
packaging
1)industrial packaging |
Plastic bag > Paper carton Poly tube >Wooden Pallet |
2)as customer requirement | |
Our packing is strong enough and safe for transport and shipment.
shipment
Transportation of goods may take place by road railwayair or combined ways, etc.
The mode of transportation depends on you as long as it is convenient for you.
4.Our service
Customer service |
Any question will be welcome ,we will answer you asap . |
Lead time |
1.Sample lead time:7-15 working days 2.Order lead time:45 working days(sample avaliable) |
Transit time |
1.Express:DHL,FedEX,UPS 2.By sea: required shipping company or by us 15 days or more |
Receiver’s signature |
If you find the receipt is not intact, please contact us |
After-sale service |
If you find the product is abnormal, contact us and we will try to solve it |
|
Other service
|

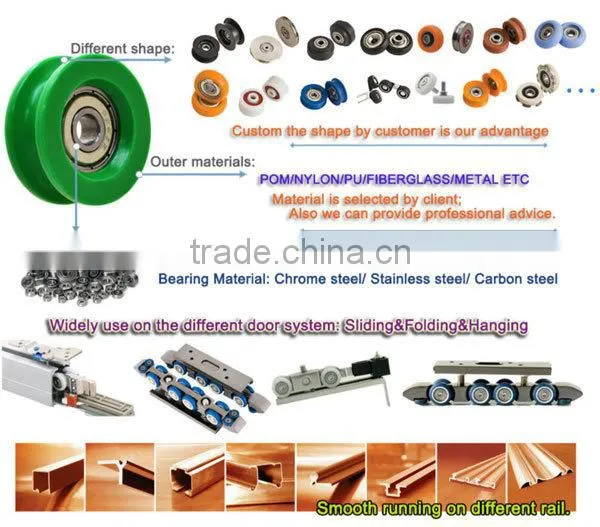

Material and color can be free to choose (option: POM, nylon, glass fiber, etc) OEM offered for injection molding roller and non-standard bearing |
5.ball bearing oil &grease
Oils – maintain their consistency well over a wide temperature range and are easy to apply. For very low torque applications, a light instrument oil should be specified. Higher running speeds are possible with oil but the obvious drawback with oil is the fact that it tends not to stay in place.
Greases – are simply oils mixed with a thickener to so that they stay inside the bearing. Greases are generally more suitable for heavy loads and have the obvious advantage of giving constant lubrication over a long period without maintenance.
6.Buyers' tips
Shipping |
Sample :Usually by EMS, DHL, UPS, TNT, Fedex. Anyway as you like.Bulk order:Usually by sea. |
Delivery |
Within 7 days working day for Sample or below 100 pcs ,30-45 days working day for large quantity |
Warranty |
Six months warranty time for the tracker unit from the delivery date leave factory, excluded the accessories. |
Payment |
It can be through T/T, ,Western Union,Please inform us when the payment made, so that we are able to arrange the productions ASAP. |
Sample |
|
(1)Welcome to according to your samples to OEM (2)The sample time: stock samples could be sent within 3 days OME samples will base on the negotiation |
