Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU

Wuxi Lotton Bearing Manufacturing Co., Ltd.
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU thumbnail-1
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU thumbnail-2
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU thumbnail-3
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU thumbnail-4
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU photo-1
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU photo-2
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU photo-3
Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU photo-4
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
LOTTON
Bore Size:
0, 25
Outside Diameter:
0, 52
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI/QINGDAO
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name LOTTON
Bore Size 0, 25
Outside Diameter 0, 52
Model Number LR5005NPPU
Precision Rating P0 P6 P5 P4 P2
Seals Type Sealed
Number of Row Single Row
Place of Origin Jiangsu, China





Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU



Product Description


Series LR rollers are also called CAM ROLLERS,can be used in the heavy loads track or used as an idler wheel.They are widely used in the particular application that the friction should be reduced.

The outer diameter surface of rollers is shaped to the crowned runner surface with R500(suffix U),so make the stresses well when roller working.

Rollers take the internal structure design of deep groove ball bearings or double row angular contact ball bearings and have a particularly thick-walled outer ring,so the rollers can accommodate higher loads.

Rollers are made of the high-quality bearing steel,processed by heat treatment and precision grind,and are filled with a long service life.high grade and multi-purposes grease.Rollers take the metal shield(suffix KDD) or rubble seal(suffix NPP) to prevent the dust.UBM also can provide the rollers with concentric or eccentric pivot.Some ty pes of the rollers can be made from the corrosionn resistance stainless steel.





Specification:

Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU

Product NameTrack Roller bearing
ModelLR5005NPPU
BrandLOTTON/NEUTRAL
Dimensions(mm)D:52mm
d:25mm
B:16mm
Weight150g
Material GCR-15
Application

Steel Industry, Mining&Construction, Papermaking Machinery,

vibrating screens, shakers, conveyors,

speed reducers transmissions,

and other heavy machinery

CertificationsISO 9001:2008
Website

/



Pictures

Track Roller Double Rows Bearing Sealed Track Bearings LR5005NPPUTrack Roller Double Rows Bearing Sealed Track Bearings LR5005NPPUTrack Roller Double Rows Bearing Sealed Track Bearings LR5005NPPUTrack Roller Double Rows Bearing Sealed Track Bearings LR5005NPPU

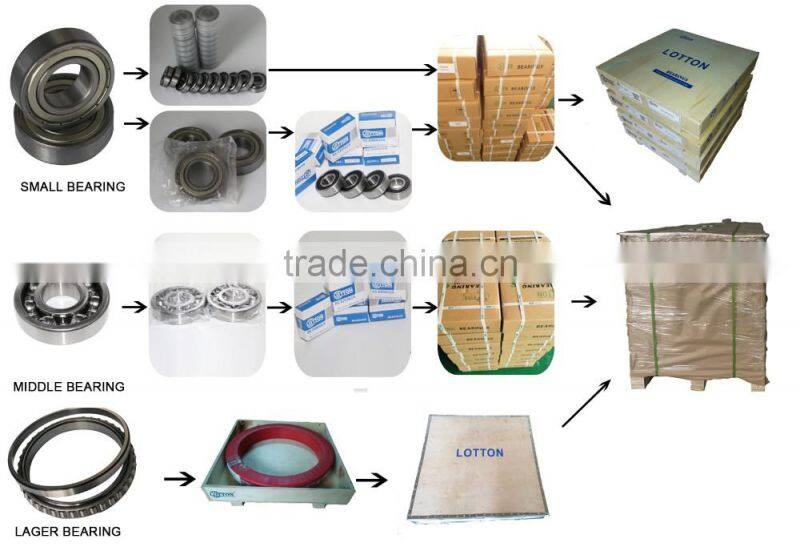

Packaging & Shipping

1. Package:

(1). Industrial packing: plastic bag + kraft paper + carton+ plywood pallets

Commerical packing:1pc/plastic bag + box + carton + plywood pallets

(2). As your requirement.

2. Delivery: Within15days.



Our Services



Before-sales service :

1.Offer bearing related consultation about technology and application;

2.Help customers about bearing choice, force analysis, clearance configuration, products’ life and reliability analysis;

3.Offer highly cost-effective and complete solution program according to site conditions;

4.Offer localized program on introduced equipment to save running cost

5.Design and develop non-standard bearing to support customers’ technology innovation



After-sales service  :

1.Offer training about bearing installation and maintenance;

2.Offer guidance about bearing installation, adjustment and testing at site;

3.Help customers with trouble diagnosis and failure analysis;

4.Visit customers regularly and feedback their rational suggestions and requirements to company.



Company Information



FAQ

1.Q:Are you a factory or trading company?

A:Wuxi Lotton Bearing Co.,Ltd is specialized in manufacturing and exporting Bearings.

We have own factory and Warehouse.

2.Q:Can I get some samples and do you offer the sample free?

A:Yes, sure, we are honored to offer you samples.Can you buy a ticket ?

3.Q:What is the payment?

A: 30% T/T In Advance, 70% T/T Against Copy Of B/L

B: 100% L/C At Sight

C: D/P once as our old customers

4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pcs.
