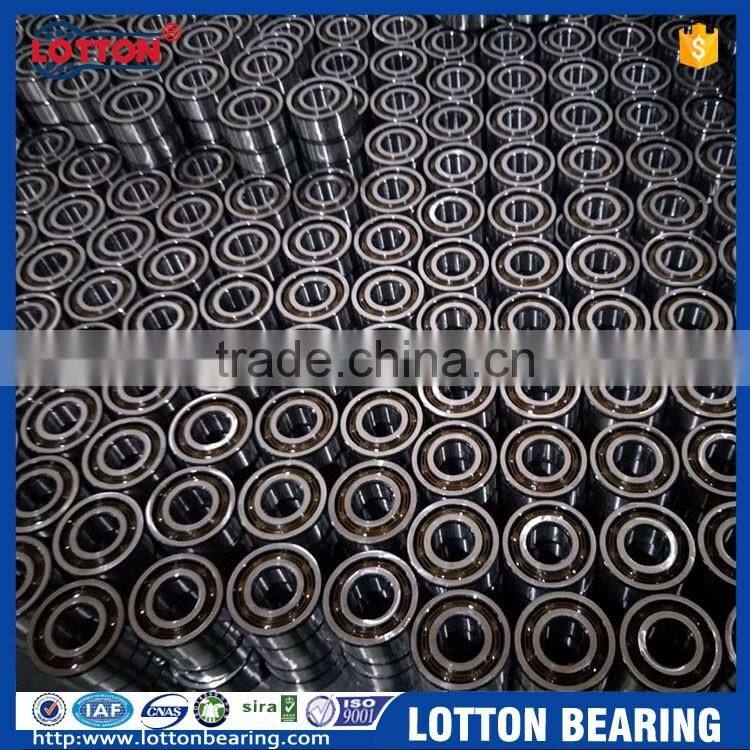

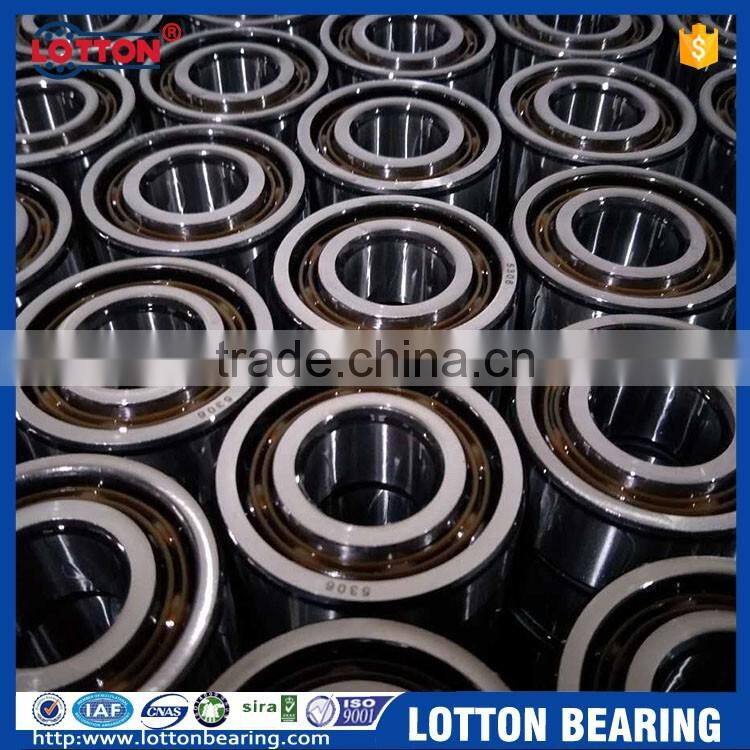

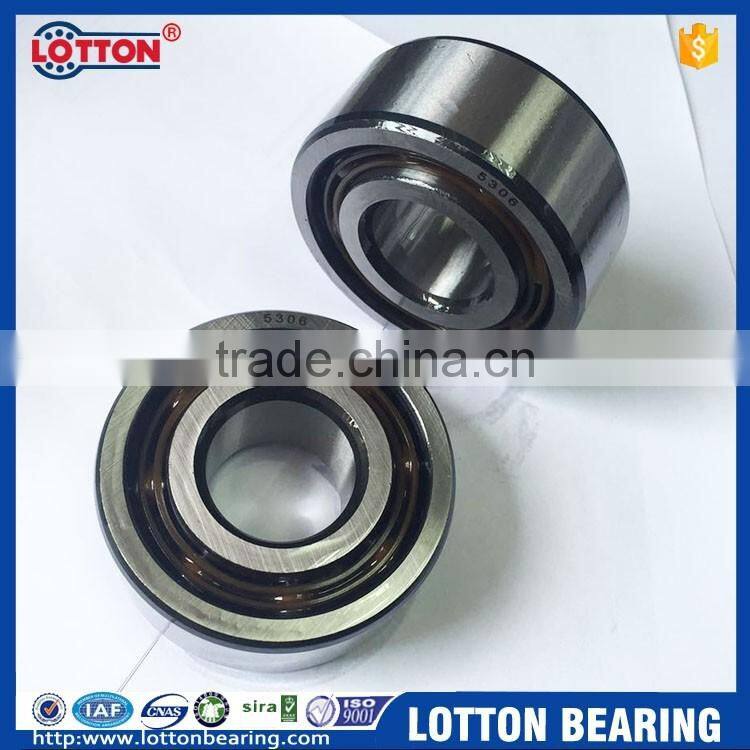

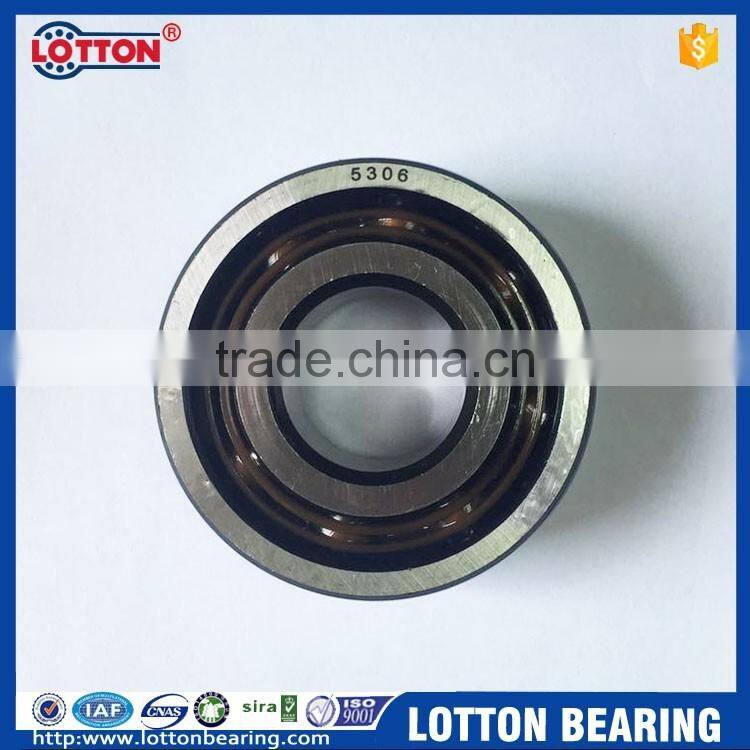

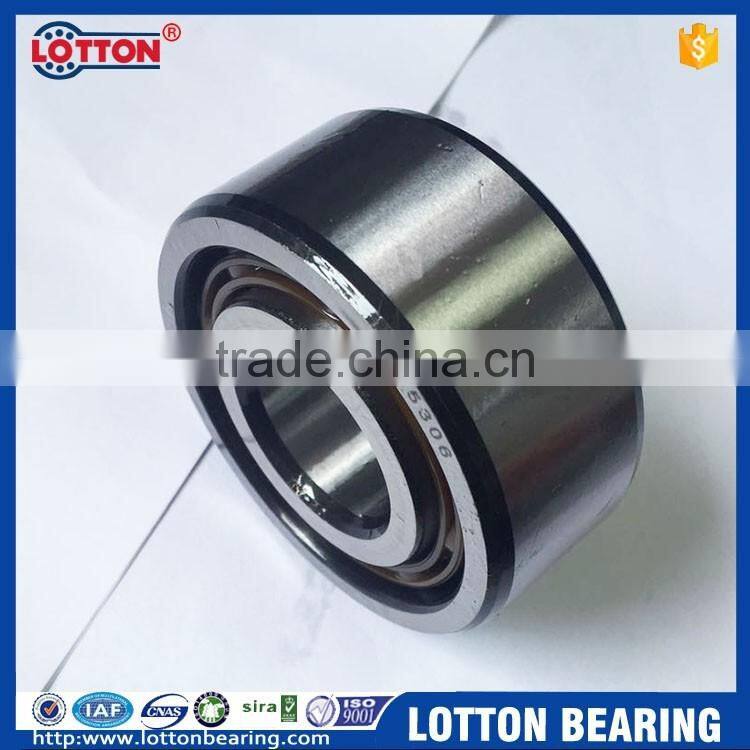

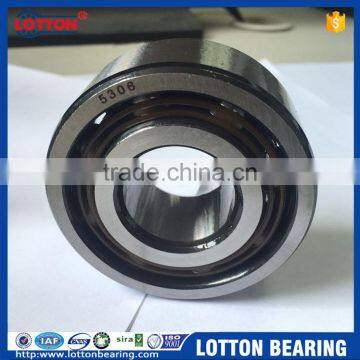

Lotton Major Products Angular Contact Ball Bearing 3056306
Double row angular contact ball bearing inner and outer ring of the tilt between the limited, allowing the tilt angle depends on the internal clearance of the bearing, bearing size, internal design and role in bearing the force and torque, and the maximum allowable inclination angle should ensure that the bearing will not produce high additional stress.
If the bearing inner and outer ring between the inclined angle, will affect the bearing life, but also caused the bearing running accuracy, operating noise increases. Double row angular contact ball bearings generally used in nylon holder or brass solid cage. Double row angular contact ball bearing installation should pay attention to, while the bearing two-way axial load. But if a side ball filling gap, pay attention not to let the main axial load through a gap in the side of the ditch. In the use of bearings should pay attention to the side of the ball with the ball to the gap of the main load bearing.
| Bearing type | Angular Contact Ball Bearing |
| Model | 3306 |
| Old Model | 5306, 3056306 |
| Brand | Lotton or OEM |

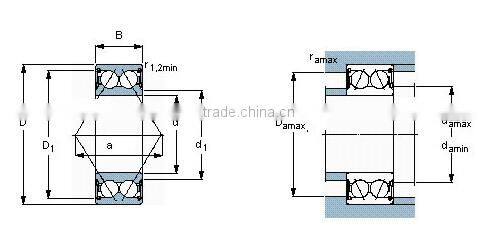

| Boundary demension | d:30 mm |
| D:72 mm | |
| B:30.2 mm | |
| Chamfer | A type |
| Ring Material | Chrome steel,stainless steel |
| Cage Material | steel |
| Clearance | C0,C3,C4,C5 |
| Precision | P0,,P4,P5,P6 |
| Vibration Level | V1 , V2 , V3 , V4 |
| Noise Level | Z1 , Z2 , Z3 , Z4 |
| MOQ | 1 piece |
| Delivery time | depend on order quantity |
| Payment | T/T,L/C,Paypal,Western union |
| Application | Machinery, equipment |
| polybag+box+carton+wooden case |
| 1.individual standard package |
| 2.box or wooden case |
| 3.depend on customers requirements |
1.Q:Are you a factory or trading company?
A:Lotton Bearing is specialized in manufacturing and exporting bearings.
We have own factory and warehouse.
2.Q:Can I get some samples and do you offer the sample free?
A:Yes, sure, we are honored to offer you samples.Can you buy a ticket ?
3.Q:What is the payment?
A: 30% T/T In Advance, 70% T/T Against Copy Of B/L
B: 100% L/C At Sight
4.Q:What is the MOQ for bearing?
A: Our MOQ is 1 pc.
5.Q:What kind of service you can offer?
A:Technology support;Installation guidance;OEM.
...
