Specifications
Customers through the simple control commands to control the DC equipment closed, open, positive reverse opened.1 Product Brief
You can drive 4 DC equipment to open and the current direction control, suitable for DC motor control, electromagnet suction, exclusive control.
Customers through the simple control commands to control the DC equipment closed, open, positive reverse opened.
The board support TTL232 type, RS232 type of E.CON
2 features
* built-in embedded microprocessor, on-line control and parameter setting;
TTL serial communication, standard 9600 BPS ( 8 data bits, stop bit 1 bit, parity );
In 4, DC positive and negative control, 220VDC, 60W;
A simple customer orders, control, fault tolerance, providing detailed interface control specification;
, compact structure, shape size is only 85mm ( long ) X50mm ( W) X20mm ( high )

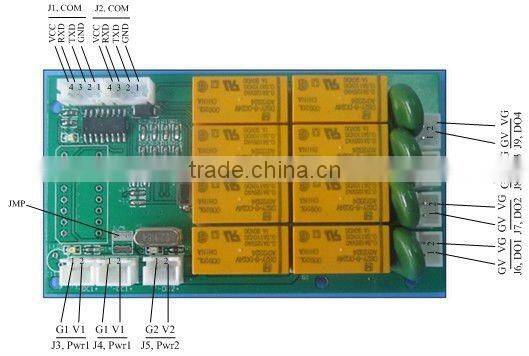

4 the board layout and interface definition
Layout plans are as follows
DC reverse control panel layout
Interface definition
- J1, J2: serial port ( port two parallel, is connected with the E.CON bus )
Pin | Definition | Function |
1 | GND | Ground
|
2 | TXD | Data transmission
|
3 | RXD | Data receiving
|
4 | VCC | +5V |
·J3, J4: control power supply interface ( port two parallel, convenient equipment cascade )
Pin | Definition | Function |
1 | G1 | Control the power cathode
|
2 | V1 | Control supply.(DC24V) |
Pin | Definition | Function |
1 | G2 | Drive power cathode |
2 | V2 | Driving power supply cathode(DC5V~220V) |
Pin | Definition | Function |
1 | GV | Output ( the forward conducting ) Output power ( the reverse conduction ) |
2 | VG | Output power ( the forward conducting ) Output ( reverse conducting ) |
Pin | Definition | Ground
|
1 | V1 | Control supply. |
2 | V2 | Driving power supply cathode |
5.1 Driver software installation
Using E.CON communication cable, from the J1 port or J2 port access on E.CON bus;
By 2, core diameter more than 0.5mm by J3 or J4 cable export control power supply access;
Through the JMP port jumper cap, short circuit to achieve the same power supply,
By 2 core diameter more than 0.5mm from the J5 port will drive power cable access;
By 2, core diameter more than 0.5mm cable by J6 ~ J9 export DC equipment ( such as a DC motor valve, valve, electromagnet etc.) access;
5.3 board configuration parameters
The board is connected to the E.CON bus, and disconnect all other boards, operation, technology "ECdcSet.exe" software, configuration of stepper motor control panel board parameters:
" Board address " column can be set in 0 ~ 254 in any one value, avoid the same E.CON bus two boards have the same address;
" The board of " column can be set up to 9 bit string, also need to avoid the same E.CON bus two boards have the same name

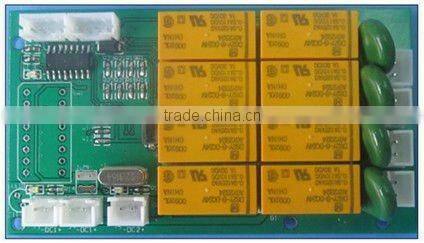

DC reverse control panel layout
Interface definition
- J1, J2: serial port ( port two parallel, is connected with the E.CON )
