water to air copper pipe heat exchanger
- 6000000 Piece / Pieces per Month
- shanghai
- T/T
You May Like
Product Details
| Condition | New | Brand Name | BESTAR | |
| Model Number | 16"x18"x3row | Structure | Tube Heat Exchanger | |
| Maximum Working Pressure | 2.5Pa | Dimension(L*W*H) | 16"x18" | |
| Certification | CCC, CE, ROHS, UL, Other, CCC, CE, ROHS, UL, ISO9000 | Warranty | 3 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

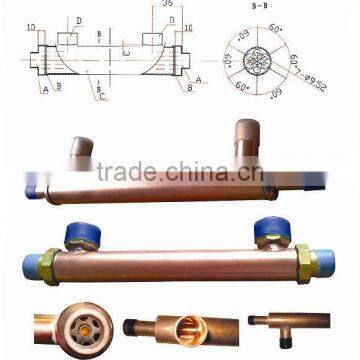

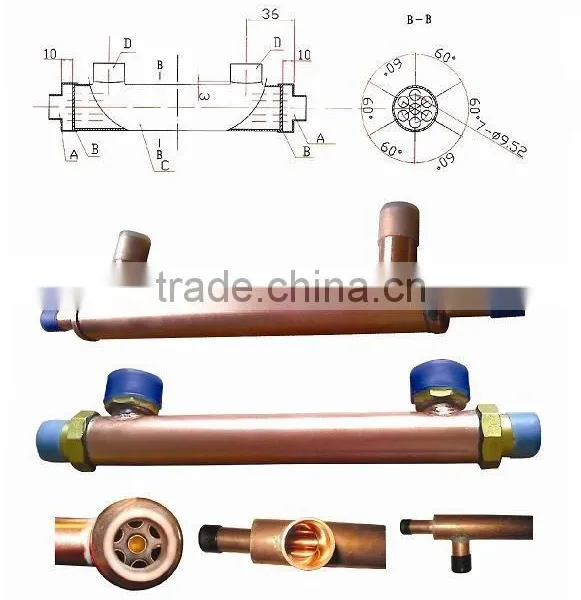

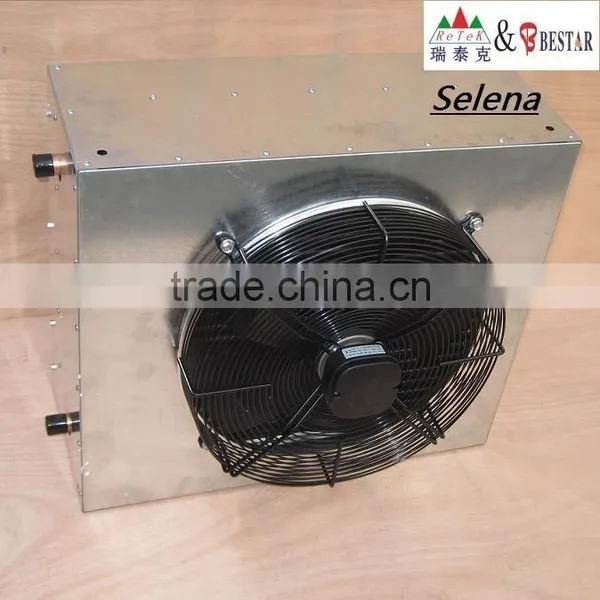

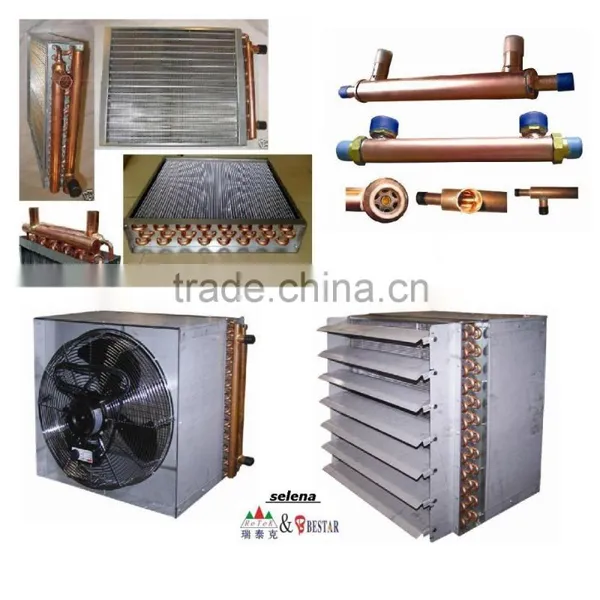

water to air copper pipe heat exchanger
Materials:
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
Model:
12"x12"x3 row
12"x16"x3row
12"x18"x3 row
15"x15"x3row
16"x18"x3 row
18"x18"x3 row
18"x20"x3 row
19"x20"x3row
20"x20"x3row
20"x20"x3row
22"x22"x3row
22"x24"x3row
25"x25"x3row
30"x30"x3row
Different size avaliable.
| Item | Btu | CFM | Pressure Drop Air | Pressure Drop Water | GPM |
| 12x12 | 50,000 | 700 | 0.5 | 0.2 | 6 |
| 12x18 | 80,000 | 800 | 0.5 | 0.2 | 6 |
| 14x14 | 85,000 | 800 | 0.5 | 0.2 | 7 |
| 14x18 | 95,000 | 800 | 0.5 | 0.2 | 7 |
| 15x15 | 98,000 | 1000 | 0.51 | 0.206 | 8 |
| 16x16 | 90,000 | 1250 | 0.51 | 0.257 | 8 |
| 16x18 | 100,000 | 1650 | 0.81 | 0.254 | 10 |
| 18x18 | 130,000 | 2000 | 0.91 | 0.325 | 12 |
| 18x20 | 140,000 | 2350 | 1.32 | 0.359 | 14 |
| 19x20 | 150,000 | 2500 | 1.49 | 0.388 | 15 |
| 20x20 | 160,000 | 2700 | 1.38 | 0.4 | 16 |
Tube coil: 3/8” seamless copper (3row)
Plate fin: Aluminum
Core housing: Galvanized steel
Header: 1" ID Copper
Model:
12"x12"x3 row
12"x16"x3row
12"x18"x3 row
15"x15"x3row
16"x18"x3 row
18"x18"x3 row
18"x20"x3 row
19"x20"x3row
20"x20"x3row
20"x20"x3row
22"x22"x3row
22"x24"x3row
25"x25"x3row
30"x30"x3row
Different size avaliable.
