Freezer Refrigerator Wire Tube Condenser

Raw Material

1)Rolling welded steel tube : OutDiameter 4.76mm-6.35mm , Wall Thickness 0.6-0.7mm;

2)Low carbon steel wire O.D.1.4-1.5mm ;

3)Bracket:Steel Plate (SPCC),thickness 0.6-1.5mm;

4)Steel Plate:SPCC with thickness 0.3-0.4mm;

Structure

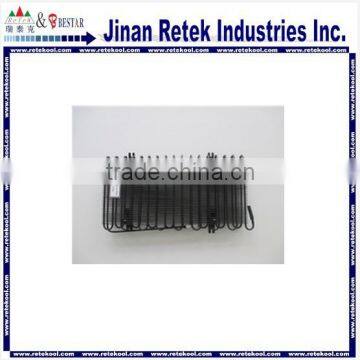

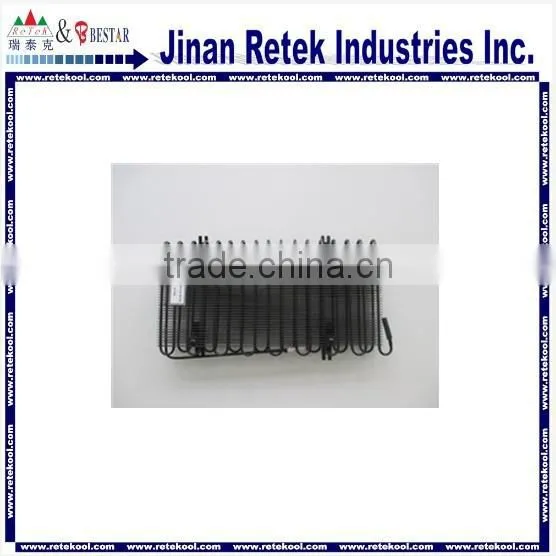

1)Flat Type of wire on tube condenser used at the back ;

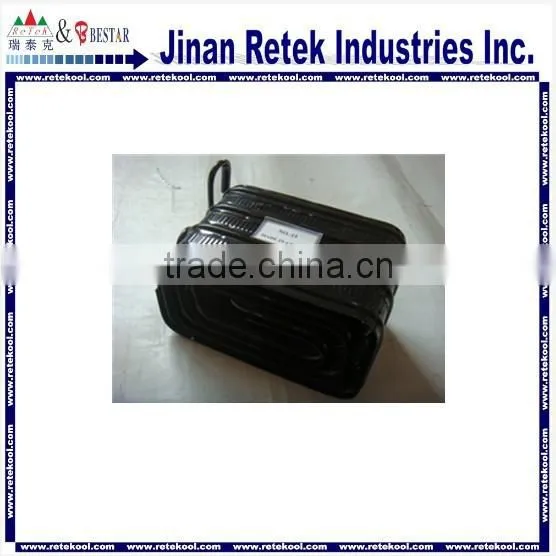

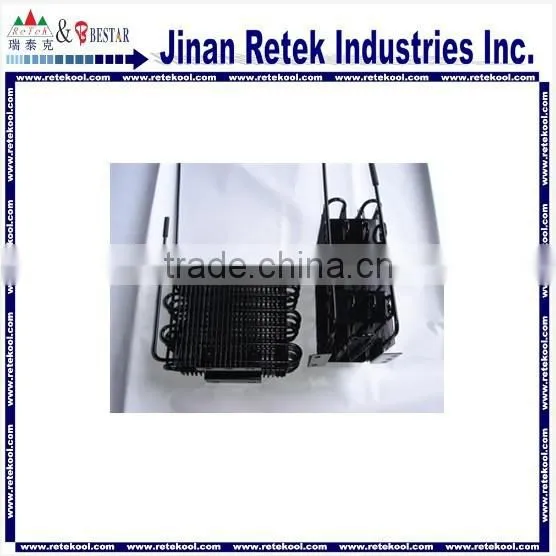

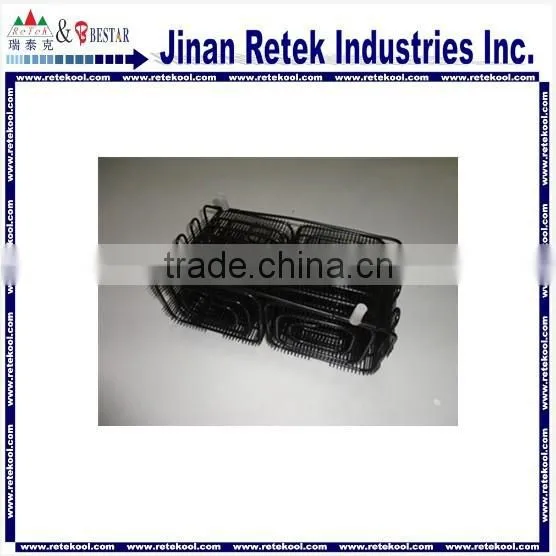

2)Bended or Spiral type of wire on tube condenser used at the bottom;

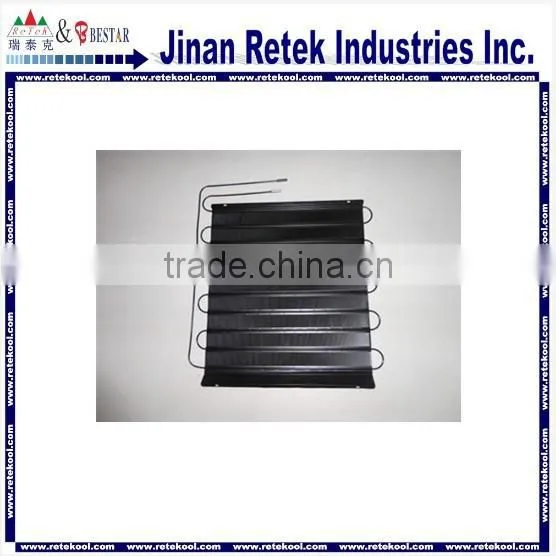

3)Wrapped type of tube embed on plate;

Key Process

Tube bending, Tube welding, Fix the bracket, Weld the suction tube, Leakage Test, Coating,Folding or bending, Shaping, Inspection, Package

Technical Ability

1)Wire Pitch ≥5mm;

2)Produce according to the drawing or sample supplied by clients;

Performance

1)Surface with electrophoresis coating to prevent the corrosion

2)Inner cleanness can meet the requirement of R134a &CFC cooling system;

3)Can satisfy the cooling capability requirements;

4)Producing Capacity: 5000 Set/Day;

R134a Cooling System Tube Inside Standards
