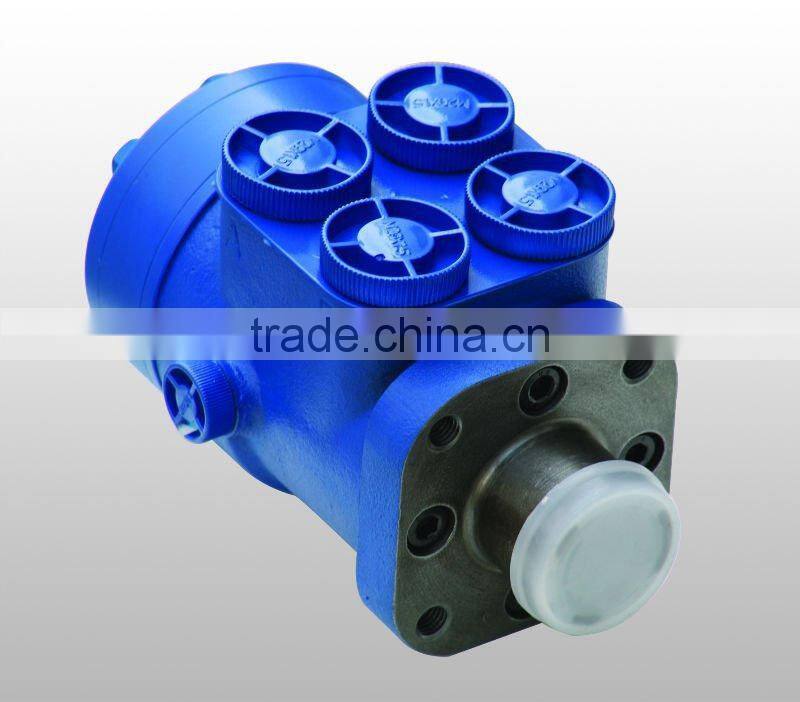

Excellent Performance Adavanced Electric Hydraulic Power Motor

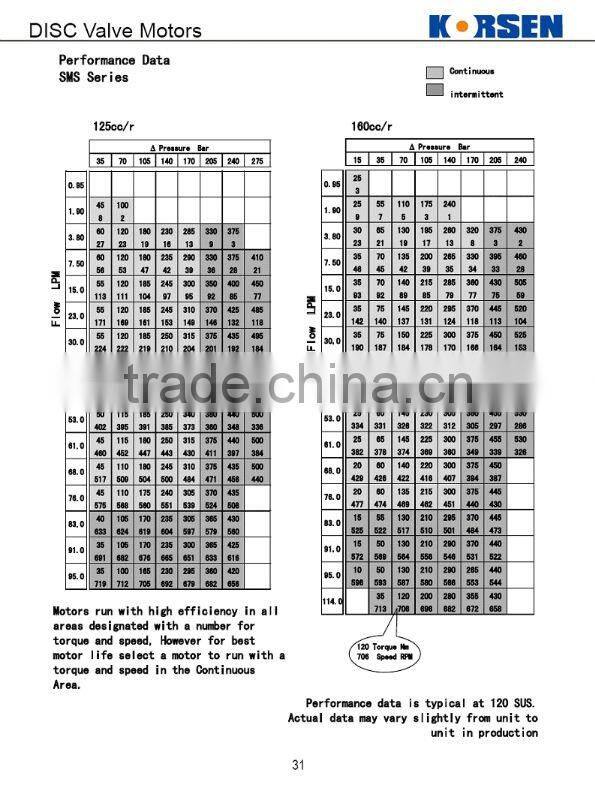

Specification
9 | 11.5 | 14.4 | 18 | 22.8 | 28.8 | 35.6 | 44.6 | 56 | 68 | 72 | |
Y mm | 119.3 | 121.8 | 124.7 | 128.3 | 133.1 | 139.1 | 145.9 | 154.9 | 166.3 | 178.3 | 182.3 |
Displacement | cc/r | 80 | 100 | 125 | 130 | 160 | 195 | 245 | 305 | 395 | ||
Flow LPM | Continuous | 75 | ||||||||||
Intermittent | 75 | 95 | 115 | 130 | ||||||||
Speed RPM | Continuous | 799 | 742 | 630 | 576 | 477 | 385 | 308 | 246 | 191 | ||
Intermittent | 908 | 924 | 820 | 720 | 713 | 577 | 462 | 365 | 335 | |||
Pressure Bar | Continuous | 170 | 140 | |||||||||
Intermittent | 275 | 310 | 275 | 240 | 205 | 170 | ||||||
Torque Nm | Continuous | 195 | 245 | 200 | 315 | 380 | 455 | 555 | 560 | 700 | ||
Intermittent | 305 | 395 | 510 | 505 | 530 | 625 | 765 | 805 | 890 | |||
Introduction
- Compact in design with disc valving
- High pressure capacity shaft seal
- Design and manufacture of the spline and drives give the motor durability
- Wide variety of mounting flanges,shaft ,ports and speed provides design flexibility
- Direction of shaft rotation and speed can be controlled easily and smoothly
- Best combination of high efficiency and economy in medium duty applications
Feature
- Low pressure of start-up, smooth reliable operation and high efficiency.
- Shaft use bearing, higher pressure, speed and higher radial force.
- Shaft seal can bear high pressure of back and the motor can be used in parallel or series
- Wide variety of mounting flanges, shafts ,ports and easy installation.
Advantages
- Advanced gear set parameter design, low start- up pressure, high efficiency and steady low rotation.
- High operate pressure and output torque.
- Advanced shaft seal design, high back pressure ability.
- Advanced driver-linker design, prolong operating life.
- Advanced distribution system design which can automatically compensate in operation.
- Motor can be used in parellel or in series, outer drain pipes when in series linkaged.
- Compact volume and easy installation.
- Adapt tapered roller bearings that permit high axial and radial force. The case can offer capacities of high pressure and high torque in the wide of applications.

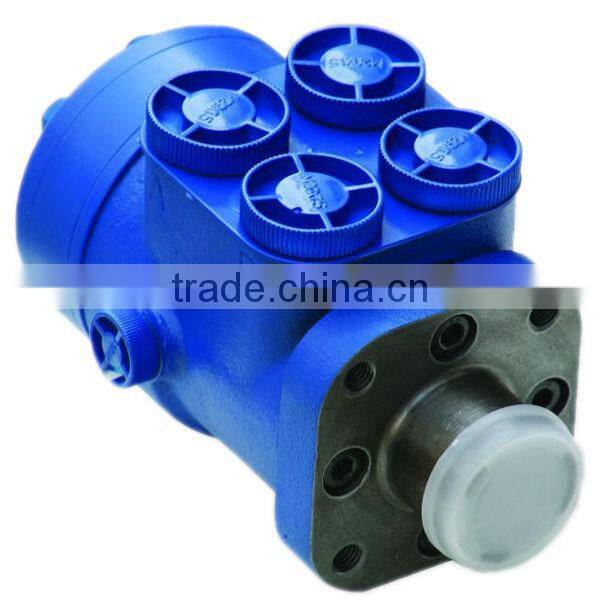

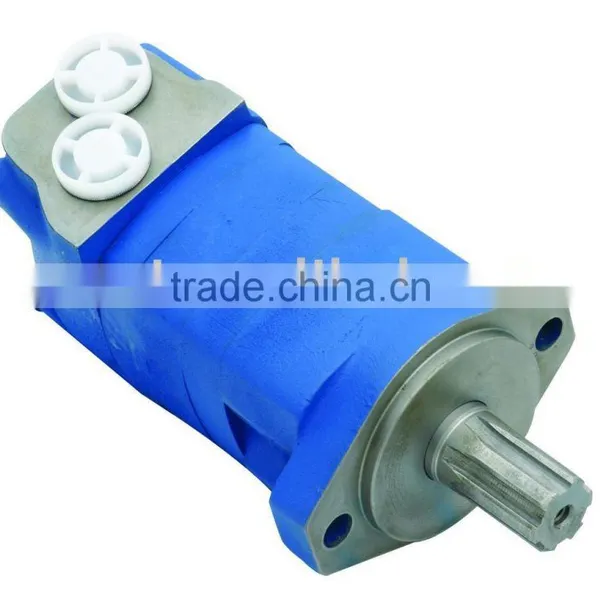

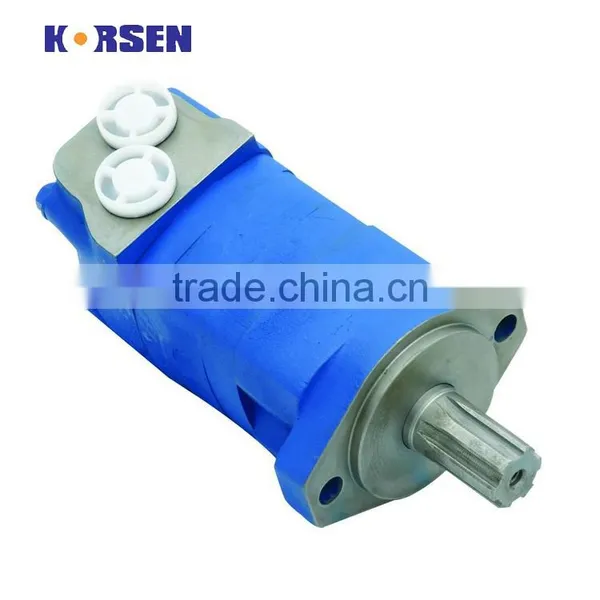

Pictures
Certificate

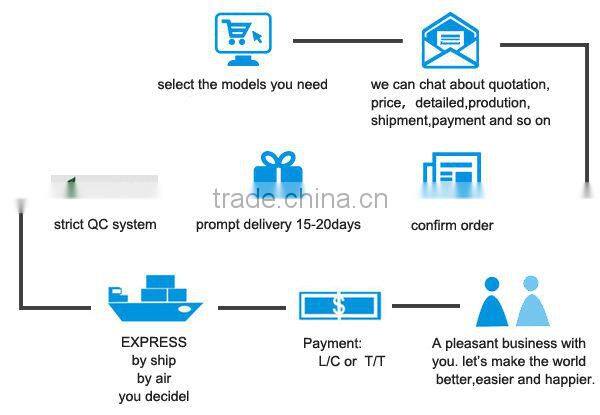

Trade
| OEM | Yes | |
| MOQ | 1 PCS Steering Control Unit | |
| Port | Qingdao, Shanghai | |
| Lead Time | Sample | Within 7 working days |
| Steering Control Unit | 15-20 working days | |
| Payment | L/C,T/T | |
30% advance payment, the balance paid before shipment | ||

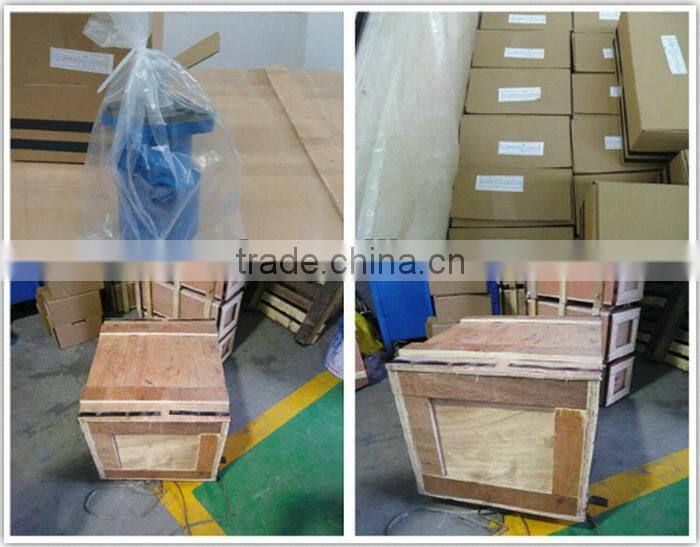

| Packing | Motor each have their own carton, the outer packing is a five-layer plywood boxes | |
| Shipping | 1)By air or sea or combined transportation. 2)Express: FEDEX, UPS, DHL, EMS. | |
In general, we deliver goods 15-20 days after the account’s reaching, and we usually choose DHL, UPS, TNT, EMS or Fed-Ex, of course, you can appoint another .
Service
- 1 years since the date of purchase
- Reply within 24 hours
- Quick delivery
- OEM and ODM are accepted
Company
We can offer more than 300 kinds of orbit motors with variety series of models and data, with rated displacement from 50cc/r to 1000cc/r, rotation speed from 1000r/min to 100r/min, and max torque from 100Nm ~2000Nm. Our products can substitute Danfoss and Char-Lynn series products.
With the new product technology, Gerotor/Geroler motors have won a good reputation with high quality in the marketplace. They are widely used in plastic injection machinery, fishing machinery, mining equipment, oil-drilling equipment, lift trucks, wheel loaders, harvesting machinery and tractors.

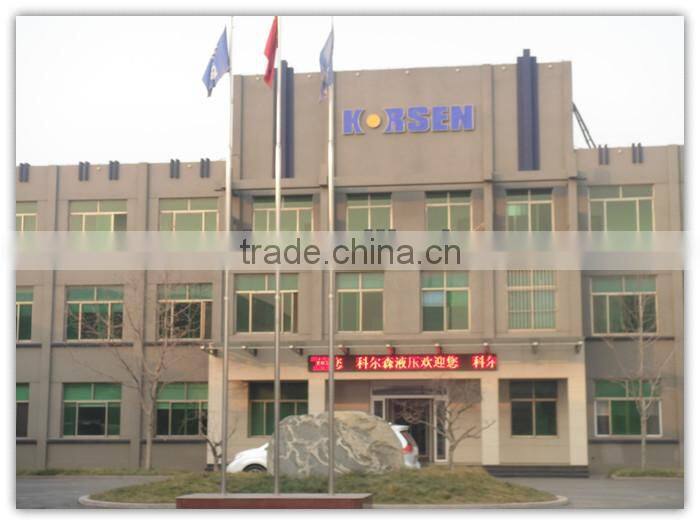

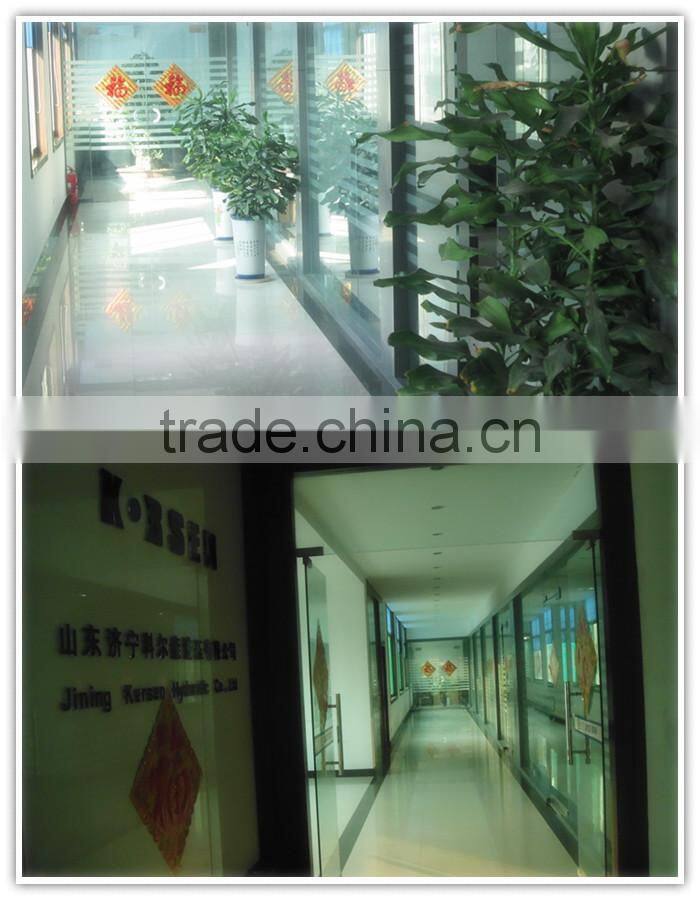

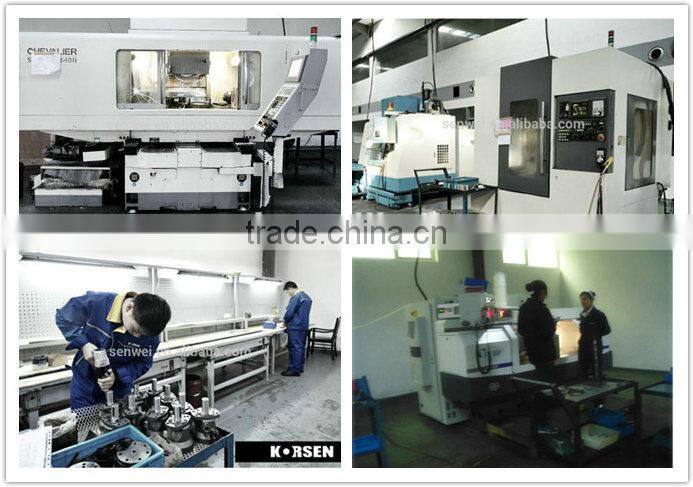

Factory
