Home > Electrical & Electronics > Electric Motor > Stepper Motor > New Product SMS Disc Valve Hydraulic Orbit Motor

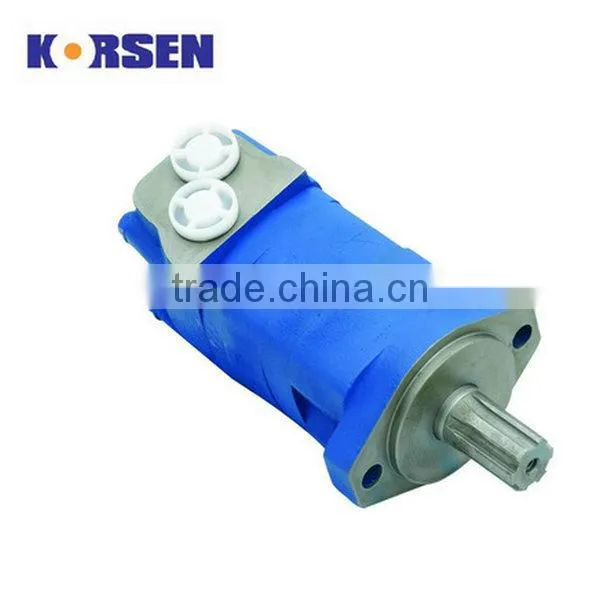

New Product SMS Disc Valve Hydraulic Orbit Motor

Name: New Product SMS Disc Valve Hydraulic Orbit Motor
Brand: Kersen
SKU: 140154810
Availability: InStock

New Product SMS Disc Valve Hydraulic Orbit Motor thumbnail-1

New Product SMS Disc Valve Hydraulic Orbit Motor thumbnail-2

New Product SMS Disc Valve Hydraulic Orbit Motor thumbnail-3

New Product SMS Disc Valve Hydraulic Orbit Motor photo-1

New Product SMS Disc Valve Hydraulic Orbit Motor photo-2

New Product SMS Disc Valve Hydraulic Orbit Motor photo-3

US$ 85 - 100 MOQ: 2 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Shandong, China

Brand Name:

Kersen

Model Number:

SMS

Contact Supplier Request Quote Chat Now

Jining Kersen Hydraulic Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Anyone appointed

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shandong, China

Brand Name Kersen

Model Number SMS

New Product SMS Disc Valve Motor/Hydraulic Orbit Motor

Product Description

Specification

Displacement	cc/r	80	100	125	130	160	195	245	305	395
Flow LPM	Continuous	75
	Intermittent	75	95			115				130
Speed RPM	Continuous	799	742	630	576	477	385	308	246	191
	Intermittent	908	924	820	720	713	577	462	365	335
Pressure Bar	Continuous	170							140
	Intermittent	275		310	275	240			205	170
Torque Nm	Continuous	195	245	200	315	380	455	555	560	700
	Intermittent	305	395	510	505	530	625	765	805	890

Introduction

Max. pressure is the allowed pressure at the inlet port. Rated pressure is the working pressure difference between inlet and outlet port.
A simultaneous maximum RPM and maximum pressure NOT recommended.
Maximum pressure or maximum RPM operation: 10% of very minute.
Recommended fluids: Anti-wear type of hydraulic oil. Viscosity recommended 37-73cSt. Recommended filtration ISO18/13. Maximum operating temperature recommended 80°C.
Special high pressure capacity shaft seal ensures back pressure up to 10 Mpa.Recommended preferable back pressure 5 Mpa. Case drain line is recommended when back pressure higher than 5 Mpa. When case drain line is used, make sure the motor is always filled with oil. The motor life is benefited from a case drain line.
It is highly recommended thar the motor runs at 30% of rated pressure for at least one our before application of full load. Be sure the motor is filled with fluid prior to any load applications.

Feature

Low pressure of start-up, smooth reliable operation and high efficiency.
Shaft use bearing, higher pressure, speed and higher radial force.
Shaft seal can bear high pressure of back and the motor can be used in parallel or series
Wide variety of mounting flanges, shafts ,ports and easy installation.

Advantages

Advanced gear set parameter design, low start- up pressure, high efficiency and steady low rotation.
High operate pressure and output torque.
Advanced shaft seal design, high back pressure ability.
Advanced driver-linker design, prolong operating life.
Advanced distribution system design which can automatically compensate in operation.
Motor can be used in parellel or in series, outer drain pipes when in series linkaged.
Compact volume and easy installation.
Adapt tapered roller bearings that permit high axial and radial force. The case can offer capacities of high pressure and high torque in the wide of applications.

Pictures

Certificate

Packaging & Shipping

Trade

OEM	Yes
MOQ	1 PCS Steering Control Unit
Port	Qingdao, Shanghai
Lead Time	Sample	Within 7 working days
	Steering Control Unit	15-20 working days
Payment	L/C,T/T
	30% advance payment, the balance paid before shipment
Packing	Motor each have their own carton, the outer packing is a five-layer plywood boxes
Shipping	1)By air or sea or combined transportation. 2)Express: FEDEX, UPS, DHL, EMS.

In general, we deliver goods 15-20 days after the account’s reaching, and we usually choose DHL, UPS, TNT, EMS or Fed-Ex, of course, you can appoint another .
