High PrecisionISO6 Grade Sprinkler Shaft

High PrecisionISO6 Grade Sprinkler Shaft thumbnail-1
High PrecisionISO6 Grade Sprinkler Shaft thumbnail-2
High PrecisionISO6 Grade Sprinkler Shaft photo-1
High PrecisionISO6 Grade Sprinkler Shaft photo-2
US$ 1 - 10 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Structure:
Gear
Material:
Steel
Model Number:
sprinkler shaft
Contact Supplier Request Quote Chat Now
Jianhu Haisheng Machinery Manufacture Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Structure Gear
Material Steel
Model Number sprinkler shaft
Place of Origin Jiangsu, China
Brand Name Haisheng

Specifications

High precision GB6 Class Gear and Shaft, gear transmission
we are china direct gear factory for 20 years
factory price

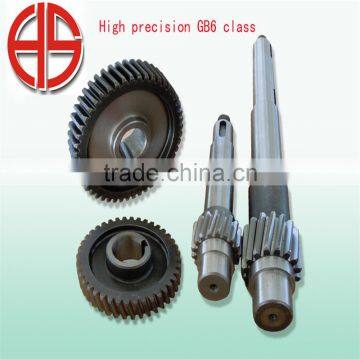

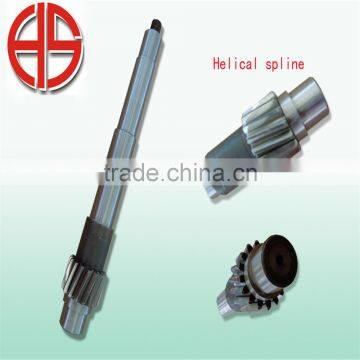

  High precision ISO 6 grade  sprinkler shaft

  shaft transmission

 Application: used in sprinkler warter pump .The followings are the details:

 The model of the water pump :CLW80QZF-60/90,CLW80QZF-40/54.

 Material: GB 40Cr.

 Heattreatment :Quenching & tempering  ,HRC45-50

 Accuracy Class: GB6 (same as ISO6,DIN6,ANSI3,JIS2)

 Finish of the teeth:Ra0.8um   Grinding the teeth

 KTL-XSB-001  Driven gear :

 Module:2.5     NO.of teeth:17      pressure angle:20degree    right lead      OD:48



KTL-XSB-002  Gear pinion:

Module:2.5     NO.of teeth:40      pressure angle:20degree        left lead      OD:106



SB60/90-03    Driven gear :

Module:3    NO.of teeth:16      pressure angle:20degree    right lead      OD:56.48



SB60/60-03   Gear pinion:

Module:3   NO.of teeth:48      pressure angle:20degree    left lead      OD:150.7



High precisionISO6 Grade sprinkler shaftHigh precisionISO6 Grade sprinkler shaftHigh precisionISO6 Grade sprinkler shaft





direct factory

We're Factory for 20 years' Production History

                              Website: http://



Our company is a professional manufacturer who make all kinds of gears, shaft  and gearbox for nearly 20 years with rich manufacturing experience . Our products have exported to USA, Europe and many other countries. If you are interested, feel free to contact me. Sample or Drawing are accpeted.



Our Advantage

• Professional gear factory for 20 years
• Experience in Cooperate with Fortune 500 Companies
• Professional Engineering Capability
• Stable Quality
• Best Factory Price
• Small Orders Accepted
• Continuous Improvements
• High Product Performance
• Prompt Delivery
• Professional Service



Company Details

Company Name

Jianhu Haisheng Machinery Manufacture Co., ltd

Foundation Year

2002(Befoe 2002, we are a small gear factory )

Type of Company

Manufacturer , seller

Factory Size(sqm)

5200 square meter

Working Hours

8 hours per day and 6 days per week.

Number of Workers

100-200

Number of Engineers

10

Business Scope

Machine component gear and shaft for agriculture, construction, industry etc.

Main Products

Spur gear, bevel gear, helical gear, nylon gear, worm and worm gear, all kinds of shaft, rack, sprocket and gearbox

Main Export Markets

Southeast Asia, USA ,Euorpe etc

Address

Guanhua Industrial Zone, Qingfeng town, Jianhu,Yancheng, Jiangsu, China (Mainland)

Website

Contact

Miss Olivier Sun

Mobile

0086-15848178629

Production Capability

Material

Stainless steel, Steel, Aluminum, Copper, Brass, Bronze, Plastic etc

Metal Fabrication

Lathe, Turning, Millling, Engraving, Grinding, Stamping, Lasering, Boring, Broaching, Drilling, Rolling, Punching, Aluminum Extrusion

Finish

Chrome/Zinc/Nickel/Tin Plating, Anodize,Polish, Blacken, Passivate

Testing Tools

CMM, Projector, Microscope, Roughness Tester, Salt-spray Tester, Digital Micrometer,Hardness Tester,Concentricity Tester

Producing Capacity

600000 pcs gears per year; 500000 pcs per year.

After-sale Service

Management of Customer Complaints

Highly Attention and Quick Processing Result in 24hours

Managing Returned Product

With quality problem or deviation from drawings

Delivery of Samples

By DHL,Fedex,UPS, TNT,EMS



Production Workshop
