About Product

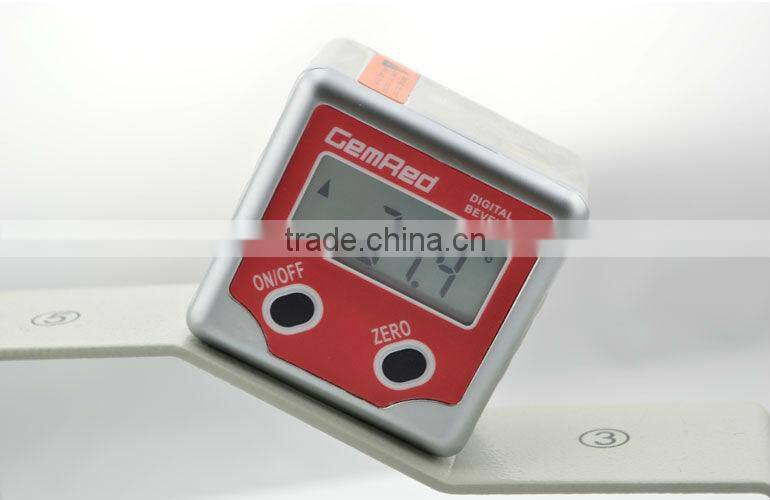

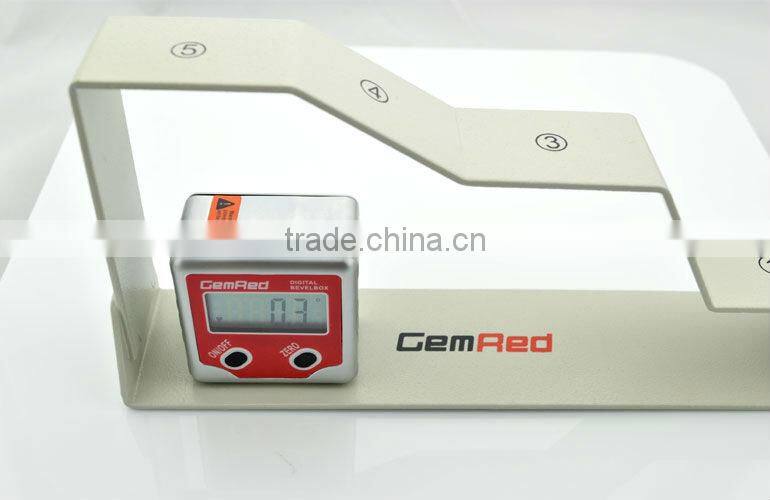

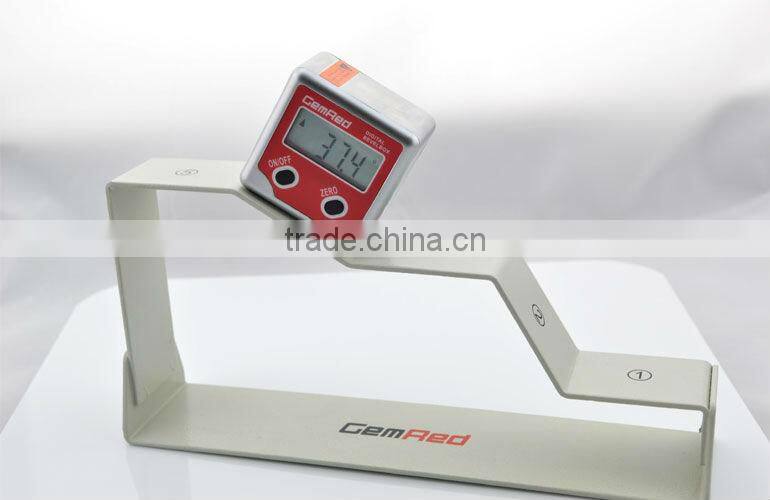

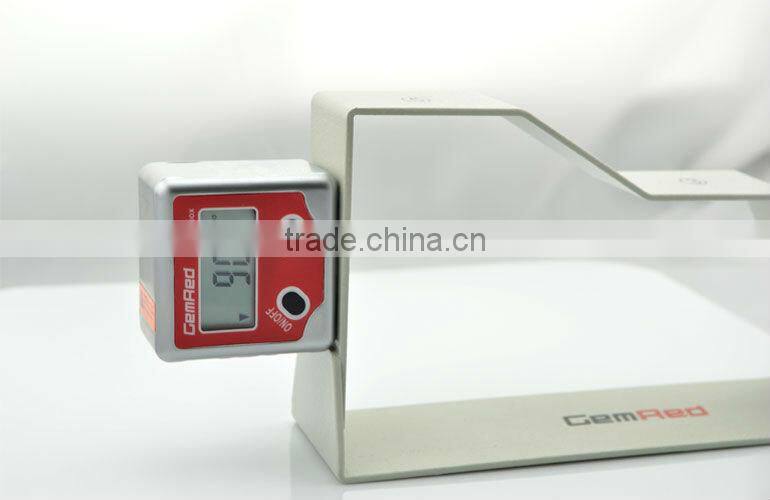

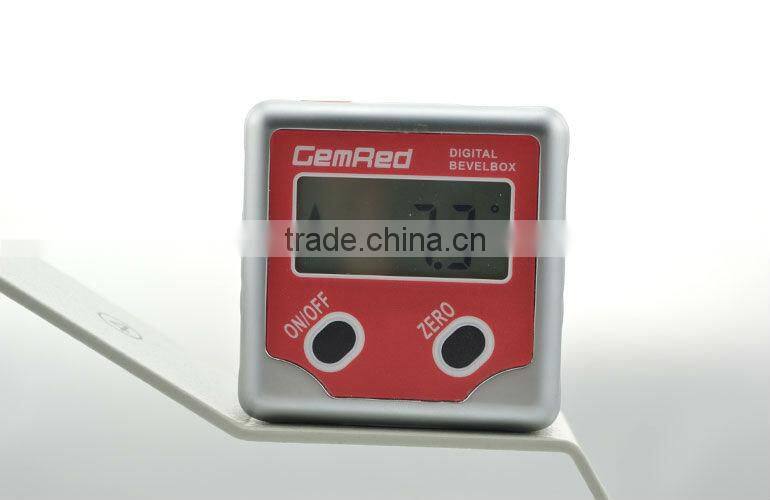

construction machinery angle measuring instrument is an innovative tool that provides digital reading between ±180.00°. Extra large LCD is convenient to read. Small and light, it is real easy to be carried and used. Measuring plane containing disk magnet can stick to the surface to be measured. It is especially easy to measure bevel angle of mitre saw, automobile test and repair and so on.
Technical data
Resolution : 0.1°
Repeatability: ±0.1°
Measuring range: ±180.00°(0°~360°)
Waterproof: IP54
Power:3V CR2032 Lithium battery
Working current:<100μA
Dimension: 2” ×2” ×1.3”
Feature
1.Measuring plane containing disk magnet can stick to the surface to be measured.
2.Works great for minter saws and table saws.
3.Sets the angle of jointer fences and band saw tables.
4.Machine cone bevel measuring and bevel measuring in processing
5.Telecommunication industry: Radar antenna angle calibration, elevation measuring for secondary planet antenna and television receiver;
6.Automobile:four-wheel location, pavement control and leveling for construction vehicles;
1.Metal shell
2.Strong magnet
3.LCD display
mbrane
5. Battery compartment
6. Warning label
Order NO.82202BA-00
Pack inf.
unit size of product: 50.8x33x50.8mm;
package |
color box |
clamshell |
Accessory |
3V cr2032 Lithium Battery; Instruction, leather bag |
3V cr2032 Lithium Battery; leaflet |
|
unit size of unit package |
70x46x95mm
|
152x65x150mm |
|
unit weight of unite package |
230g
|
223g |
personal service
a.Customize product
1.customize membrane
2.customize logo
3.customize label
b. customize package
1.customize colour box
2.customize inner card
3.customize instruction sheet
