About Product

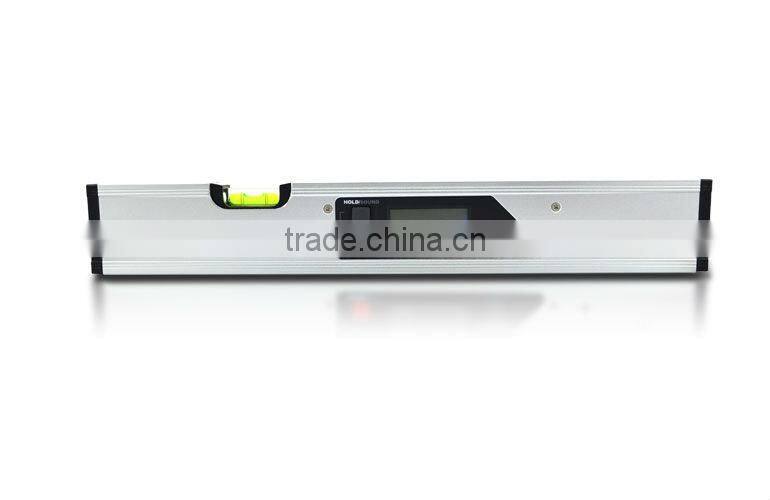

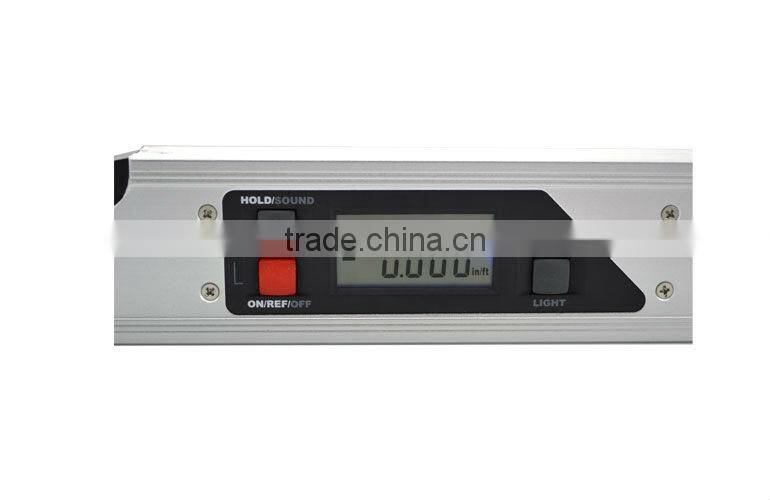

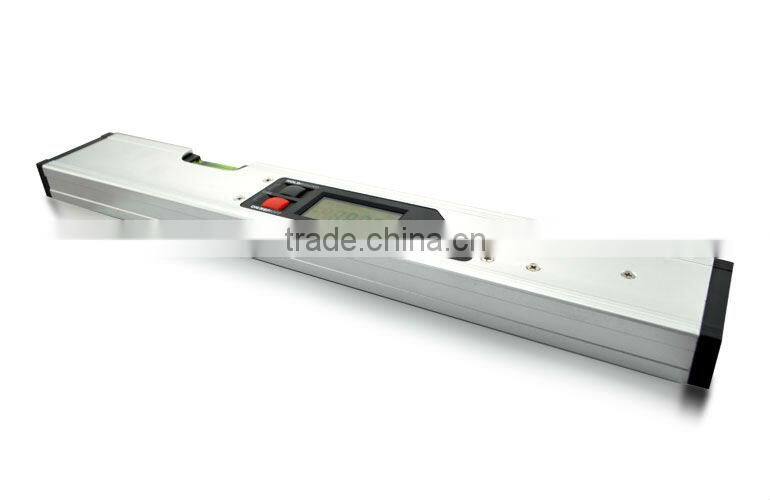

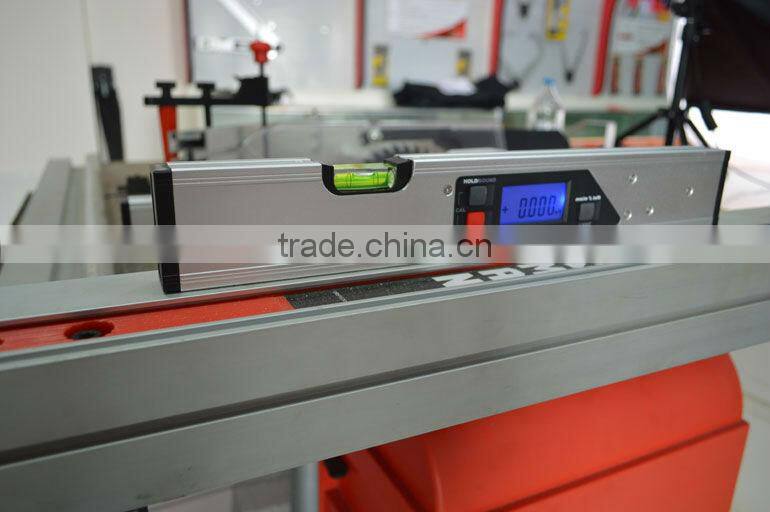

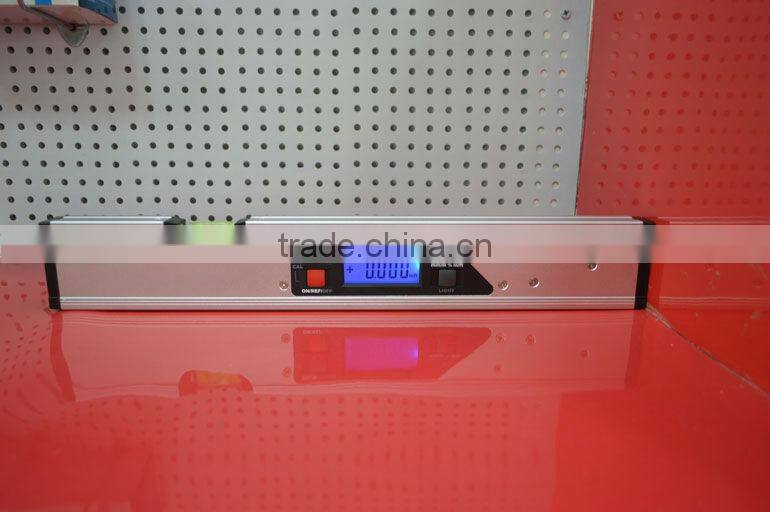

400mm length digital measuring instruments digital inclinometer
This digital level measure all angles in either 360°range or four 90° quadrants. It can display both degree and slope. Display is always upright which best specially when working overhead. Not only this instrument can measure the horizontal and vertical surface, it also can measure the angles of all slopes rise & fall.
Features
² Accuracy: 0° and 90° ≤0.1° ; the rest ≤ 0.2°
² Reading always upright
² Measuring range of 0~360°
² Hold function to freeze measurements
² Absolute measurement and relative measurement conversation
² Auto power off
² Measures precise inclines in degree or mm/m
Technical Data
Resolution |
0.1° |
Accuracy |
0° and 90° ≤0.1° ; the rest ≤ 0.2° |
Measuring range |
4×90°(0~360°) |
Work temperature |
+ 5°C~+50°C |
Work humidity |
≤85%RH |
Power |
2 x LR03(AAA) |
Battery life |
Approx.100 hours |
Weight(incl. Battery |
Approx.330 g |
Dimension |
416x50x21mm |
