Specifications

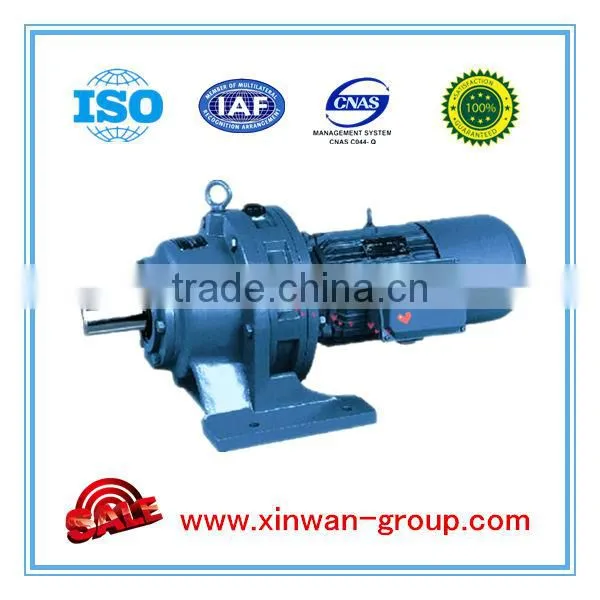

XB series foot mounted cycloidal stepper motor15 years specializing in the production
Excellent design, high standard
ISO

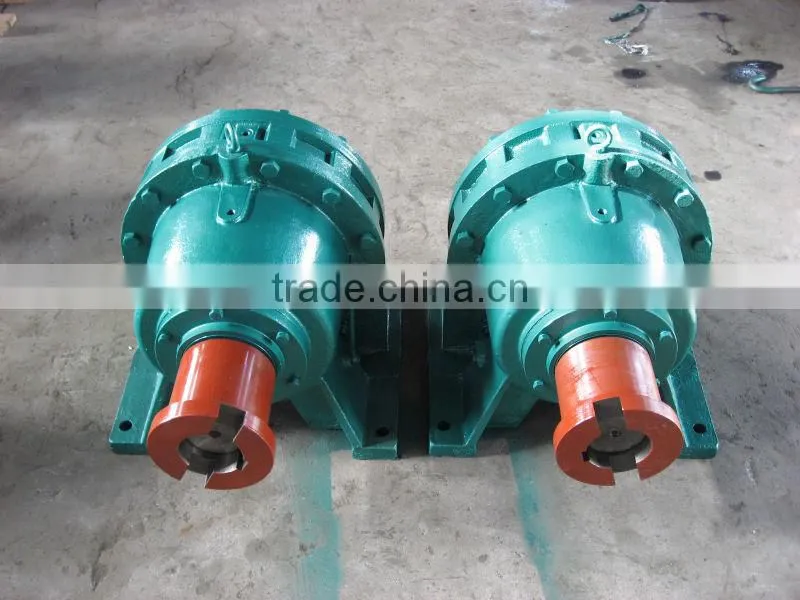

XB series foot mounted cycloidal stepper motor
XWD/BWD cycloid reducer in few teeth difference planetary transmission principle, a mechanical gearing cycloidal gear to realize deceleration.
The machine is divided into horizontal, vertical, biaxial and direct connection, assembly, is the preferred equipment in metallurgy, mining, construction, chemical, textile, light industry and other industries.
1, cycloid reducer big reduction ratio, high efficiency: a reduction gear ratio is 9~87, the two-stage reduction gear ratio is 121 ~ 5133, multistage combination can reach tens of thousands, and the needle tooth meshing line type rolling friction, the meshing surface no relative sliding, so a reduction efficiency of 94%.
2, pin wheel reducer smooth running, low noise: the teeth contact at the same time when in operation, the coincidence degree high, stable running, strong overload capacity, low vibration and noise, a variety of models, small noise.
3, the use of reliable, long life: because the main part is made of high carbon alloy steel quenching (HRC58-62), and then grinding, and cycloid gear and pin gear set mesh transfer to the pin gear form rolling friction pair, friction coefficient is small, so that the meshing zone no relative sliding, wear small, so durable.
4, compact structure, small volume: compared with other reducer with the power of the above weight, small volume 1/3, as is the planetary transmission, the input shaft and the output shaft in the same axis, in order to obtain the smallest possible size.
Power: 0.37KW ~ 55KW
Torque: 150N · m and 20000N · M
Transmission ratio: single stage: 9-87
2-stages: 121-7569
3-stages : 2057-658503
Standard Wooden Case
1. Have many years of production experience.
2. We are manufacturer, has the independent right to export, price better, can control the quality and delivery time.
3. Professional engineers for your design, drawing, ensure the quality of production if non-standard products.
4. The photos and films of prosuction process will be reported to you.
5. The Warranty period is 12 months.
1. Payment Term: 30% TT in advance+70% balance before shipment or total advance.
2. The remitter is responsible for the remittance charge.
3. The working time is about 7-15 working days from receive payment.
Our company specializes in producing high quality gear transmission equipment, pumps, mining equipment, chemical products, various kinds of ceramic & glassware.
We are close to Qingdao Port, and we enjoy a comfortable environment and convenient transportation access. Our factory is equipped with high precision processing equipment, and operates under strict QC guidelines to guarantee high-quality products at competitive prices.
We also deal in high-quality water treatment chemical aluminum sulphate and so on. Our products conform to international standards, such as ISO9001:2008, and are also authorized by SGS. Meanwhile, OEM and ODM orders are welcome.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us.
