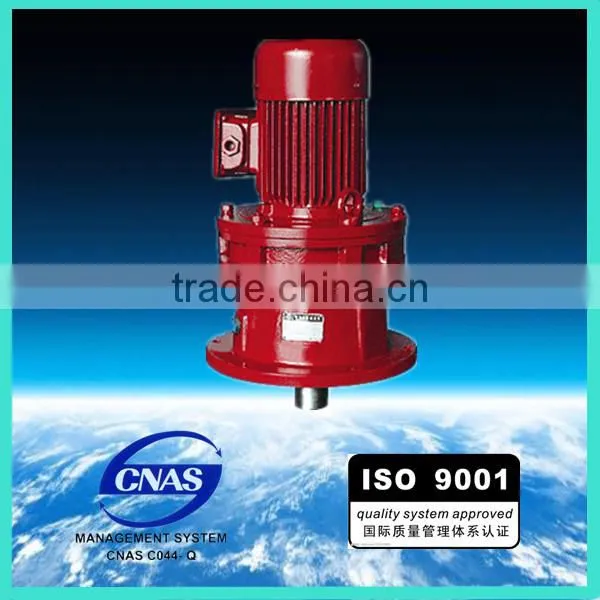

X B Series Cycloid Planetary Gearbox Cycloidal Pin Wheel Reducer

Specifications

X,B series cycloid reducer planetary transmission principle is an application , using cycloid meshing , advanced design, novel structure of the reduction gear. This gear has been replaced in most cases two , three ordinary cylindrical gear reducer and cylindrical worm reducer, in the military , aerospace, metallurgy, mining , petroleum, chemicals, shipbuilding, light industry, food, textile, printing and dyeing , pharmaceutical, rubber, plastics, and lifting transport and other aspects of an increasingly wide range of applications

1.High speed ratio and efficiency

Single stage transmission can reach to 1:87

of speed-down ratio and the efficiency is more than 90%. If use multi-speed
drive the speed-down ratio is bigger.

2.Compact

Being adapted epicyclic transmission principle, the input and output shaft are at same axis center, it is compact.

3.Smooth and stable run and low noise

The cycloidal pinwheel has more meshed teeth, the overlapping coefficient id big and the machine part is stable, the vibration and noise is limited at the minimum content.

4.Reliable in operation and long life

Because the main parts are made of bearing steel through quenching treatment(HRC58-62), it got high
strength. Meanwhile the transmission contact of part adapts rolling friction, so it is durable and long life.
Because of reasonable in design, convenient in maintenance, easy to disassemble and assemble, the minimum amount of part and simple lubrication, so it is trusted by customers deeply.

Range of Ratio for Single Stage:

11,17,23,29,35,43,59,71,87

Range of Ratio for Multi-Speed  Drive:

121,187,289,391,473,595,731,841,1003,1225,1505,1849,2065,2537,3481,4189,5133,7569

   ZIBO WANXIN SPEED REDUCER CO.,LTD. , with 15 YEARS of reducers production, powerful technical force, and complete inspection measures, quality Management System is in conformity with GB/T19001-2000-ISO9001:2000 standard.
