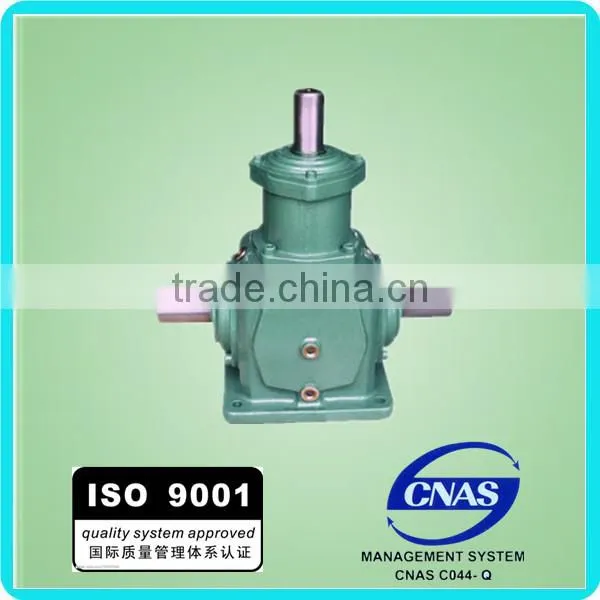

T Series Spiral bevel gear units/90 degree spiral bevel gearboxes
- 500 Piece / Pieces per Month
- QINGDAO
- T/T L/C D/P D/A
Product Details
Place of Origin: | Shandong, China | Brand Name: | XINWAN | Model Number: | T Series |
Gearing Arrangement: | Bevel / Miter | Output Torque: | 0-5700N.m | Rated Power: | 1-315kw |
Input Speed: | 750-2800rpm | Output Speed: | 0-300rpm |
Product Description
Specifications
1. Wide range of ratio ,high torque density,low noise2.Provide technical supporting for pre-sale and after-sale.
3.ISO9001.
♦T series spiral bevel gearbox with various types are standardized,all ratio of1:1,1.5:1,2:1,2.5:1,3:1,4:1 and 5:1 are actual ones.Average efficiency is 98%.
♦There are one input shafts,unilateral output shaft and double side output shaft.
♦Spiral bevel gear can rotate in both directions and transmit smoothly,low noise,light vibration,high performance.
♦ If ratio is not 1:1,if input speed on single-extendable shaft,output speed will be reduced;if input speed on double-extendable shaft,output speed will be reduced.
1. Shell: high rigidity of the FC-25 cast iron casting;
2. Gear: gear with high purity alloy steel 20CrMnTiH quenched processing, carburizing quenching and grinding;
3. Main: shaft made of alloy steel quenching and tempering process, with the heavy load capacity;
Bearing: tapered roller bearing with heavy load capacity;
4. Oil seal: with oil seal lip, ability has dustproof and oil leak-proof high;
ZIBO WANXIN SPEED REDUCER CO.,LTD. , with 15 YEARS of reducers production, powerful technical force, and complete inspection measures, quality Management System is in conformity with GB/T19001-2000-ISO9001:2000 standard.
