90 degree right angle bevel gearbox,helical bevel gear reducer,foot mounted gear box

Specifications

Various specifications, large transmission power.
Low noise , high reliability, high speed ratio.
Competitive price

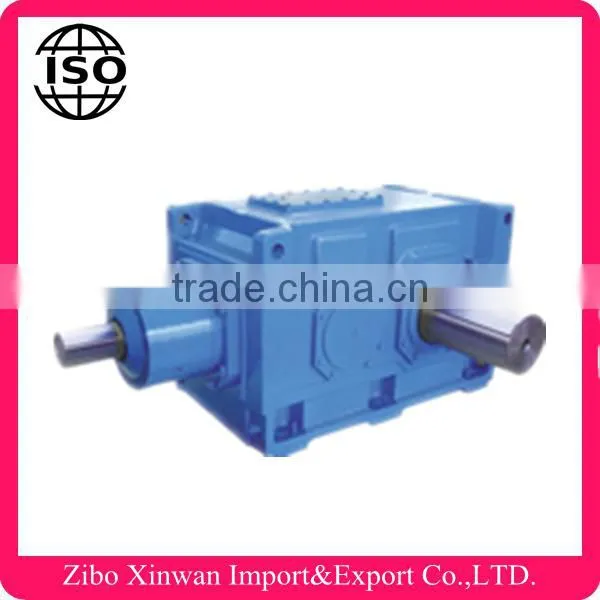

B series helical bevel speed reducer Made In China





1.HB series gear units adopt currency layout and may transform into special reducer according to customer's requirement.



2. The housing of one size can realize parallel shaftmodes and horizontal mounting modes.Variety of components is reducible, the number of reducer's mode is augmentable.

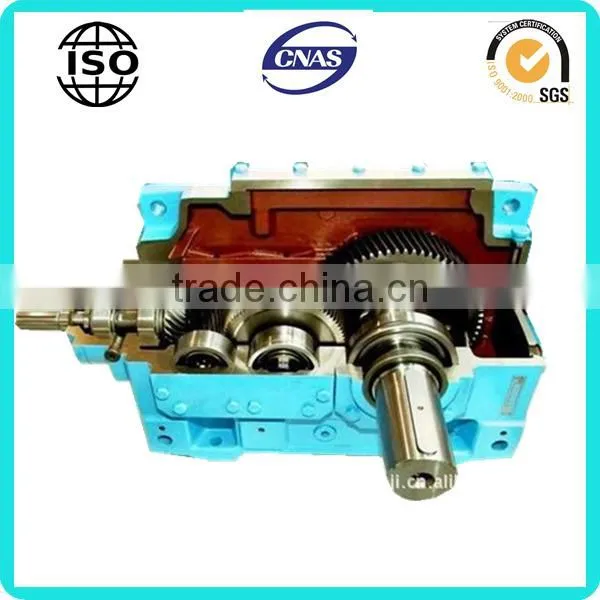

3. Sound-absorbable structure, lager surface, big fan reduce temperature and noise, advanced grinding process of cylindrical gear and bevel gear improve stability and transmit power more efficeintly.



4.Input mode : motor connected flange ,shaft input.



5. Output mode: solid shaft with flat key, hollow shaft with flat key, hollow shaft with shrink disk, hollow or solid shaft with involute splines , solid shaft with flange.



6. Mounting mode: Foot-mounted, flange-mounted, swing base-mounted, torque-arm-mounted.



7.HB series include sizes 3-26, number of stages is 1-4,ratio is 1.25-450. Combining with WR,S and K series, ratio will be higher.

















We can also design non-standard gearbox as per customer's special requirement in very competitive price
