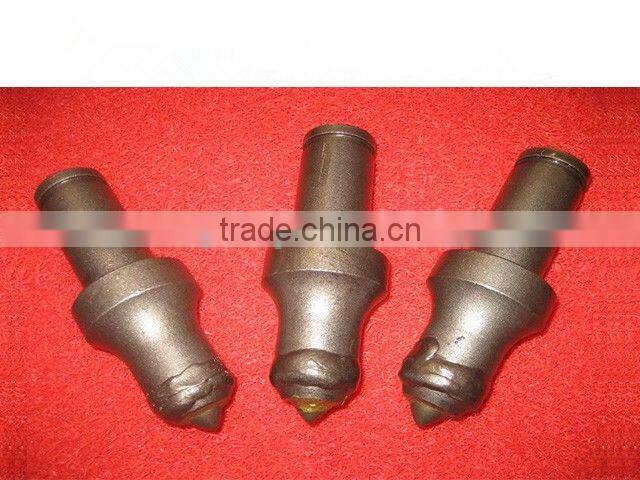

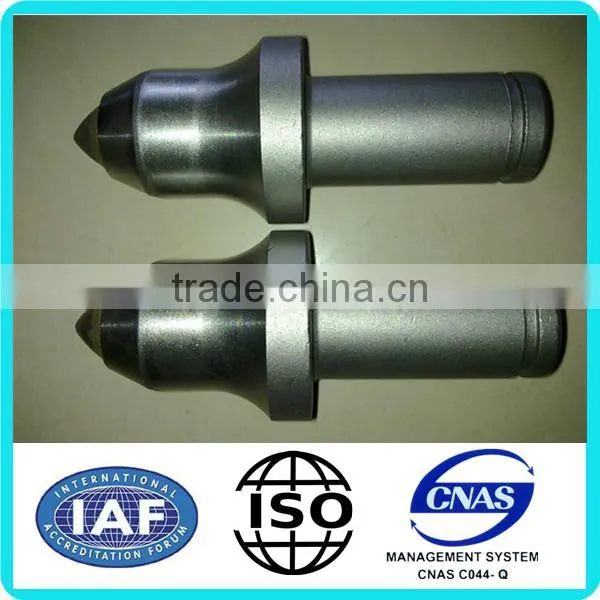

Help CenterShearer and Tunneling Machine Truncation Tooth
Related Products
-
Mining Picks for Development Machine/entry-driving Machine/heading MachineNegotiableMOQ: 10 Pieces -
YA/YK Series Chemical Industries Vibrating Machine Circular Vibrating ScreenNegotiableMOQ: 1 Set
-
YA/YK Series Circular Vibrating Screen yk Series Circular Vibrating ScreenNegotiableMOQ: 1 Set
-
Xinwan Jaw Crusher Quarry Machine Used in Mining With Low PriceUS$ 3,000 - 50,000MOQ: 1 Piece
-
Coal Mining Picks in All Sizes Coal Cutting Picks To Sell Mining PickNegotiableMOQ: 10 Pieces
Specifications
1.High resistance and wear ,longer work life.2.Customized acceptable.
3.ISO9001:2008.
We choose high quality steel, and high quality tungsten carbide tip via forging, welding, heat treatment. Steel body, made by material 42CrMo, heat treatment with 40-44HRC hardness, has high toughness and wearable character. Tip is made by material tungsten carbide, and Suitable Grade Selected according to the Target Projects, Which are to make sure the good performance during working.
A. Steel material.
We only use quality 42CrMo as steel body. This kind of steel of ultra high strength steel,
intercritical quenching conditions can be obtained in martensite and a small amount of uniformly
distributed fine ferrite, this organization under the premise of ensuring the strength of improved
toughness. Has high wear resistance, high fatigue limit, strong toughness, which is to ensure the
quality of cutting teeth of the basic factors.
Chemical composition
C |
Si |
Mn |
Cr |
Mo |
S |
P |
Ni |
Cu |
0.38~0.45% |
0.17~0.37% |
0.50~0.80% |
0.90~1.20% |
0.15~0.25% |
≤0.035% |
≤0.035% |
≤0.030% |
≤0.030% |
B.Heat treatment Technology
In the light of bit alloy heads around the portion of generally wear,
we developed the super abrasive cutting tooth, in this area have been adopted for ultra
deep w alloying process, while the hardness is not greatly increased, but the infiltration
of component greatly enhanced wear resistance, but still maintain toughness, and using
high quality imported hard alloy head. After many trial effect of mine, has reached or even
exceeded imports pick.
C.Braze welding technology
We use the alloy head outer circle after grinding, the tooth body alloy hole through the CNC
lathe processing, strict tolerances to ensure weld full degree, either the alloy head or steel body,
must be approved by the ultrasonic cleaning machine. The use of high-quality solder, guarantees higher welding strength.Configuration of advanced welding automation
line equipment, so that product to guarantee the stability of the hardness and toughness of the premise,
higher efficiency, to achieve a faster speed of delivery.
D.Hard alloy head selection
We produce high quality cutting tooth, adopt world famous brand the production of hard alloy.
Its performance through the use of actual close to or even exceed the level of imports.

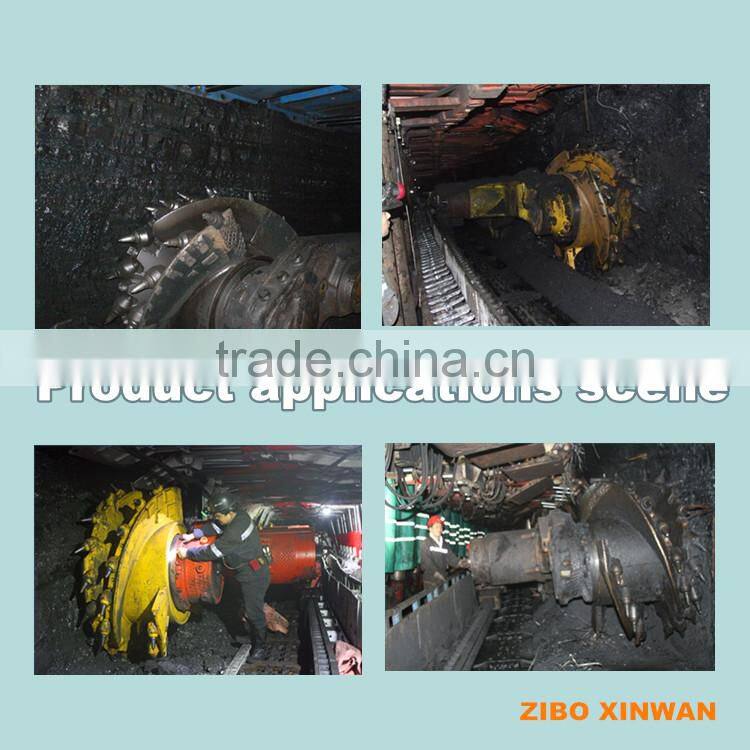

Either the shearer or tunneling machine truncation tooth, whether soft or hard rock, can be configured
to material.
E.Production process
Blanking→Forging→NC machining→Welding wear-resisting layer→Borehole→Brazing ( quenching )→Sand blasting→Inspection→The circlip→Anticorrosive treatment→Packing
Coal mining pick models mostly as: U62,U765,U76,U82,U84,U85,U92,U94,U95,U138 ; Tunneling machine pick models mostly as: U47, S100, S120, S135, S150, S160, U170, 75C; Rotary pile drill pick models mostly as: C21,C23,C31,C34,C35,3050(B47K22), 3060, special types can be ordered for quantitative production.
1.The customer service personnel 24 hours online, at any time to answer your questions. Our service more professional, to make it easier.

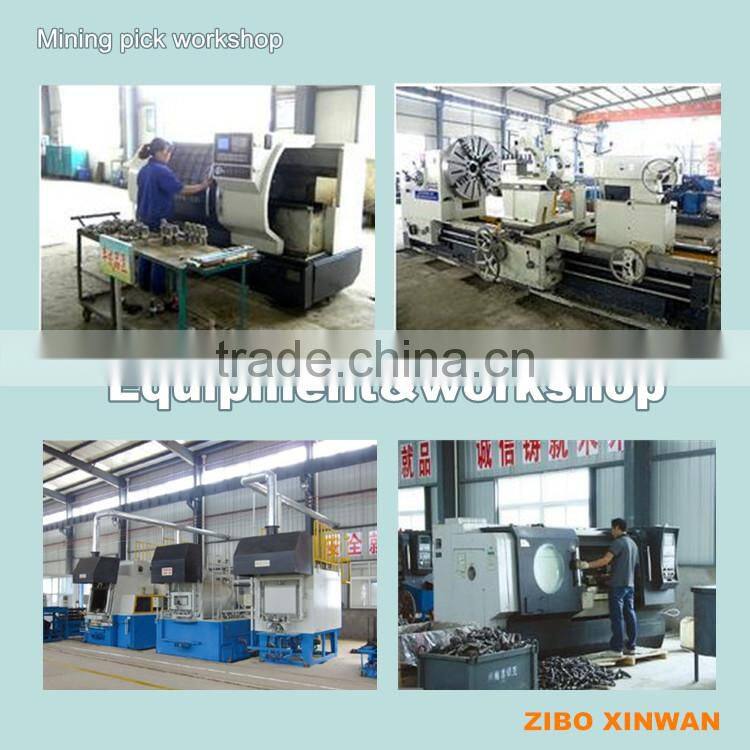

2. Rich production experience, advanced equipment, standardization workshop, strict quality testing to make our products durable.
3. Thousands of buyers witnessed our credibility, we sincerely cooperate with you.
1. Payment Term: 30% TT in advance+70% balance before shipment or total advance.
2. The remitter is responsible for the remittance charge.
3. The working time is about 20 days from receive payment.
