HAIGINT Misting Cooling System
Water Timer Specifications
| Brand Name | HAIGINT |
| Type | Garden Water Timers |
| Material | Plastic |
| Misting water timer plastic | ABS |
| Misting water timer Use of pressure | 0-100psi |
| Misting water timer frequency | one day 16 times |
| Misting water timer use for | garden irrigaion |
| Packaging Detail | 1pc/Color box |
| Delivery Detail | 7-35days |
| Misting water timer cycle timer | in one week |
Micro-controller is apply for irrigation in small garden. Top floor and balcony. Especially in dry weather.

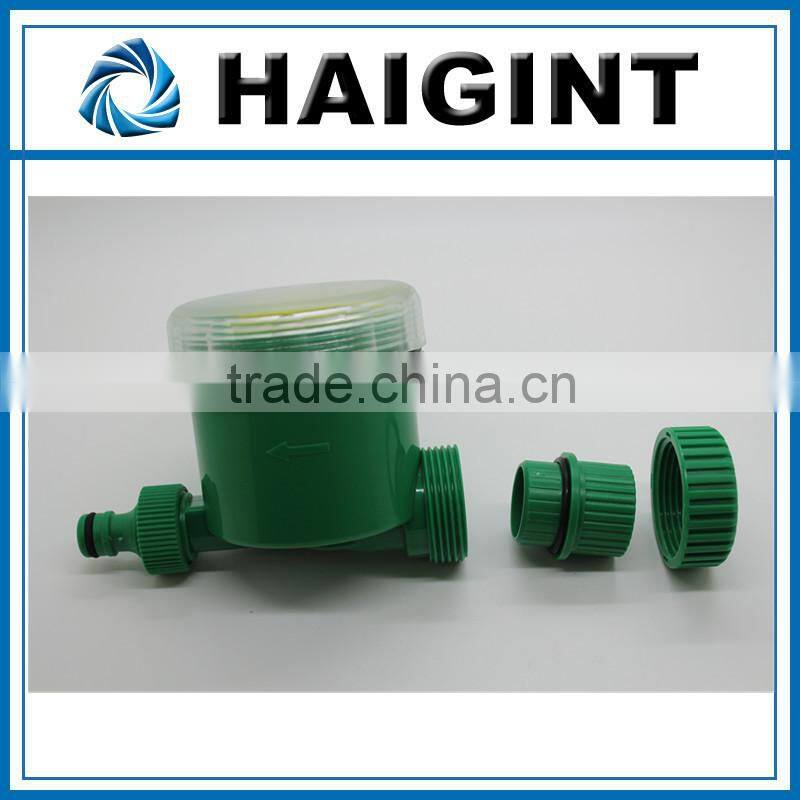

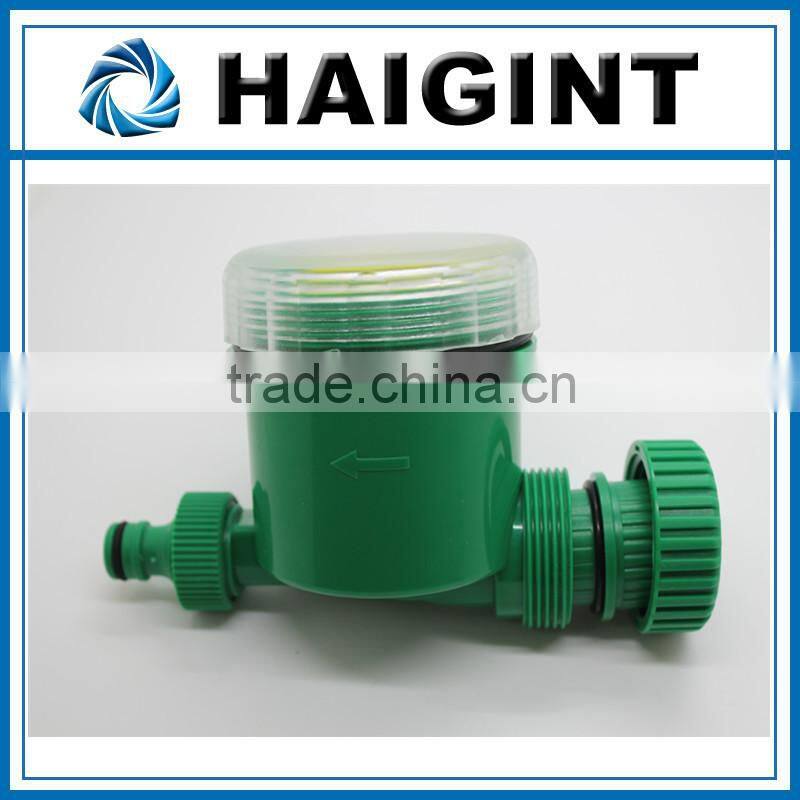

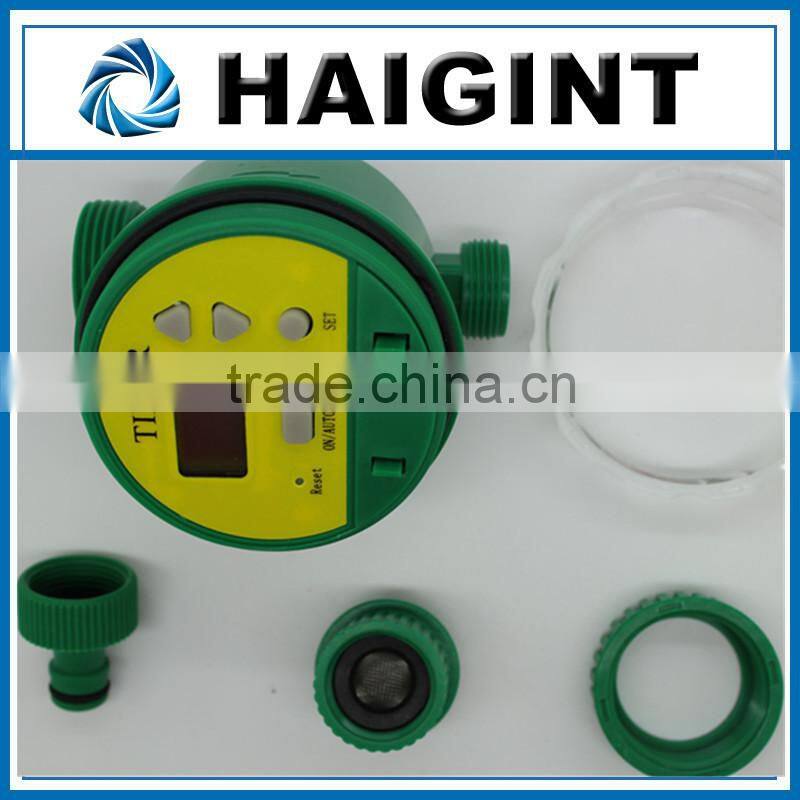

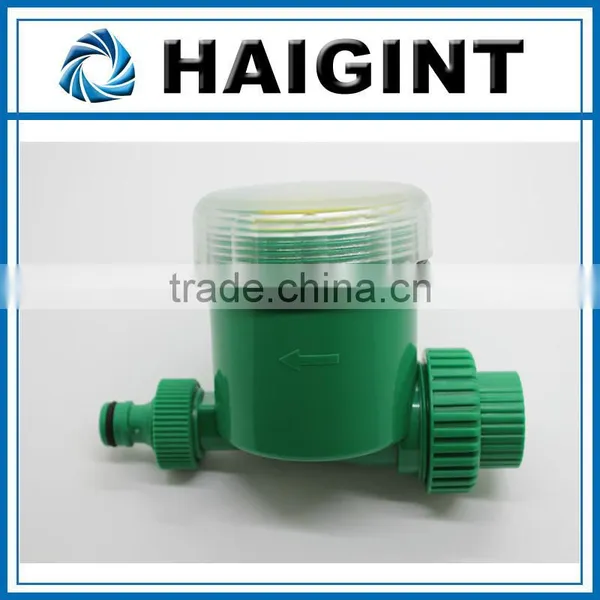

Digital second Water Timer
ABS body
Tap adaptor suits:3/4'
Output: quick adapt
| Item | Function |
| Display function | LCD screen, with control system display irrigation status and standard time from Monday to Sunday,can control one inch electromagnetic valve. |
| Power | One battery ,voltage 9v(rectangle) |
| Irrigation time | Minimum one minute,maximum:9hours and 59minutes |
| Irrigation frequency | At least one per day, maximum is eight per day. |
| Work pressure | 0-6 kilograms |
| Work temperature | 0-40centi-degree |
| With procedure | Single/multi procedure, routine, cycle, single day, many days |
| Switch | Automatic/without automatic, with adjustment flow rate button and manual whirl button |
| Inspection system of rainy | can automatic shut ,when the weather is rainy,with water save function |
| Fault resolution | LCD without display |
| 1,inspect the battery whether the battery have electricity or low battery. As above situation, should be change the battery. | |
| 2,If the controller have full battery, take out the battery, use the metal tools touch battery button, later shut circuit(take away metal tools),then reinstall the battery, LCD will be normal operation. |

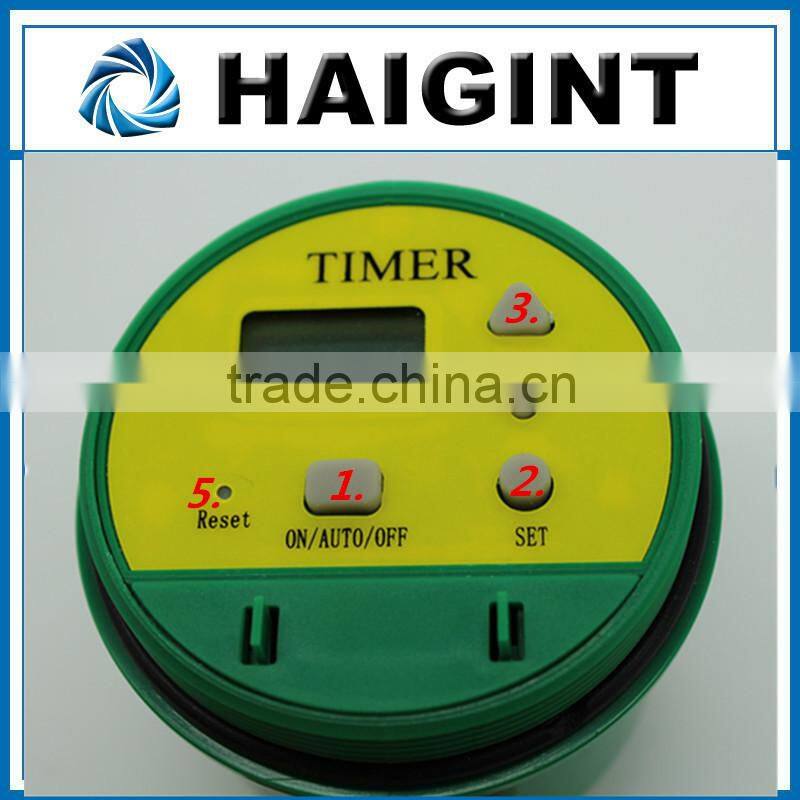

The details of the water timer
1.Program Button
Can choose ON, AUTO, OFF functional status
2.Setting Button
Can setting time in close time and open time
3.Increases Button
Can setting increase the time
4.Reduce Button
Can setting reduce the time
5.Reset Button
Can reset the program
Factory status: OPEN time 5 minutes, CLOSE time 30 minutes. LCD Display status OFF.
Timer Features
Program button can switch ON/AUTO/OFF
When LCD display the ON program. Product will open valve in 5 seconds.
When LCD display the AUTO program. Program will cycle according to the procedures.
When LCD display the OFF program. Product will off valve in 5 seconds. Then you can use ‘SET’ to setting the close time and open time.
Close time: Max 96 hours 59 minutes 59 seconds, Min 5 seconds.
Open time: Max 24 hours 59 minutes 59 seconds, Min 5 seconds.
Product work with the close time and open time to cycle.
Description
Products in the first power, the valve will automatically close the valve, showing the state in the OFF state.
Products in factory cycle time; OFF time are 30 minutes, OPEN time are 5 minutes.
If you change the time to OFF time and OPEN time, the product will change by the time you work.
If you have the output displayed in the ON state, the product will be in 5 seconds, open the valve output.
If you set the time to open the valve is greater than 0, the time off valve is equal to 0. The output shows the product will be in AUTO mode after 5 seconds, open the valve output, waiting for the time you set the output end of the count, the valve will automatically shut down, the display will go to the OFF state.
Attention
If close time and open time is 0,or close time greater than 0 and open time is 0. The work displayed in the AUTO mode. Product will not work.
If close time and open time less than 5 seconds, Products will be the shortest working time of 5 seconds.
Set of recommendations:
If want to open the water once a day, every time the water for 30 minutes. You can set the OPEN time is 30 minutes,OFF time is 23 hours 30 minutes.(Same time each day irrigation)
If want two days to water once, you just check close time is set to 47 hours 30 minutes.Product longest set off valves for 4 days (96 hours).
We are a company specializing in misting cooling system, our other products as follows:

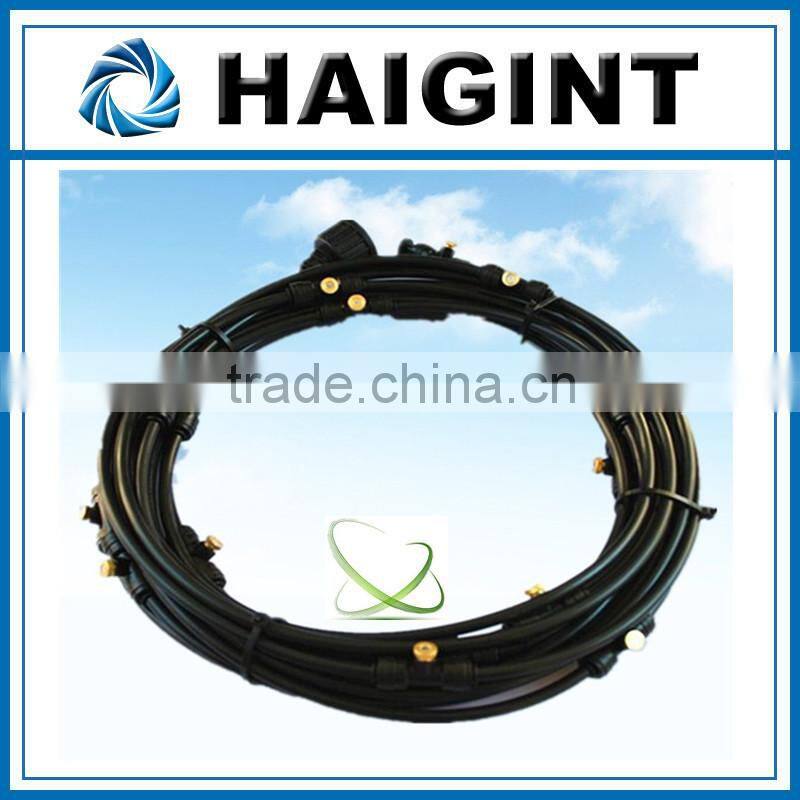

No.1 low pressure mistng system

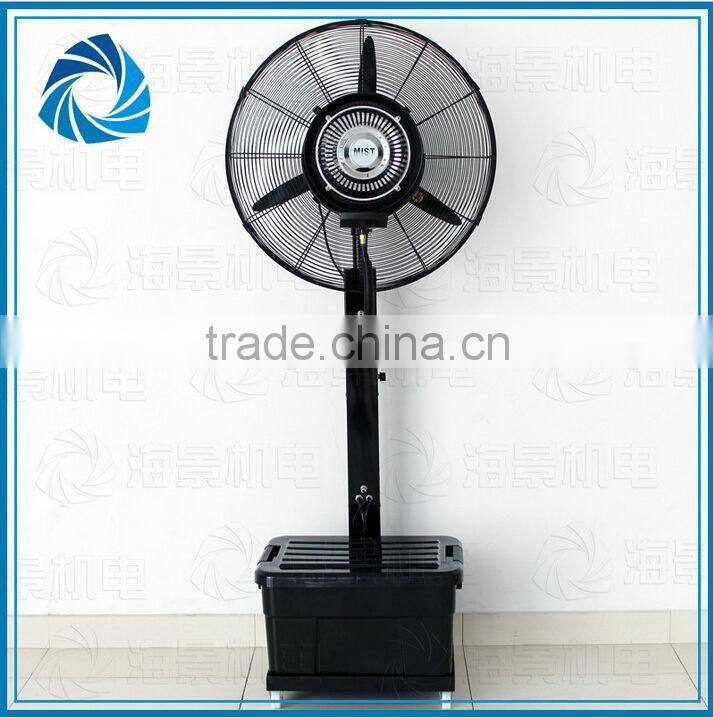

No.2 Centrifugal Misting Fan
