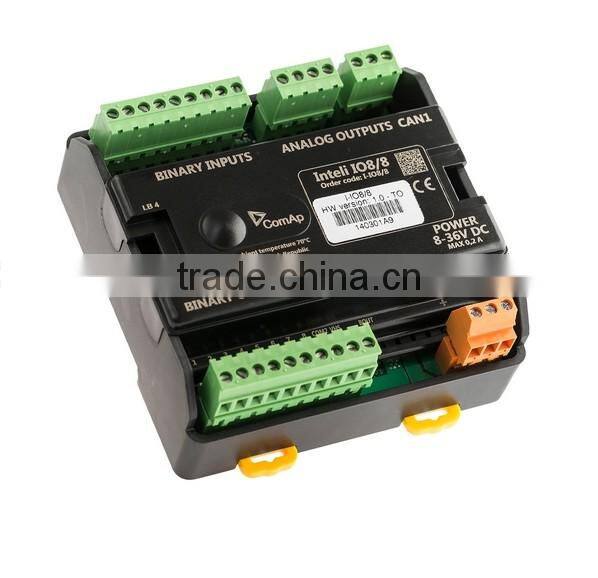

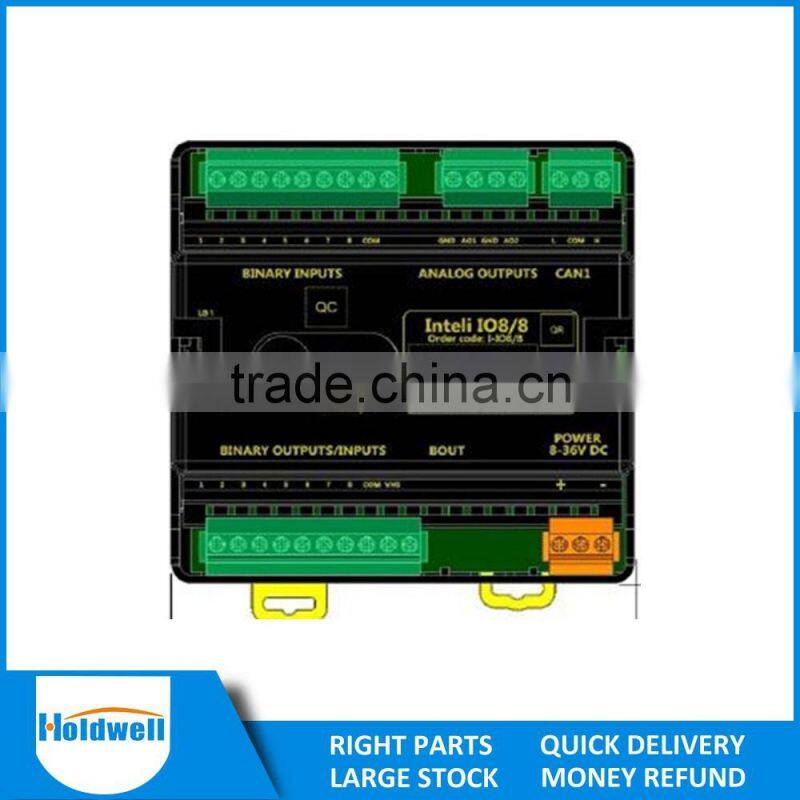

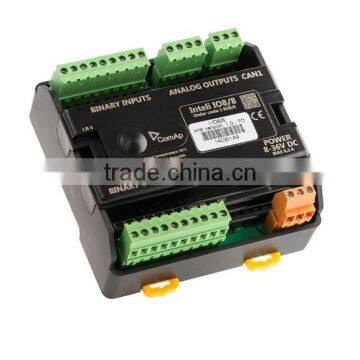

INTELI IO8/8 Moudle
Binary Inputs/Outputs and Analog Outputs Module
The extension module Inteli IO8/8 offers users more binary inputs and outputs for ComAp controllers. The unit offers the user the flexibility to configure the unit to have 8 binary inputs, 8 binary outputs, and 2 analog outputs, or 16 binary inputs, 0 binary outputs and 2 analog outputs via switches inside the controller. The Inteli IO8/8 is compatible with the InteliDrive DCU, InteliMains NT, InteliGen NT and InteliSys NT ranges of controllers.
Module is possible to configure (by switch on board) to two configurations:
1) Configuration 8/8
8 Binary inputs (options: pull up or pull down logic)
8 Binary outputs (options: Low side switch (LSS) or High side switch (HSS))
2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM (5V, adjustable frequency 200Hz-2,4kHz))
2) Configuration 16/0
16 Binary inputs (options: pull up or pull down)
0 Binary outputs
2 Analog outputs (options: voltage (0-10V), current (0-20mA) and PWM (5V, adjustable frequency 200Hz-2,4kHz))
Up to 12 Inteli IO8/8 module (in configuration 8/8) can be connected to the controller (InteliSys NT / InteliGen NT / InteliMains NT)
Up to 6 Inteli IO8/8 module (in configuration 16/0) can be connected to the controller (InteliSys NT / InteliGen NT / InteliMains NT)
Up to 4 Inteli IO8/8 (in configuration 8/8) can be connected to the InteliDrive DCU controller.
LED indication of each Binary input/output
Safety function of Binary output: Regular reading of the real state of the Binary output
All settings are carried onboard switch or electronically (No jumpers)
