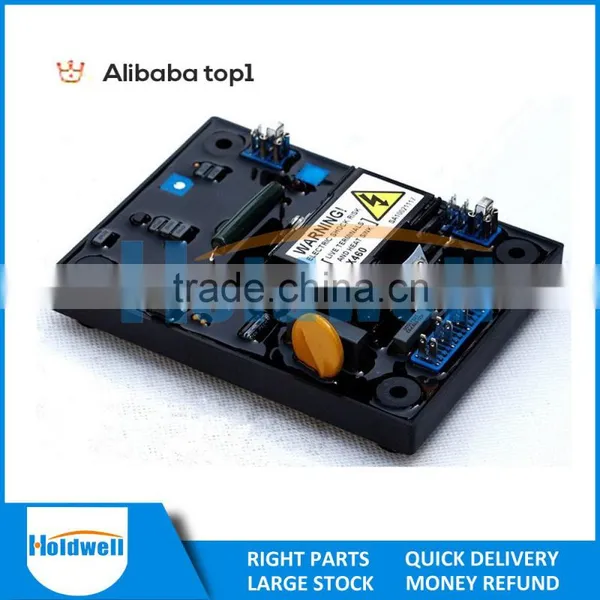

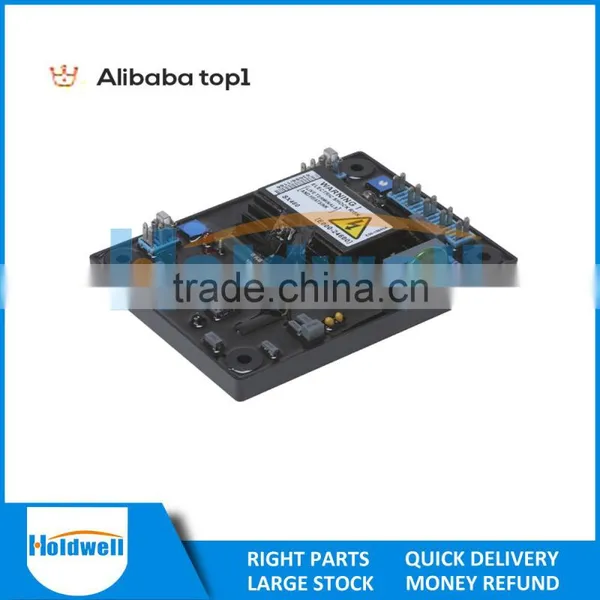

Holdwell Stamford SX460 Automatic Voltage Regulator generator AVR
SX460 is a half-wave phase controlled thyristor type Automatic Voltage Regulator and forms part of the excitation system for a brushless generator.
In addition to regulating the generator voltage, the AVR circuitry includes under speed and sensing loss protection to ensure safe, reliable control of the generator.
Positive voltage build up from residual levels is ensured by the use of proficient semiconductors in the power circuitry of the AVR. Which is linked with the main stator windings and the exciter field windings to offer closed loop control of the output voltage with load regulations of +/- 1.5%.
Stability adjustment
Under frequency roll off adjustment
| SX460 | |||
| Input | Voltage | Jumper selectable 95-132V ac or 190-264V ac | |
| Frequency | 50-60 Hz nominal | ||
| Phase | 1 | ||
| Output | Voltage | Max 90V dc at 207V ac input | |
| Current | Continuous 4A dc, intermittent 6A for 10 secs | ||
| Resistance | 15 ohms minimum | ||
| Regulation | +/- 1.0% | ||
| Thermal Drift | 0.05% per deg. C change in AVR ambient | ||
| Typical system response | AVR response | 20ms | |
| Filed current to 90% | 80 ms | ||
| Machine Volts to 97% | 300ms | ||
| External voltage adjustment | +/-10% with 1 k ohm 1 watt trimmer | ||
| Under frequency protection | Set point | 95% Hz | |
| Slope | 170% down to 30 Hz | ||
| Unit power dissipation | 12 watts maximum | 10 watts maximum | |
| Build up voltage | 4 Volts @ AVR terminals | ||
| Environmental | Vibration | 20-100 Hz,50mm/se | |
| 100Hz – 2kHz, 3.3g | |||
| Operating temperature | -40 to +70 Deg. C | ||
|
Relative Humidity 0-70 Deg. C |
95% | ||
| Storage temperature | -55 to +80 Deg. C | ||

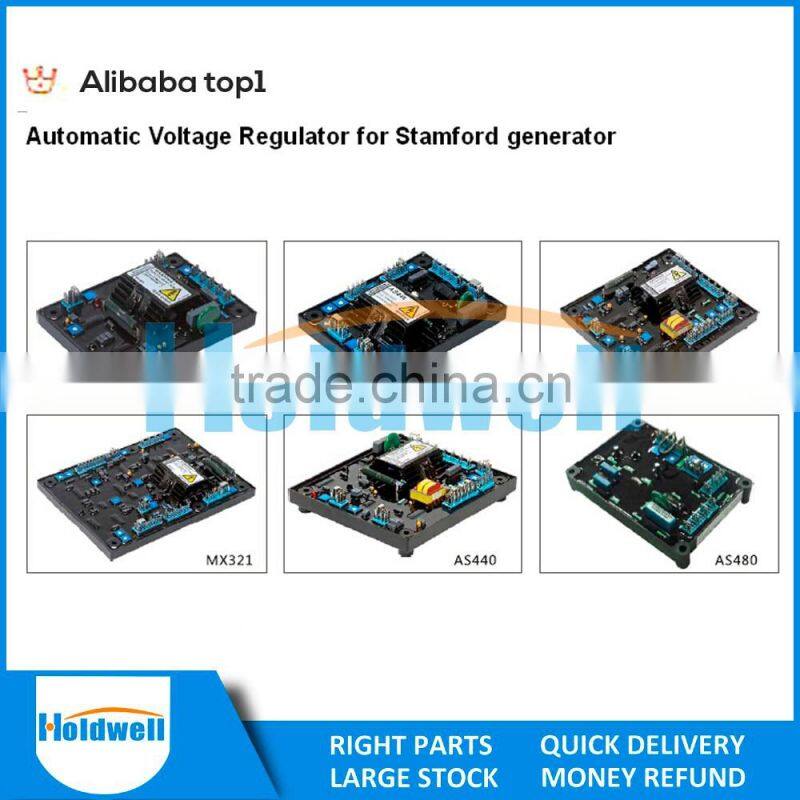

A lot of AVR for stamfor generator also can be supplied.
If you want to know more details, please click the below photo.

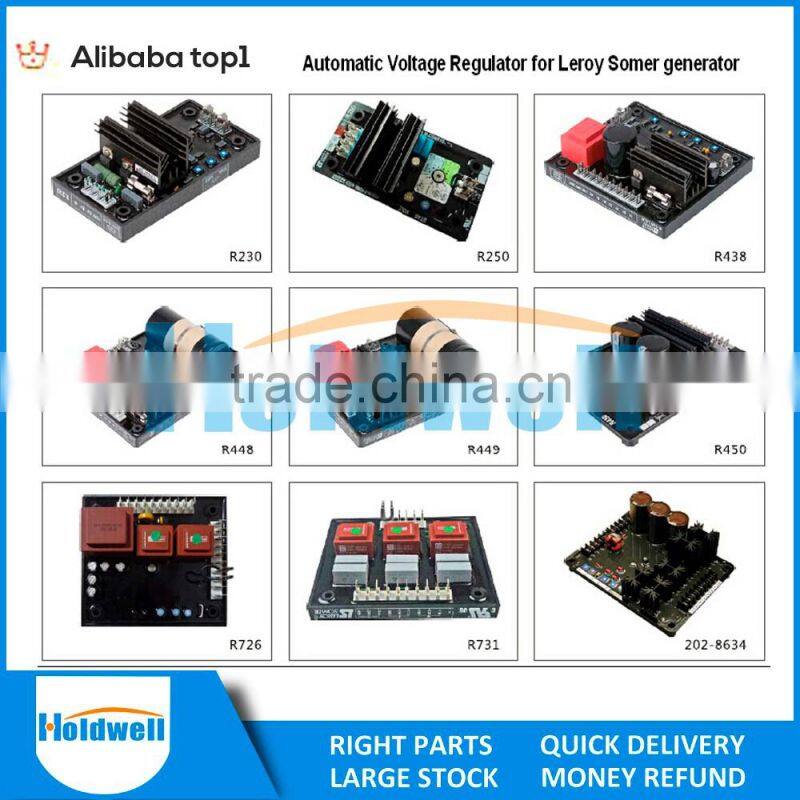

A lot of AVR for Leroy Somer generator also can be supplied.
If you want to know more details, please click the below photo.

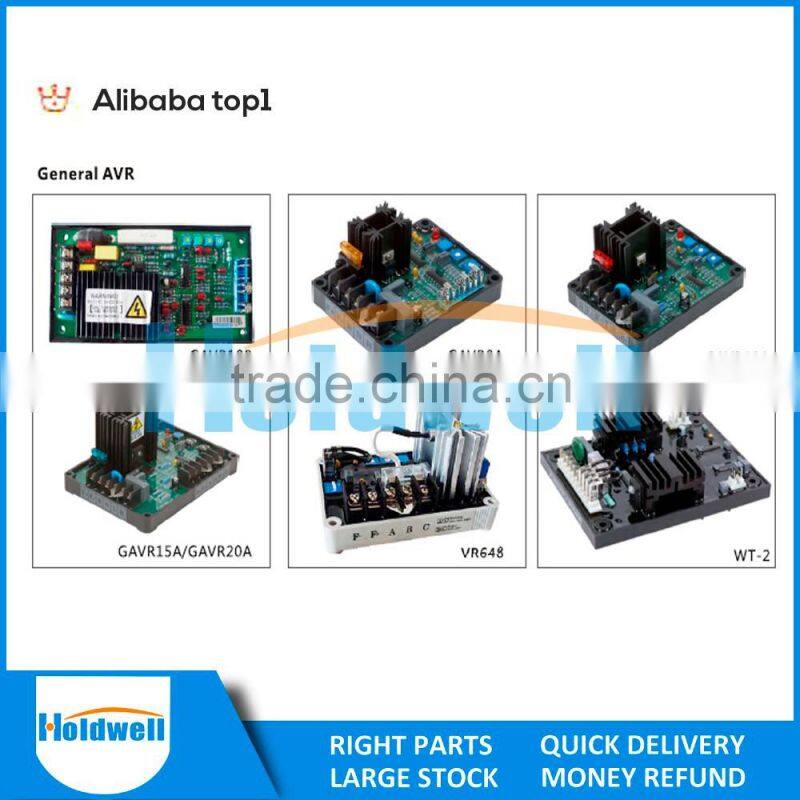

Besides, a lot of genarator AVR also can be supplied.
If you want to know more details, please click the below photo.
