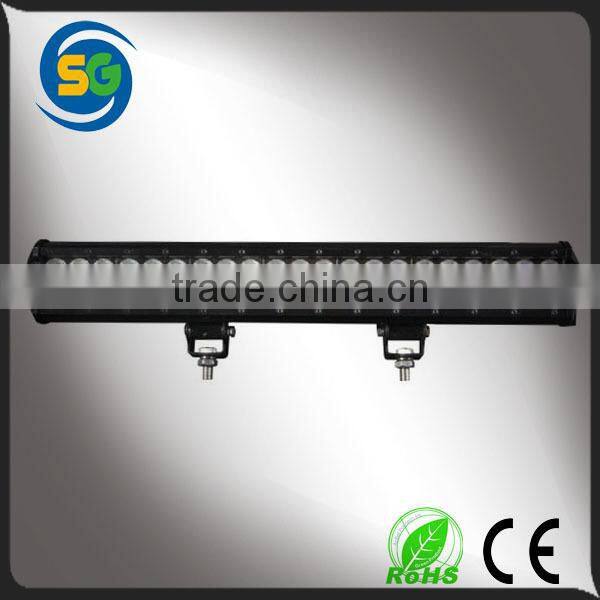

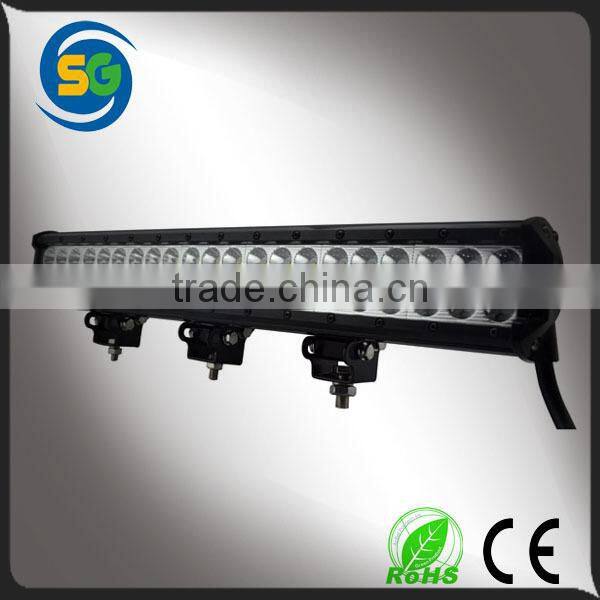

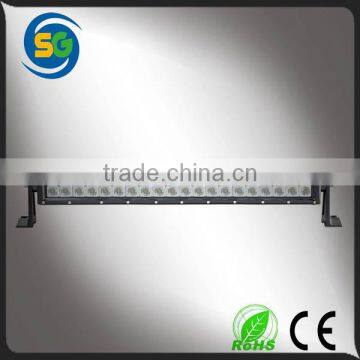

New design 20'' 126W led light bar double row straght led offroad light bar
Description:
. LED Power: 126W, 8800lumens
. Operating Voltage: 10-30V DC
. Waterproof rate: IP67
. High intensity CREE LEDs
. Color Temperature: 6500K
. 30000 hours above life time
. Beam Angle: Flood /spot beam optional
. Material: Die-cast aluminum housing

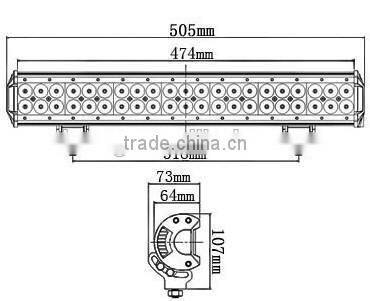

. Dimensions: 20 inch
Item No. |
SG-LS126D | |
super bright led light bar Power |
126W |
|
Voltage |
9-32V DC |
|
Light Source |
High intensity CREE LEDs |
|
Luminous Flux |
8800lm |
|
Color Temperature |
3000-6500K |
|
led bar light for truck IP Rating |
IP67 |
|
Beam Angle |
Spot beam/ Flood beam |
|
truck head lamp Material Material |
Die-cast aluminum housing |
|
Mounting Bracket |
Stainless steel bracket |
|
Lens Material |
PMMA |
|
Life span |
30000 hours |
|
Warranty |
24 months |
Dual Row LED Light Bar Related Products | ||||||||
Item No. |
Input Voltage |
LED Power |
Light Source |
Dimensions |
IP Rating |
Shape |
Beam Angle |
Life Span |
SG-LS36DA |
DC9-32V |
12*3 W |
CREE LED |
7.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS72DA |
DC9-32V |
24*3 W |
CREE LED |
13.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS120DA |
DC9-32V |
40*3 W |
CREE LED |
21.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS180DA |
DC9-32V |
60*3 W |
CREE LED |
31.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS240DA |
DC9-32V |
80*3 W |
CREE LED |
41.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS288D |
DC9-32V |
96*3 W |
CREE LED |
50 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS18D |
DC9-32V |
6*3 W |
CREE LED |
4 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS36DB |
DC9-32V |
12*3 W |
CREE LED |
7 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS54D |
DC9-32V |
18*3 W |
CREE LED |
9 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS72DB |
DC9-32V |
24*3 W |
CREE LED |
12 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS90D |
DC9-32V |
30*3 W |
CREE LED |
15 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS108D |
DC9-32V |
36*3 W |
CREE LED |
17 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS126D |
DC9-32V |
42*3 W |
CREE LED |
20 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS180D |
DC9-32V |
60*3 W |
CREE LED |
28 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS234D |
DC9-32V |
78*3 W |
CREE LED |
36 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LC72D |
DC9-32V |
24*3 W |
CREE LED |
13 inch |
IP67 |
Curved |
Spot / Flood |
30,000h |
SG-LC120D |
DC9-32V |
40*3 W |
CREE LED |
21.5 inch |
IP67 |
Curved |
Spot / Flood |
30,000h |
SG-LC180D |
DC9-32V |
60*3 W |
CREE LED |
31.5 inch |
IP67 |
Curved |
Spot / Flood |
30,000h |
SG-LC240D |
DC9-32V |
80*3 W |
CREE LED |
41.5 inch |
IP67 |
Curved |
Spot / Flood |
30,000h |
SG-LC288D |
DC9-32V |
96*3 W |
CREE LED |
50 inch |
IP67 |
Curved |
Spot / Flood |
30,000h |
SG-LS36D |
DC9-32V |
12*3 W |
Epistar LED |
7.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS72D |
DC9-32V |
24*3 W |
Epistar LED |
13.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS120D |
DC9-32V |
40*3 W |
Epistar LED |
21.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS180D |
DC9-32V |
60*3 W |
Epistar LED |
31.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
SG-LS240D |
DC9-32V |
80*3 W |
Epistar LED |
41.5 inch |
IP67 |
Straight |
Spot / Flood |
30,000h |
New design 20'' 126W led light bar double row straght led offroad light bar
1. Waterproof
2. High brightness
3. Competitive price
4. High quality
5. Easy installation
Application:
Apply to different types of trucks, off-road vehicles, 4x4, military, mining, boating, Marine deck lighting, Caravan awning lighting),
farming, heavy equipment etc
Feature:
The light output of these LED light bar is simply phenomenal, they produce a mass of cool white daylight (6500k), free of
artifacts and focus dead spots. They light the entire forward viewing area, giving greater visibility without eye fatigue.
Their super efficient reflector uses patented Hybrid Technology, allowing these lights to runs at 93% optical efficiency, which is
unmatched in the industry. Each LED light bar consists of two rows of high intensity CreeLEDs, each sitting in their patented
reflector assembly, measuring about 1 inch square. Each LED is independent, so if one LED fails the other LEDs will not and
the LED light bar still works fine.
Package includes:
1pcsx 126W LED light bar
Brackets
Packing way:
Neutral box 580*115*100 mm/pcs, 2.85 kg/pcs
Package: 600*250*345 mm /6pcs, 17.6kg/carton
LOGO Printing |
Please sent us your LOGO original file. We will make sketch design for you. 1C/2C/3C or 4C / 1 Position / 2 Position, etc. |
Customized 4C Color Box |
We will sent our design to you for editing |
Customized White Box |
|
Customized Pantone Color Box |
|
Shipping Way |
1) By express Door to Door (DHL, EMS, FEDEX, UPS, etc.) |
|
2) By Air (kindly let us know your name of airport) |
|
3) By Sea (kindly let us know your name of sea port) |
Payment |
1) T/T Bank Transfer |
|
2) Western Union |
|
3) PayPal (it need extra handle fees) |
Sample |
Normally 3-5 working days after confirm payment |
Small Quantity |
Small tried order is available when we have it in stock |
MOQ |
If products were out of stock, it need MOQ to manufacture for you. |
Our Services:
1. Professional sales team for quick response online and inquiries feedback.
2. Outstanding product design team for developing and customizing new products.
3. Excellent production line for high quality products and punctual delivery time.
4. Quality control department for testing new products and every lights before sending out.
Why choose us:
Believe in us, believe in your choice:
1-stop solution supplier for OEM/ODM
8 years on LED lighting developing
FAQ:
1. How to place an order for your products?
Buyers need to send required product details via e-mail. Then a reasonable quotation as request would be provided.
2. We' d like to know the supply ability of your company.
Our company have 4 advanced production lines with a monthly production capacity 30000 units, it can Quickly adapt to changes in your order quantity. Usually samples will be sent in 3-5 days, official orders will be sent in 7-9 days.
3. What can you do to help me control stock level?
A) We are using the efficient packaging for our products to save space.
B) We can recommend you the hot selling items at your market for your reference.
C) We will keep a stock for our regular customer to save the delivery time.
D) We can do drop-shipping for our customer.
4. What is the packaging for your products?
Each product with a neutral box, and we can also do OEM/ODM for you.
5. What kind of warranty you offer?
All of our products provided 24 months warranty.
Shenzhen SG Electronic Co.,Ltd. is established in 2007.
As a professional leading manufacturer for LED lighting products, our factory covers an area of 3000 square meters, SG has advanced manufacturing equipment, professional knowledge and rich experience on management. We focus on R&D and innovation for LED engineering vehicles lighting and special vehicles mobile lighting, which ensure our product keeps leading the market.
1. All our products are comply with ISO 9001:2008 Quality Management System Standard. our products have CE, RoHS, IP68 certificates and vibration testing report.
2. SG work to develop and refine new products on OEM&ODM basis. We have professional automotive lights knowledge and rich experience on manufacturing. Professional OEM&ODM service are provided for you.
3. We have our own QC Department with professional testing equipment, and strictly control high performances testing such as water-proof, shock-resistance, vibration resistance, aging test, high & low temperature test, salt spray test etc.
Our products including LED work light, LED light bar, Rechargeable LED light, LED strobe&warning light, LED work light with stand, LED tail light, LED beacon, etc.
All the inquiries will be replied within 24 hours.
