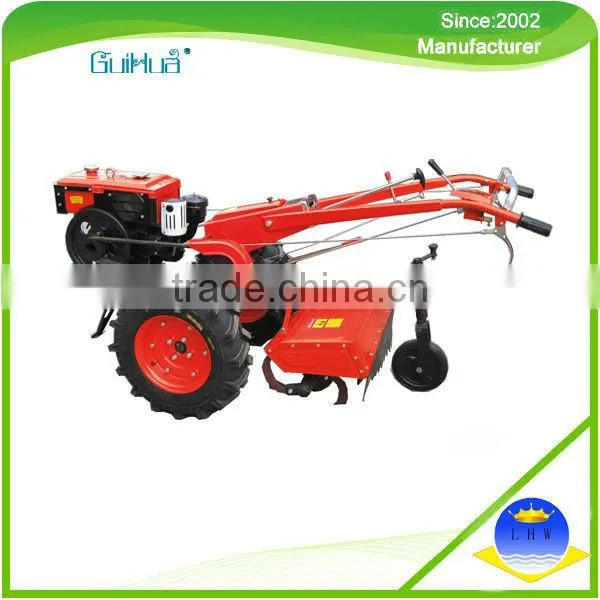

12hp Mini Walking Tractor Hot Selling

12hp Mini Walking Tractor Hot Selling thumbnail-1
12hp Mini Walking Tractor Hot Selling photo-1
US$ 580 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Weifang Guihua Agricultural Equipment Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Garden Tractor
Drive Type Gear Drive
Power(W) 8.82K
Certificate Other, ISO
Brand Name Guihua
Model Number 101-12
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas



12hp mini walking tractor hot selling



We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.



Chassis Information

Model

GH-121

Overall Dimensions:(L×W×H)

2950×980×1240mm

Wheel tread

Rubber wheel: 570-810mm; Iron wheel: 850-1090mm

Tyre Size

Front 6.00-12 (rubber);  Rear 4.00-8 (rubber)

Ground clearance

210mm

Net Weight (without rotary tiller)

380 kg

Net Weight (with rotary tiller)

480 kg

Working weight (with rotary tiller)

480 kg

Tyre Inflation Pressure(kg/cm²)

For Cultivation 1.1~1.4

For Carrying  1.8~2.0

Speed (km/hr)

Forward 1.39, 2.47, 4.15, 5.14, 9.12, 15.30

Reverse 1.10, 4.10

Rotary tiller

Blades number: 18

Width 600 mm

Turning Speed: 1st: Low:220, High:251 2nd: Low:233 High:291

Blades: 2 sets (1 for dry&1 for wet land cultivation)

Engine Information

Model

ZH195N Diesel

Type

Single cylinder,4-stroke,horixontal,water-cooled,direct injection

Cooling System

Condenser (Radiator, made by brass metal)

Rated power

12.24HP(9KW)

Rated speed

2000rpm

Fuel Tank Capacity

9 kg

Fuel Consumption (g/kw.hr)

≤258.4

Structure Weight (kg)

150

Engine Oil Sump (kg)

2.5

Air Cleaner

Oil Bath Type

Fuel filter

Duel Fuel Filter(Primary and Secondary) for controlling fuel adulteration

Starting system

Manual Cranking Type

Clutch

Multiple Dry Plate, Friction Type

Lubricating way

Combine pressure and splashing

Other technical data

Gear Box

Six Speed Forward, Two Speed Reverse

Main Frame Implements

1) Anti-skid steel wheel(with 10 sprockets and extra bit) – 1 set

2) 1 nos. rear iron wheel for mud cultivation

3) Rotary blades 2 sets (1 for dry&1 for wet land cultivation)

Clutch

Double friction flat of constant combination

Brake System

Drum Type

Accessories

1 set tools and 1 set fast moving spare parts

MOQ

1units

Container Load QTY

20GP

20units(with plywood case package), 30units(nude packing)

40HQ

40units(with plywood case package)



12hp mini walking tractor hot selling12hp mini walking tractor hot selling12hp mini walking tractor hot selling12hp mini walking tractor hot selling





we would like to try our best to help you to choose the suitable type!
