Standard 15hp 2wd Diesel Engine Mini Walking Tractor

Weifang Guihua Agricultural Equipment Co., Ltd.
Standard 15hp 2wd Diesel Engine Mini Walking Tractor thumbnail-1
Standard 15hp 2wd Diesel Engine Mini Walking Tractor thumbnail-2
Standard 15hp 2wd Diesel Engine Mini Walking Tractor photo-1
Standard 15hp 2wd Diesel Engine Mini Walking Tractor photo-2
US$ 750 - 1,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 11K
Certificate Other, ISO
Brand Name Guihua
Model Number LHW121-15EC-C
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

 standard 15hp 2wd Diesel Engine mini walking tractor

Description of mini walking tractor  LHW121-15EC-C







Engine



Pattern

Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled

Model

1100

Total displacement Capacity(L)

0.638L(1) / 0.9(2)

Oil Consumption

(g/ km. h)

320

Engine Oil Consumption           (g/ km. h)

2.72

Rated Power(kw)

16

Rated Speed(rpm)

2200

















Machine Parameters

Type

Pull and Drive

Overall Size(mm)

2680*960*1250(without seat)

Wheel Tread(mm)

800

Minimum Ground Clearance(mm)

185

Minimum Turning Radius(m)

0.9

Structural Weight(kg)

360 (with connecting frame), 480(with rotary tiller)

Tyre

6.00-12

Theoretical Speed(km/h)

Forward:1.4,2.5,4.1,5.3,9.4,15.3

Reverse:1.0,3.8

Rated Traction(N)

2200

Gearbox

(3+1)×2

Cooling Type

Evaporation/ condensed

Rear-Wheel Diameter(mm)

340

 standard 15hp 2wd Diesel Engine mini walking tractor

standard 15hp 2wd Diesel Engine mini walking tractorstandard 15hp 2wd Diesel Engine mini walking tractor



We also supply OEM service.

we would like to supply the suitable tractors according to your detailed requirement.



Welcome your enquiry for our mini walking tractor,

we would like to try our best to help you to choose the suitable type!



standard 15hp 2wd Diesel Engine mini walking tractorstandard 15hp 2wd Diesel Engine mini walking tractorstandard 15hp 2wd Diesel Engine mini walking tractor







Our Services

 Reliable quality parts for assembling our 15hp walking trctor

standard 15hp 2wd Diesel Engine mini walking tractor



1.Engine

:standard 15hp 2wd Diesel Engine mini walking tractor

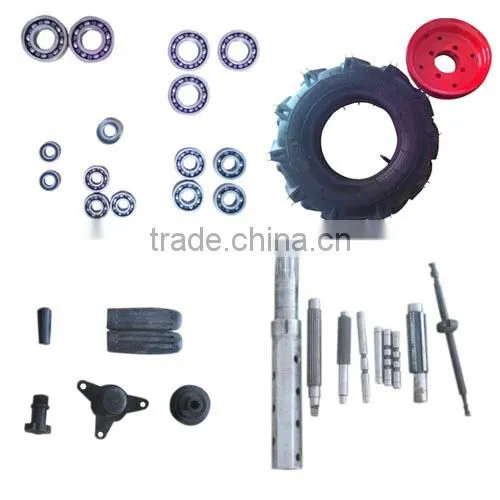

2.Accessories for our walking tractor

standard 15hp 2wd Diesel Engine mini walking tractor







Buying Guides

1. 12 months warranty since machine arrives destination port
2.  The spare parts:

(1) We will send you the tool box for free.
(2) For the vulnerable parts, we can send you for free, During the warranty, owing to the quality problem, we will send the replacement for free.
3. T/T (Telegraphic transfer) payment: 30% as deposit, 70% balance payment shall be paid before delivery
4. delivery time: 20 working days after confirmation of deposit
5. Loading: LCL in iron crate or in wooden case
