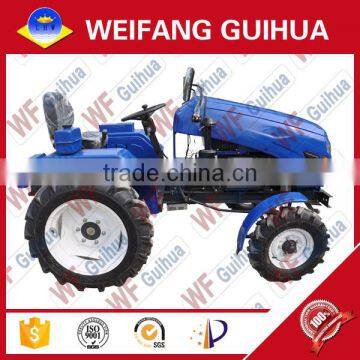

2017 Hot Sales 24 hp Farm Mini Tractor With New Hood

2017 Hot Sales 24 hp Farm Mini Tractor With New Hood photo-1
2017 Hot Sales 24 hp Farm Mini Tractor With New Hood photo-2
2017 Hot Sales 24 hp Farm Mini Tractor With New Hood photo-3
US$ 1,800 - 2,990 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 8820
Certificate Other, ISO
Brand Name LHW
Model Number LHW-12
Place of Origin Shandong, China
After-sales Service Provided Engineers available to service machinery overseas

2017 hot sales 24 hp farm mini tractor with new hood

1.Specification request 2017 hot sales 24 hp farm mini tractor with new hood

Overall tractor

Model

LHW-New Type

Transmission box:

Special steel casting transmission:20CrMnTi

Main dimension(mm):

LxWxH=(2400X1300X1320)

Wheelbase:(mm)

Frant:1050 mm;Raer:980 mm

front wheel(mm)

550 mm

Rear-wheel(mm)

750 mm

Mini-turning circus  radius:(m)

2.8 m

Structural weight:(kg)

540 kg

 speed:km/h

Forward speed

1.73,3.42,5.71,8.01,15.80,26.40

Reverse speed

1.37,6.35

 Engine

Engine model:

Diesel Engine

Fuel consumption per hour:

1.0L~1.5 L

Rated turning speed:

r/min      2400

Rated power:

20HP    24HP

Cooling type:

Evaporative cooling, Condense

 Drive system

Clutch

Dry type

Final drive:

Single stage spur gear transmission

Differential:

Support  conical planetary gear reducer

Transmission:

(3+1)*2 cylinder gear drive

Brake:

External shoe type brake

Drive type between engine and clutch:

Triangle belt

Drive type between PTO and hydraulic pump :

V-belt

Travel and turning system

Front axle:

Adjustable separating type

Front wheel

Front wheel   5.0-12

Rear-wheel

Rear-wheel   7.50-16

Tyre size and pressure of front wheel

Front wheel: 600kpa

Tyre size and pressure of Rear-wheel

Rear-wheel: 250kpa

Steering gear:

Worming gear type

Toe-in of front wheel(mm):

   4~8

Front-wheel camber:

20±30’

King pin inclination:

70±15’

Kingpin caster:

30±15’

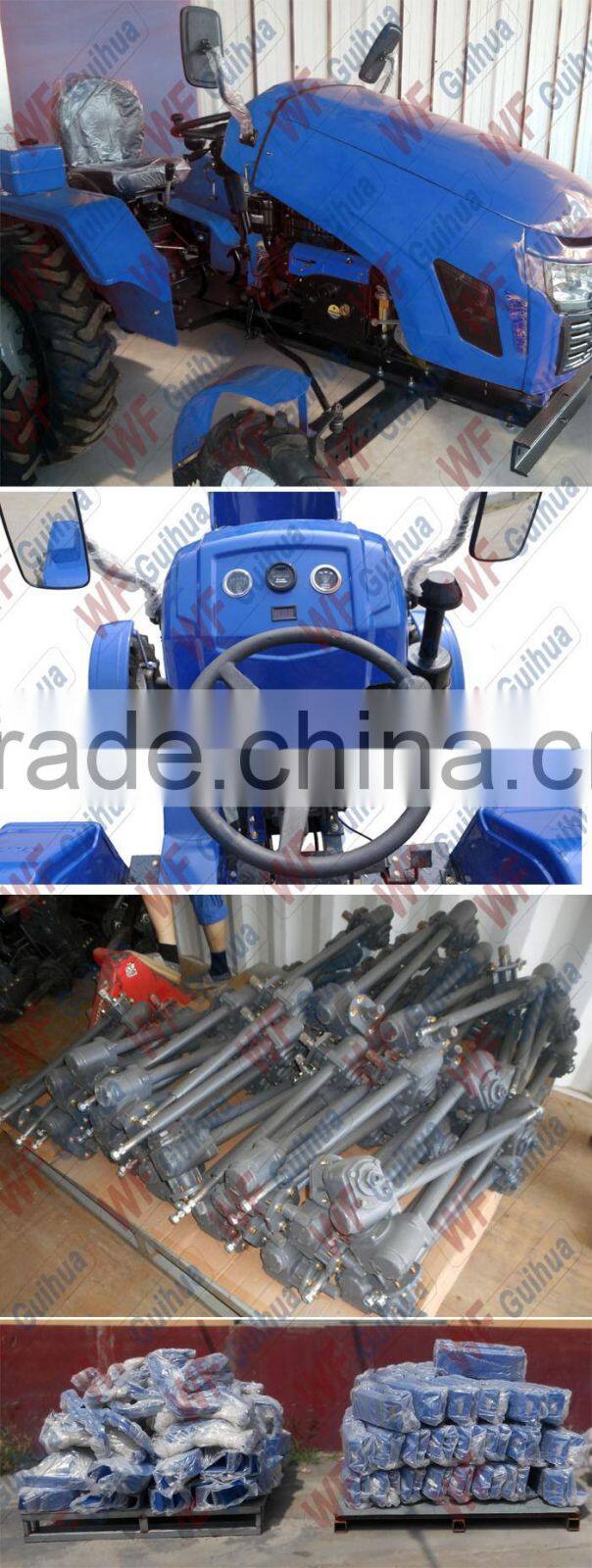

2017 hot sales 24 hp farm mini tractor with new hood2017 hot sales 24 hp farm mini tractor with new hood



2017 hot sales 24 hp farm mini tractor with new hood

All the under implements could be matched with our 2017 year factory sales

24 hp farm mini tractor,electric start mini tractor,electric start mini tractor,

more information,such as overall dimensions and so on.

Please contact us without hesitation.

2017 hot sales 24 hp farm mini tractor with new hood



2017 hot sales 24 hp farm mini tractor with new hood

1.)In bulk or package with plywood box;

2.)Transportation:by ship,by air or by train.

All according to you request.2017 hot sales 24 hp farm mini tractor with new hood



2017 hot sales 24 hp farm mini tractor with new hood

1.) Weifang Guihua Agricultural Equipment Co., Ltd. which  near to qingdao port  have  been in the

indurtry of  walking  tractor , farm  tractor and  its  accesorry  for  10 years  yet ,and daily output

more than 300sets.

2.) We strictly control the process of manufacturing form materials to finished products.

3.) Our  main  market  is  : vietnam , Russia , Ukraine and so  on

Welcome to  weifang , Shandong , China ,  welcome to our company !

2017 hot sales 24 hp farm mini tractor with new hood





2017 hot sales 24 hp farm mini tractor with new hood

1) MOQ for 2017 hot sales 24 hp farm mini tractor with new hood

1 UNIT

2) Spare Parts

The Easy damage parts will be sent you together with the tractor. And in warranty period,

if the spare part is not work ,because of the quality,  new parts will be sent to you for free

3) Shippment

We can help you arrange shippment

4) Delivery Time

One container:15-30 days.

5) Warranty Time

Completes service system, one year since arrival of destination port.

6) Payment  Terms

T/T , 30 % as advance deposit ,70% balance against after received the copy of B/L ; L/C

7) Tractor Logo

We have our own logo, and we also can make your own logo in your order for free

8)  Package and loading quantities

Nude Package:50 sets/40 HQ for mini tractor, 95 sets /40 HQ for walking tractor.

9) Implements

Mower, Plough, Trailer, Rotary tiller, or as your requirements.

10) Parts Supply

Complete parts Workshop, and can supply all parts.

For More Details, Pls Kindly Contact Me and I Will Answer You Within 24 hours!

2017 hot sales 24 hp farm mini tractor with new hood
