Chinese SWP Series Cardan Shaft Coupling

Name: Chinese SWP Series Cardan Shaft Coupling
Brand: YONGFENG
SKU: 140109570
Availability: InStock

Ningbo Yinzhou Yunlong Yongfeng Machinery Parts Factory

US$ 50 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Zhejiang, China

Brand Name:

YONGFENG

Model Number:

SWP, SWC

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai Ningbo Port

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Zhejiang, China

Brand Name YONGFENG

Model Number SWP, SWC

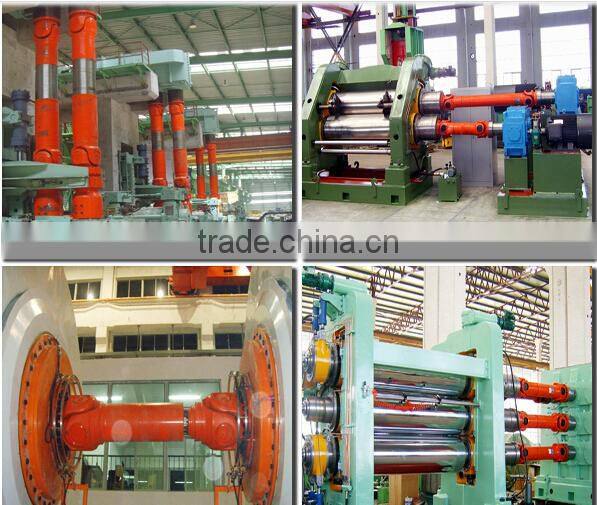

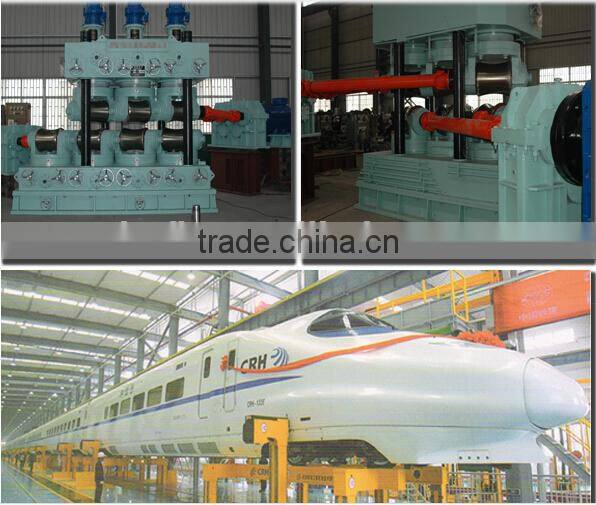

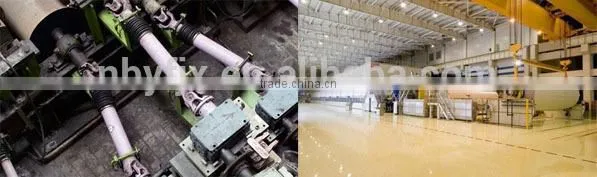

Application Metallurgy Industry,Iron & Steel Industry,Petroleum Industry, Paper Making,such as metal machinery,mill machines,oil machinery,etc

Dimensions Customized ,as per your samples or design drawing

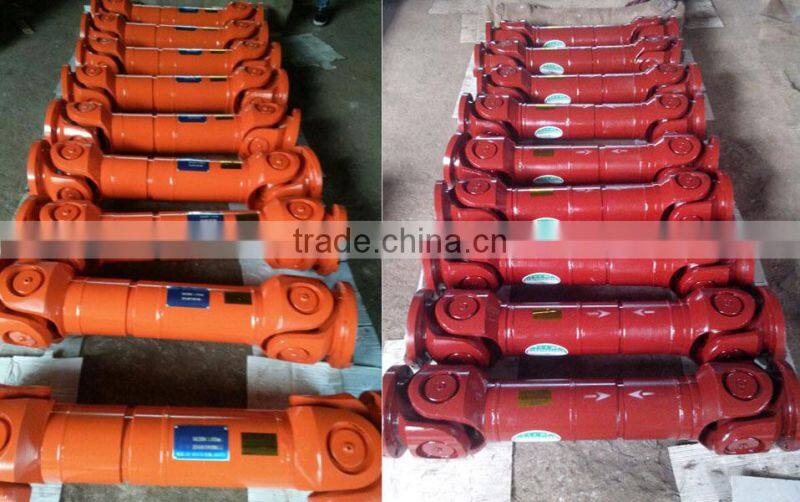

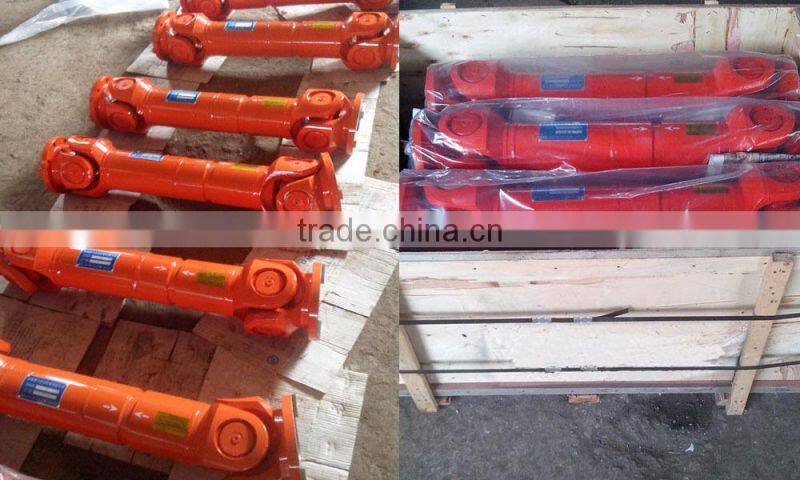

Chinese SWP series cardan shaft coupling

Types

We offer Cardan shaft coupling that mainly includes

universal joint shaft couplings - SWC type,

universal joint shaft couplings - SWP type,

Model Number	Description
SWC-BH	Welded shaft type with length compensation cardan shaft coupling
SWC-BF	Flanged shaft type with length compensation cardan shaft coupling
SWC-DH	Welded shaft short type with length compensation cardan shaft coupling
SWC-CH	Welded shaft long type with length compensation cardan shaft coupling
SWC-WH	Welded shaft type without length compensation cardan shaft coupling
SWC-WF	Flanged shaft type without length compensation cardan shaft coupling
SWC-WD	Short type without length compensation cardan shaft coupling
SWP-A	Long type with length compensation / expansion joint
SWP-B	Short type with length compensation / expansion joint
SWP-C	Short type without length compensation / expansion joint
SWP-D	Long type without length compensation / expansion joint
SWP-E	Double flange with length compensation / expansion joint
SWP-F	Long type with big length compensation / big expansion joint
SWP-G	Super Short type with length compensation / expansion joint

Details

1) OEM part

2) The material: 20Cr2Ni4A and 35CrMo,45#

3) Each part will be fitted well with strict tolerance and good balancing.

4) Tolerance: 0.01mm

5) CNC milling and drilling machine

6) Milling,drilling,weld,wire-electrode cutting,spray painting

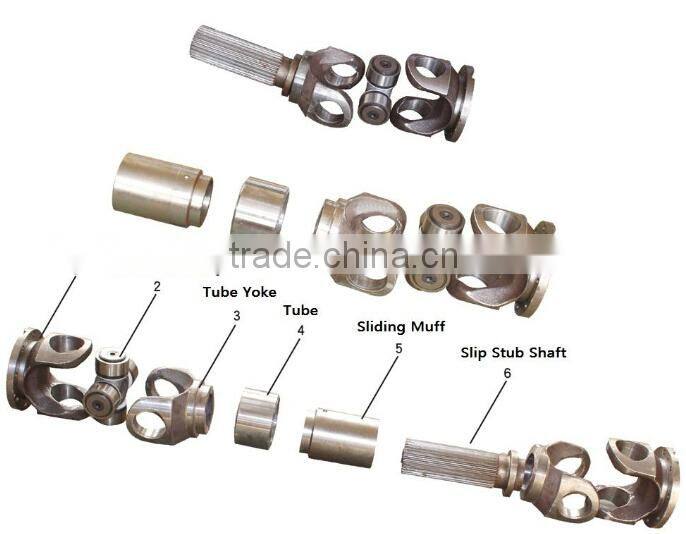

7) Formation: Pipe,Universal joint,Prong

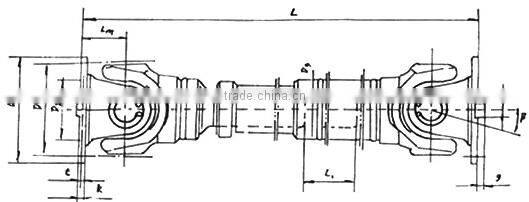

SWC-CH type universal joint shafts drawing and data sheet

Model Number	Nomial Torque Tn /N.m	Fatigue Torque Tf kN.m	Standard Expansion Amount Ls	Size mm										The moment of Interia I kg·m²		Weight G kg
				Lmin	D1 (js11)	D2 (H7)	D3	Lm	n-d	k	t	b (h9)	g	Lmin	Growth per 100mm	Lmin	Growth per 100mm
SWC180CH1	12.5	6.3	200	925	155	105	114	110	8-17	17	5	-	-	0.181	0.0070	74	2.8
SWC180CH1			700	1425										0.216		104
SWC225CH1	40	20	220	1020	196	135	152	120	8-17	20	5	32	9	0.561	0.0234	132	4.9
SWC225CH2			700	1500										0.674		182
SWC250CH1	63	31.5	300	1215	218	150	168	140	8-19	25	6	40	12.5	1.016	0.0277	190	5.3
SWC250CH2			700	1615										1.127		235
SWC285CH1	90	45	400	1475	245	170	194	160	8-21	27	7	40	15	2.156	0.0510	300	6.3
SWC285CH2			800	1875										2.360		358
SWC315CH1	125	63	400	1600	280	185	219	180	10-23	32	8	40	15	3.812	0.0795	434	8.0
SWC315CH2			800	2000										4.150		514
SWC350CH1	180	90	400	1715	310	210	267	194	10-23	35	8	50	16	7.663	0.2219	672	15.0
SWC350CH2			800	2115										8.551		823
SWC390CH1	250	125	400	1845	345	235	267	215	10-25	40	8	70	18	12.730	0.2219	817	15.0
SWC390CH2			800	2245										13.617		964
SWC440CH1	355	180	400	2110	390	255	325	260	16-28	42	10	80	20	22.540	0.4744	1312	21.7
SWC440CH2			800	2510										24.430		1537
SWC490CH1	500	250	400	2220	435	275	325	270	16-31	47	12	90	22.5	33.970	0.4744	1554	21.7
SWC490CH2			800	2620										35.870		1779
SWC550CH1	710	355	500	2585	492	320	426	305	16-31	50	12	100	22.5	72.790	1.3570	2585	34
SWC550CH2			1000	3085										79.570		3045
