tungsten tiles for agriculture points

FOB Price

USD $0.5 - $5 / Piece

50 Pieces(Min.Order)

Supply Ability 100000 Piece / Pieces per Month
Port Shanghai Shenzhen Chengdu
Payment TermsT/T D/P D/A Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Type	Other, Blades, Agricultural machinery parts	Use	Cultivators
Place of Origin	Sichuan, China	Brand Name	Santon
Model Number	Various

Product Description

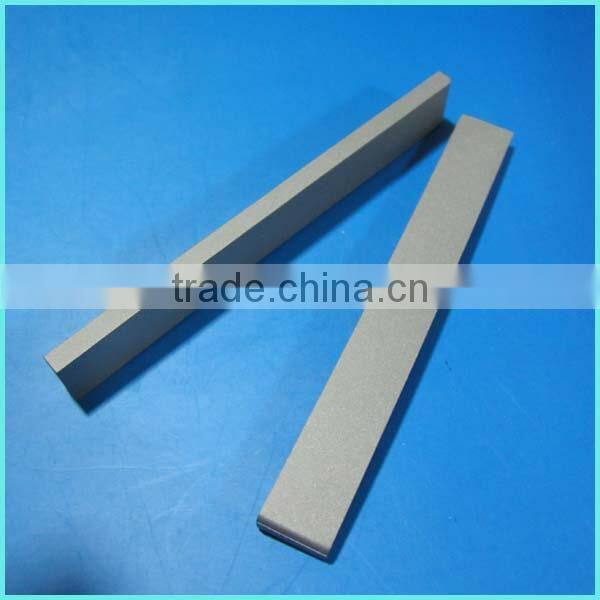

tungsten tiles for agriculture points

Product Description

We offer a variety of tungsten carbide blades to meet specialized needs. Our nickel binder grades are ideal for the most demanding conditions in which corrosion, oxidation and wear push your tooling to the limit. Special shapes can be manufactured to client's specifications with appropriate grades, competitive pricing and prompt delivery.

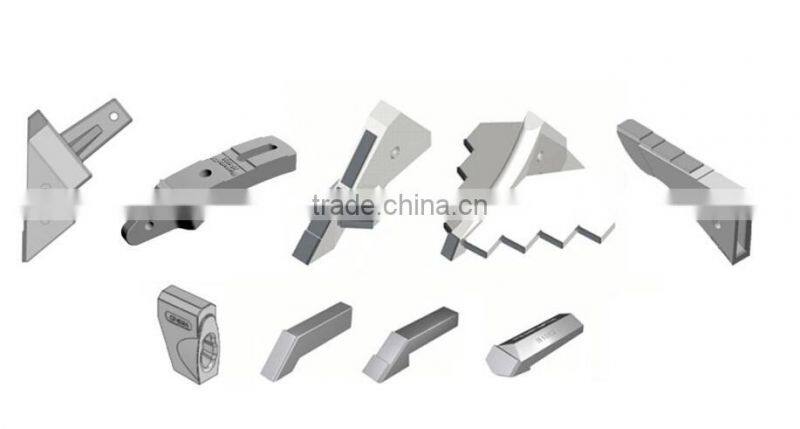

Cemented carbide inserts are used for agricultural machines

When requesting for a quote specify:

1. Physical dimensions, and related tolerance ( if you have)

2. Grade, or chemical composition (WC: Wt% + Co: Wt% + Others : Wt%) , and properties

(Hardness, Density, coercive force, and WC grain size), and associated tolerances, etc.

3. Operation condition and special requirement.

4. Surface condition: sintered blank, fine grinding.

5. Quantity needed.

Only in this way, we can judge and quote exactly on time.

Benefits

* Substantially longer service life than traditional steel tools

* Consistent working depth and tillage quality

* Permanently sharp cutting edges mean improved heeling and less traction power required

* Needs no depth adjustment due to wear

* Saves time and money thanks to fewer blade changes

* Much longer periods of use during good weather

* Optimum utilization of machine power

* Lower tool costs per acre

* Money saved through reduced stocks

Applicaton

Company Information

Our hot selling export products include TC tipped cutting teeth, brazed tips, drag-bit

inserts, button bits, roof bits, rock drill bits, and carbide wear resistant parts/plates/

sheets/wafer for oilfield, mining, quarrying, geological exploration drilling, & agricultural

applications. We can produce according to customer’s drawings or samples,

which are mostly exported to U.S.A, India,Germany, and Russia.

Grade information

Grade	Density (g/cm³)	Hardness (HRA)	T.R.S (MPa)	Application Recommended
YG4C	15.1	96	1800	Mainly used as small buttons for percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG6	14.9	94	2100	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8	14.70	92	2400	Mainly used as the buttons of small and medium-sized percussion bits , and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG8C	14.70	91.7	2450	Mainly used as the buttons of small and medium-sized percussion bits and as the inserts of rotary prospecting bits to cut soft, medium-hard formations.
YG9C	14.6	91.5	2450	Mainly used as the inserts and buttons for rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG10C	14.4	89.5	2550	Suitable for rock bits of percussion rotary rock drill and buttons, drilling hard and super hard rock.
YG11C	14.4	88.5	2600	Chiefly for the inserts and buttons of heavy rock drill bits and rotary-percussive bits, coal-cutting bits and tricone bits to cut medium-hard and hard formations.
YG13C	14.2	87.0	2650	Mainly used as the inserts and buttons of tricone bits rotary-percussive bits and heavy rock drill bits to cut medium-hard and hard formations.
YG15C	14.00	85.0	2700	It is stronger, and is mainly used as the inserts and buttons of rotary-percussive bits, heavy rock drill bits to cut hard and very hard formations.

*Note: Other grades are also available upon request.

FAQ

Q. Are you a manufacturer?	A.Yes, we are.
Q. What's the payment term?	A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or agaisnt copy of BL, or L/C at sight.
Q. How about delivery time?	A. For ready to press items, lead time is 20~25 days, while for new molds, it will need 10 days more to open molds. If you have a urgent order, we will do our utmost to push for it.
Q. What is your minimum order quantity(MOQ)?	A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded late.
Q. What is your warranty?	A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee .
