factory directly supplying SNMA cemented carbide cutting tool inserts
- 1000000 Piece / Pieces per Month
- Shanghai Shenzhen
- Credit Card
- Zy Super Hard External Turning Tool PCD Wide Edge Commutator Turning Tools
- CNC PCD PCBN Turning Milling Inserts
- sell zhuzhou tungsten carbide cutting tools
- DCMT11T304-TS Carbide Inserts Turning Inserts for Steel and Stainless Steel DCMT Shape
- Single-sided CCMT060204-SM Turning Inserts for Semi Finishing and Finishing Positive Rake Low Cutting Forces
- CNMG120404-TF Rhombic Inserts Positive Rake Angle Varies Along the Edge to Negative Prevent Chipping
Product Details
Place of Origin: | Sichuan, China | Brand Name: | Santon | Model Number: | SNMA1205 |
Material: | Tungsten Carbide | Usage: | External Turning Tool | Hardness: | 90.4-91.5 HRA |
Coating: | CVD |
Product Description
Factory directly supplying SNMA cemented carbide cutting tool inserts
1.Made from 100% virgin raw material.
duced with advanced equipments and perfect workmanship.
3.All products go through in-process and final inspection..
4.Stable and best production ability.

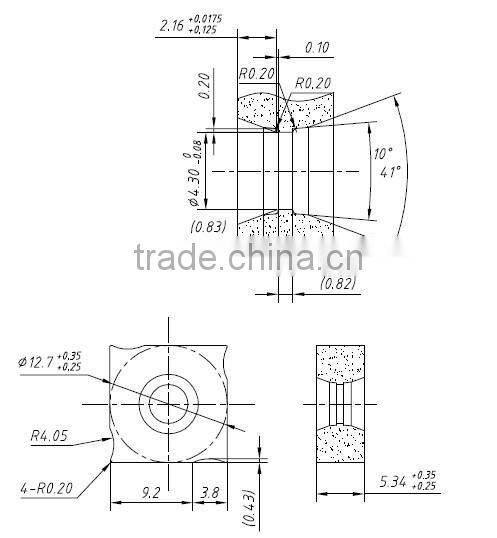

Drawing
Application
SantonGrade | ISO Grade | ANSI Grade | Physical and Chemical Property | Performance & Applications | ||
Density | TRS | Hardness | ||||
g/cm3 | n/mm2 | HRA | ||||
ST2030
| P20~P30 | C6 C5 | 12.6 | 1950 | 91.5 | A reasonable match of wear resistance and toughness, versatile grade. Suitable for rough turning, milling, planning, and deep-drilling of carbon steel, cast steel, manganese steel, high-tensile steel, and various alloy steel. A ideal material for deep-drilling guide block. |
YT15 | P10 | C7 | 11.3 | 1650 | 92.0 | Higher wear resistance with a certain impact toughness, Suitable for semi-finishing of medium chip sections, or finishing of small chip sections of steel, cast steel, alloy steel. |
YT14 | P20 | C6 | 11.4 | 1750 | 91.5 | High strength, good impact and shock resistance. Suitable for rough turning, finish milling of carbon steel, and alloy steel during continuous cutting, and semi-finishing and finishing turning during interrupted cutting . |
YT5 | P30 | C5 | 12.9 | 2200 | 90.5 | Best strength, high impact and shock resistance among W-Co-Ti alloys, but comparatively lower wear resistance. Suitable for rough turning, rough planning, and semi-finish planning of carbon steel, and alloy steel including forgings, stamped parts, and cast iron surfaces during intermittent cutting. |
YW1 | M10 | _ | 13.0 | 1710 | 92.5 | Better red hardness, resistant to impact load. A good grade for general purposes. Suitable for machining of ordinary steel, cast irons as well as steels hard to be machined such as refractory steel, high manganese steel, and stainless steel, etc. |
YW2 | M20 | _ | 12.9 | 1880 | 91.0 | Higher wear resistance and strength, resistant to high impact load. Suitable for roughing and semi-finishing of ordinary steel, and cast irons as well as refractory steel, high manganese steel, and high-grade alloy steel, etc |
YG6 | K20 | C2 | 14.9 | 2050 | 90.5 | High wear resistance, better impact and shock resistance. Suitable for semi-finishing, and finishing of cast irons, non-ferrous metal, alloys, and non-metallic materials at moderate cutting speed. |
YG8 | K30 | C1 | 14.7 | 2520 | 90.0 | High strength, better impact and shock resistance, but lower wear resistance and cutting speed. Suitable for roughing of cast irons, non-ferrous metal, alloys, and non-metallic materials at low speed. |
CNMG
SNMG SNMM

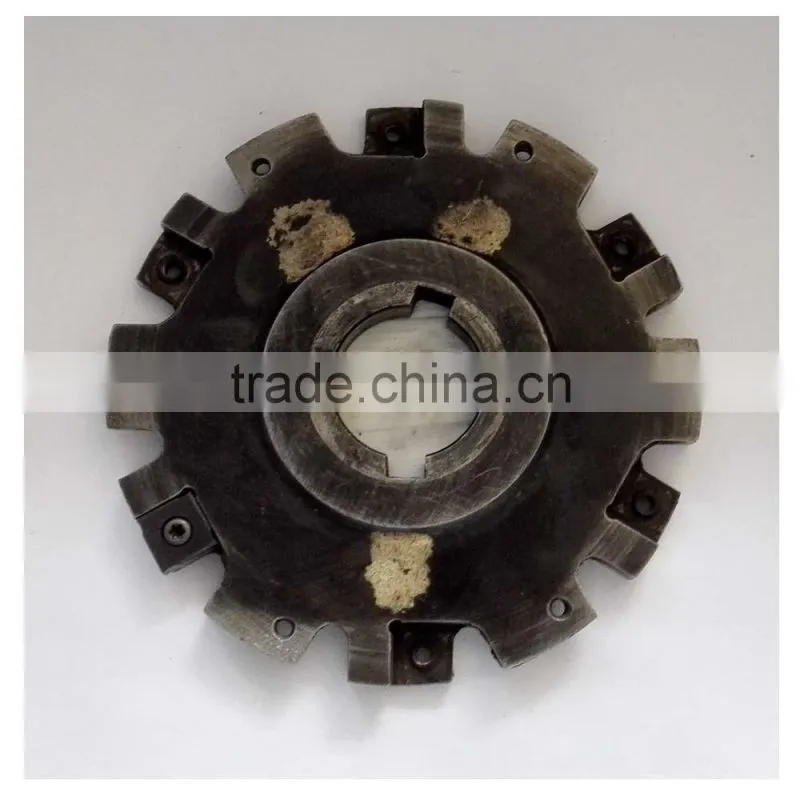

Cemented carbide tips for scarfing pipe
Chengdu Santon Cemented Carbide Co., Ltd. is a professional manufacturer of cemented tungsten carbide (hard metal) products used for a wide variety of industries and applications. We are offering a full range of sintered carbide grades and grain sizes in both cobalt and nickel binders. We can manufacture small and large scale carbide products as per your drawing. Our in house technicians and experts are quite qualified in this field with over 20 years of experiences. We are a customer focused, innovative and value driven company which manufactures and supplies cemented carbide products to their valuable customers at affordable price.
Q. Are you a manufacturer? | A.Yes |
Q. What is your main product? | A. Our main product includes cemented carbide plates, strips, blanks, saw tips, geological and mining bits, brazed tips, indexable carbide inserts, wear parts,snow plow inserts, tungsten carbide pins, etc. |
Q. What's the payment term? | A. We accept Western union, Onetouch, T/T, and L/C. 30% T/T deposit and 70% balance before shipment, or agaisnt copy of BL, or L/C at sight. |
Q. How about delivery time? | A. As a rule, it will take about 25 - 30 days for production. But for new molds, the lead time may need 10 days more to open molds. If you need the goods urgently, we could try to push for and shorten the delivery time. |
Q. What is your minimum order quantity(MOQ)? | A. No limit for MOQ. For non-standard products, mold fee need to be paid, but can be refunded late. |
Q. What is your warranty? | A. We extend a 100% satisfaction guarantee on all items. if you’re not completely satisfied with our products ,we’ll replace them or refund the fee . |
Q. Where is your market? | A. Our products are popular in Germany, America, Mexico, Russia, Middle East, and South Africa,etc. |
