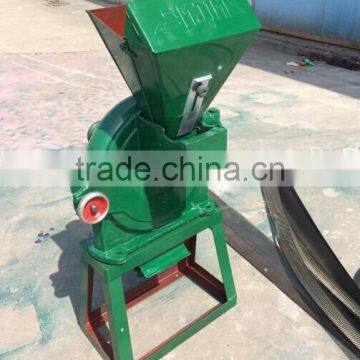

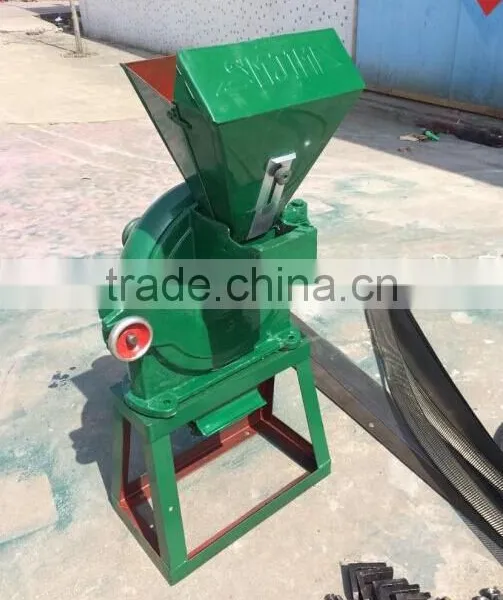

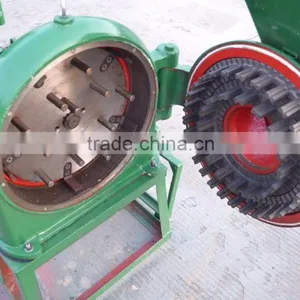

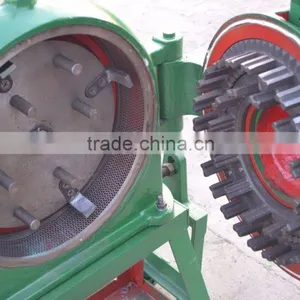

FFC-15, FFC-23, FFC-37, FFC-45 DISK MILL
- 5000 Set / Sets per Month
- shanghai
- T/T Credit Card PayPal
- Automatic Maize Flour Mill Wheat Corn Flour Milling Machine Maize Mill
- Automatic 20tpd Wheat Maize Corn Semolina Rice Roller Flour Griding Machine Wheat Flour Mill Milling Machine
- Wheat Rice Grain Grinder Flour Mill Milling Machine For Home Use
- Widely Used Wheat Rice Grain Grinder Flour Mill Milling Machine
- Small Scale Corn Grinder Mill Machine Grain Crusher Mill Making Machine
- High Quality Grinding Mill Machine for Maize Wheat Soybean
Product Details
Condition: | New | Model Number: | FFC-23 | Production Capacity: | 100% |
Voltage: | 220V/380V | Power(W): | 3kw | Weight: | 65 |
Dimension(L*W*H): | 800*500*1000 | Certification: | ISO9001 | Warranty: | 1 Year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
It is widely used to crush various coarse grains and fodder, such as corn, soybean, sorghum, dried sweet potato slices and soybean cake. All of these can be crushed into fine powder easily without any residue.
Besides that, it can also be used in chemical industry, paper-making and medical industry. it can crush various kinds of chemical raw materials, paper pulp, Chinese herbal medicine, and also fresh fruit, fresh sweet potato and soaked soybeans, which contain moisture content.
MODEL | Unit | FFC-15 | FFC-23 | FFC-37 | FFC-45 |
Speed of main shaft | r.p.m | 9000 | 5800 | 3600 | 3000 |

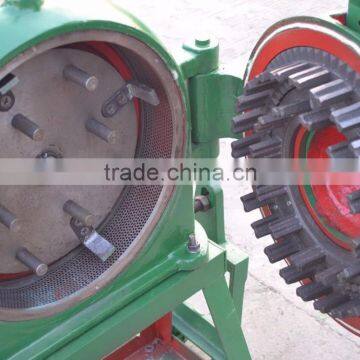

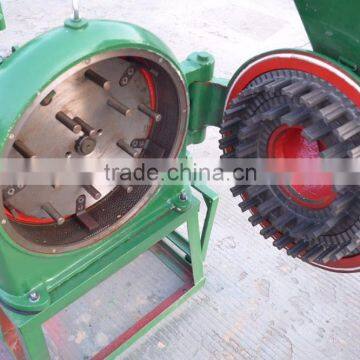

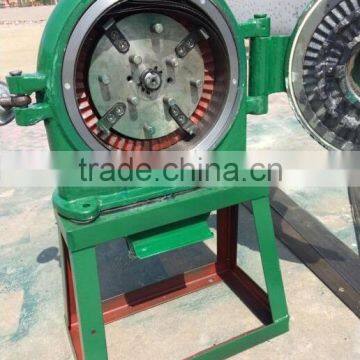

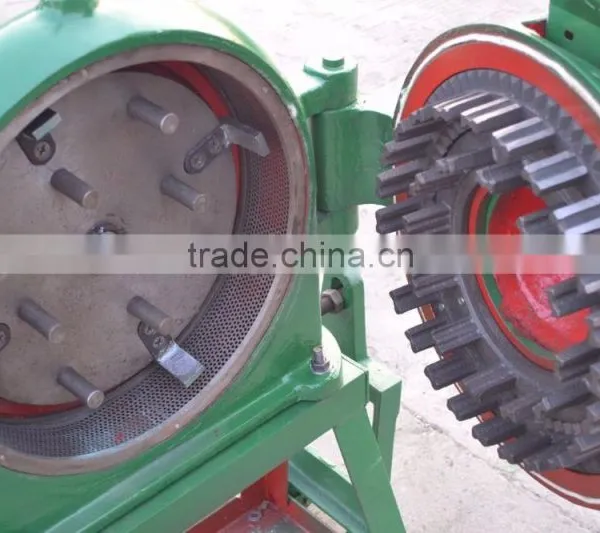

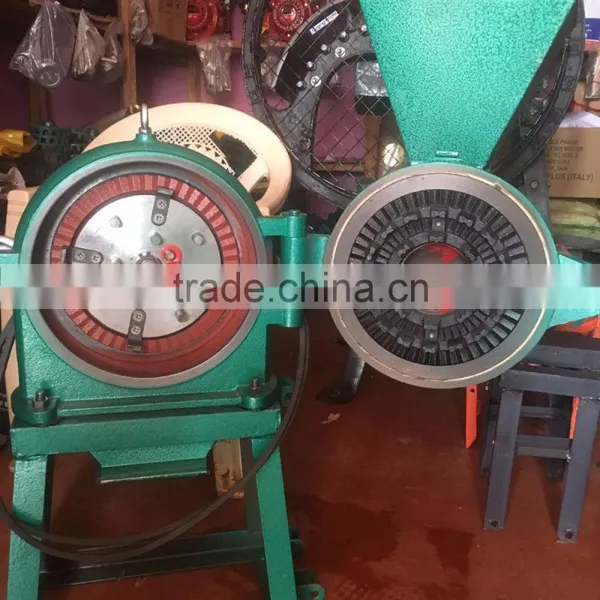

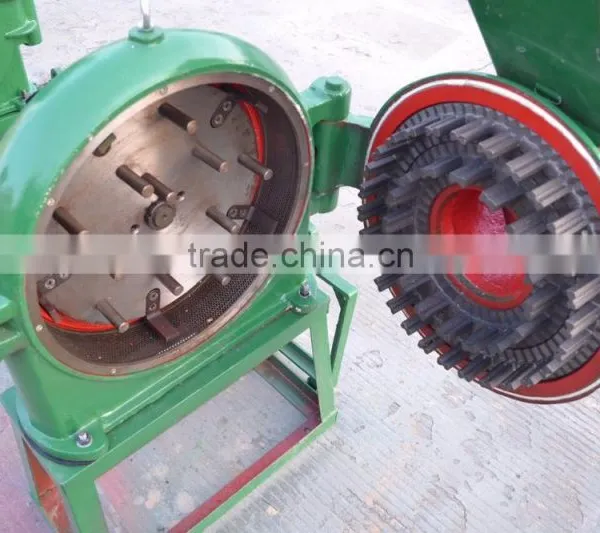

Outer diameter of the rotator (including oblate gear) | mm | 150 | 230 | 370 | 450 |
Number of oblate gears of the rotator | p.c | 3 | 4 | 4 | 5 |
Number of knuckle gears of the rotator | p.c | 3 | 8 | 8 | 12 |
Circles of square gears of the gear wheel | circles | 1 | 2 | 2 | 2 |
Pitch between the oblate gear and screen | mm | 9 | 19 | 16.5 | 16.5 |
Capacity | kg/h | 55 | 180 | 450 | 650 |
Motor:power | kw | 1.1 | 3 | 7.5 | 11 |
Motor:rotational speed | r/min | 2840 | 2840 | 1450 | 1450 |
Dimension(length*width*height) | mm | 565*305*610 | 800*500*1000 | 1050*680*1325 | 1150*755*1425 |
Weight(excluding the motor) | kg | 18 | 65 | 158 | 224 |
Our company is specialized in production and supply of agricultural machinery and spare parts, such as small diesel engine, gasoline engine, water pump, tractor, planter, mill, chain saw, lawn mower etc..
Main models:
1. Honda and Robin models Gasoline engine: 152F,168F,170F,173F,177F,188F,190F (gx160, gx200, gx240, gx270, gx390 etc.)
2. Single cylinder diesel engine: 165, 168, 170, 175, 178F,180, 185, 186F, 188, 190,192, 195, 1100, 1105, 1110, 1115, 1120, 1125, 1130, CF25, CF33, JD300, JD33 KM130, KM138, KM160, SF148, SF138, L24, L28, L32 and
Multi-cylinder 2100, 2105, 2110, 3100, 3105, 385, 480, 485, 490, 495, 498, 4100, 4105, 4108, 4110, 4102,6105.
