Home > Transportation > Tractor & Parts > Tractor > Hot Sale Agriculture Machinery Water Cooled Vertical Diesel Engine Powered Small Farm Tractor

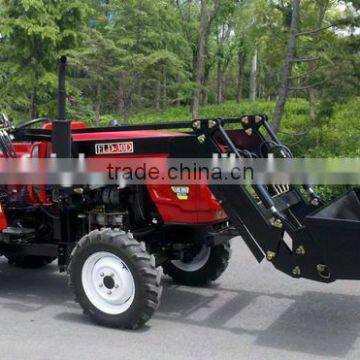

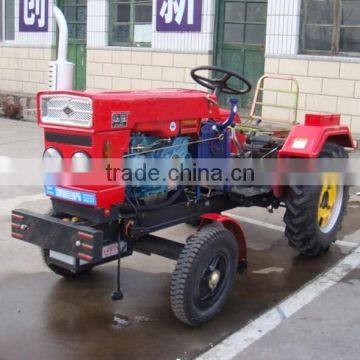

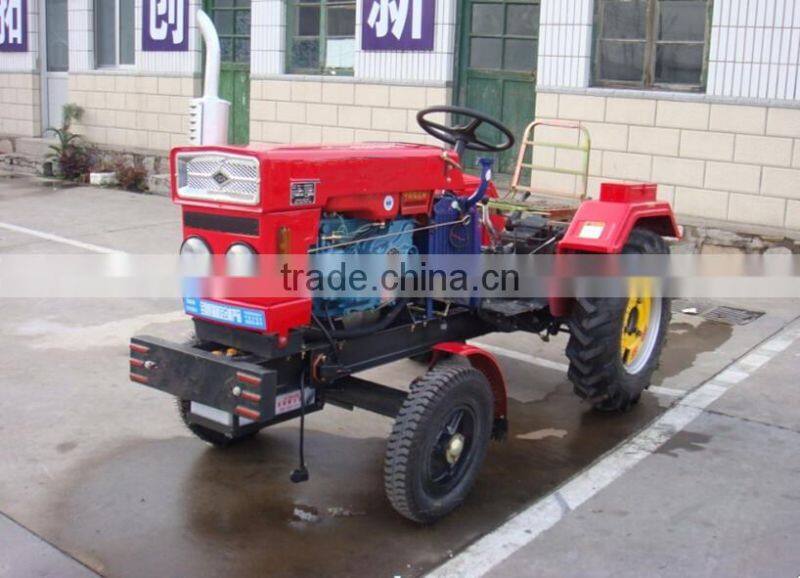

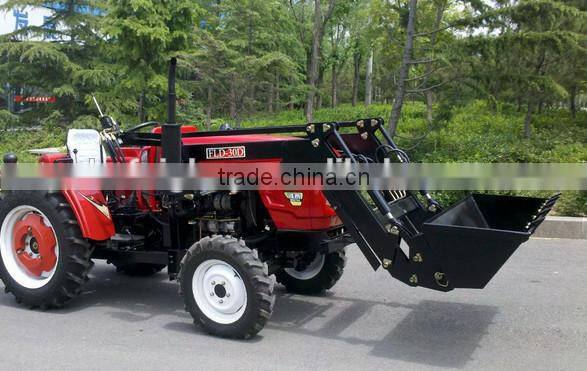

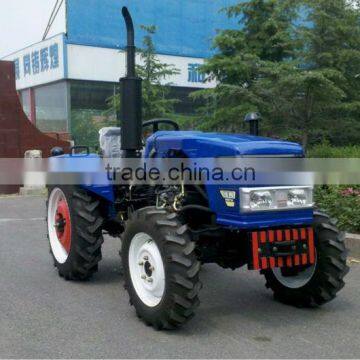

Hot Sale Agriculture Machinery Water Cooled Vertical Diesel Engine Powered Small Farm Tractor
Negotiable
MOQ: 2 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
4WD
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
High Quality Diesel Engine DF-121 Walking TractorNegotiableMOQ: 1 Piece -
High Quality Diesel Engine DF-151 Walking TractorNegotiableMOQ: 1 Piece
-
101 Chassis for DF Walking TractorNegotiableMOQ: 1 Piece
-
High Quality Single Cylinder 4 Stroke Air-cooled 2WD Walking Tractor TillerNegotiableMOQ: 1 Piece
-
GN151 Farm Walking TractorUS$ 1,200 - 1,800MOQ: 1 Set
Condition
New
Type
Wheel Tractor
By wheel
4WD
Usage
Farm Tractor
Drive Type
Gear Drive
Power(W)
18kw-45kw
Certificate
CE
After-sales Service Provided
Overseas third-party support available
Specifications
1.factory price2. CE and other various quality certificate
3.fast delivery
4.good service
Product Description
| Model | HG25 | HG30 | HG35 | HG40 | ||
| Type | 4*4 | 4*4 | 4*4 | 4*4 | ||
| Dimensions of Tractor | Lenght mm | 2910 | 2950 | 3000 | 300 | |
| widht mm | 1400 | 1450 | 1500 | 1500 | ||
| Height mm | 1500 | 1500 | 1500 | 1500 | ||
| Tread | Front mm | 1000/1200 | 1000/1200 | 1000/1200 | 1000/1200 | |
| Rear mm | 1000-1200/1200-1300(Adjustable) | 1000-1200/1200-1300(Adjustable) | 1000-1200/1200-1300(Adjustable) | 1000-1200/1200-1300(Adjustable) | ||
| Wheel base mm | 1710 | 1750 | 1780 | 1780 | ||
| Min.Ground Clearance mm | 287 | 287 | 287 | 287 | ||
| Dry Mass Kg | 1360 | 1350 | 1370 | 1380 | ||
| Engine | Model | LDKM385 | LD 390 | LD4L22 | LD4L23 | |
| Type | Vertical, water-cooled, diesel engine | Vertical, water-cooled, diesel engine | 8Vertical, water-cooled, diesel engine | Vertical, water-cooled, diesel engine | ||
| Number of cylinder | 3 | 3 | 4 | 4 | ||
| Rated Power Kw(hp) | 18.4(25) | 22.1(30) | 25.7 (35) | 29.4(40) | ||
| Tyre | Front | 600-16 | 600-16 | 600-16 | 600-16 | |
| Rear | 9.5-24 | 9.5-24 | 9.5-24 | 9.5-24 | ||
| Clutch | Dry-type, single-acting | Dry-type, single-acting | Dry-type, single-acting | Dry-type, single-acting | ||
| Steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | Hydraulic power steering | ||
| Gear box | (4+1)*2 | (4+1)*2 | (4+1)*2 | (4+1)*2 | ||
| PTO r/min | 720 | 720 | 720 | 720 | ||
| Counterweight device | Front6*8Kg Rear2*20Kg | Front6*8Kg Rear2*20Kg | Front8*6Kg Rear2*20Kg | Front8*6Kg Rear2*20Kg | ||
| Steam brake device | standard accessories | standard accessories | standard accessories | standard accessories | ||
