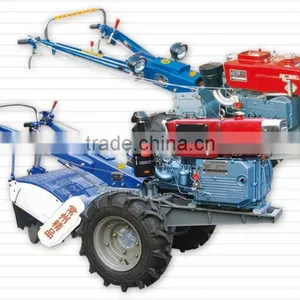

DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-1
DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-2
DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-3
DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-4

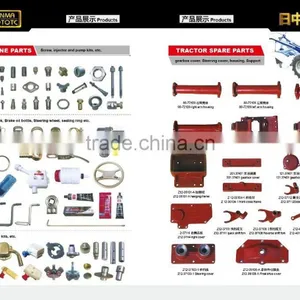

DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-5

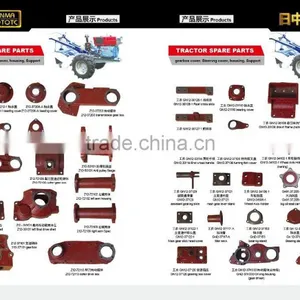

DF Walking Tractor, GN Walking Tractor, Tractor Parts thumbnail-6
DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-1

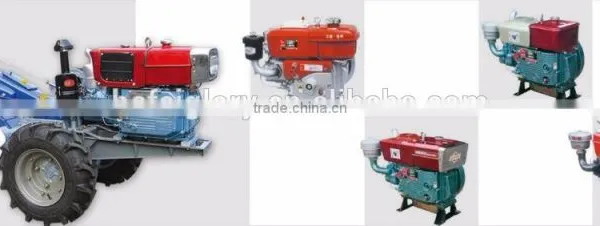

DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-2

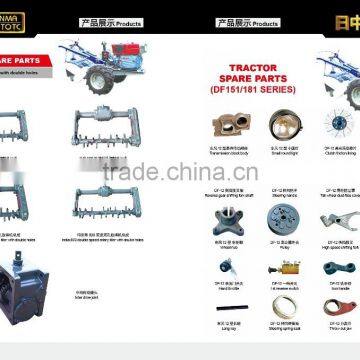

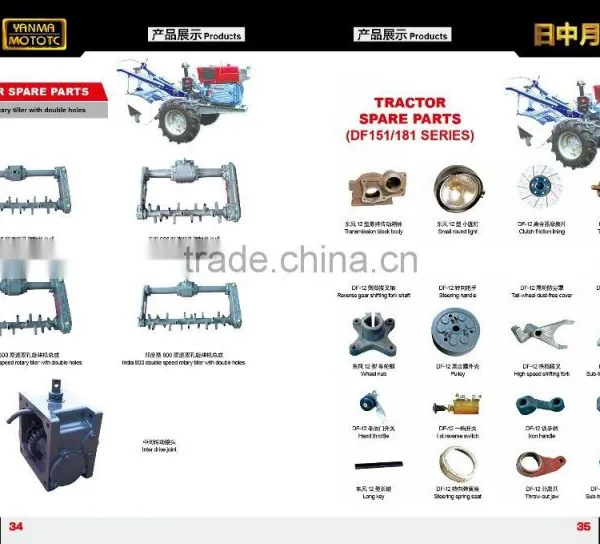

DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-3

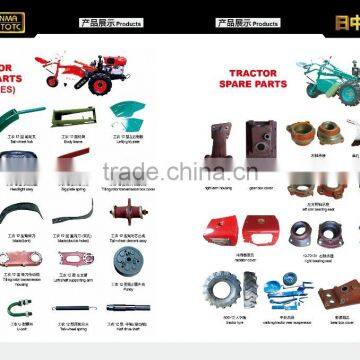

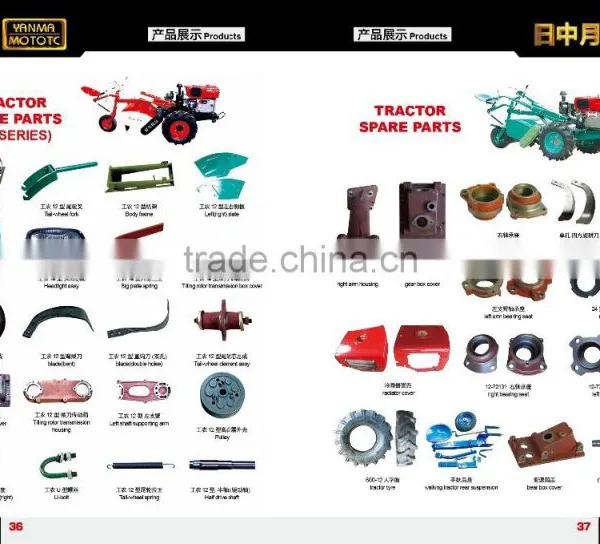

DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-4

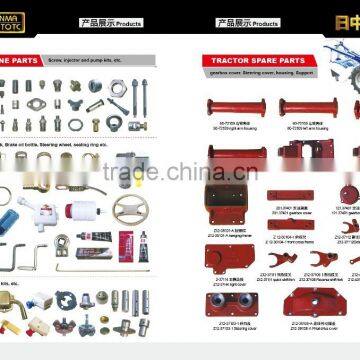

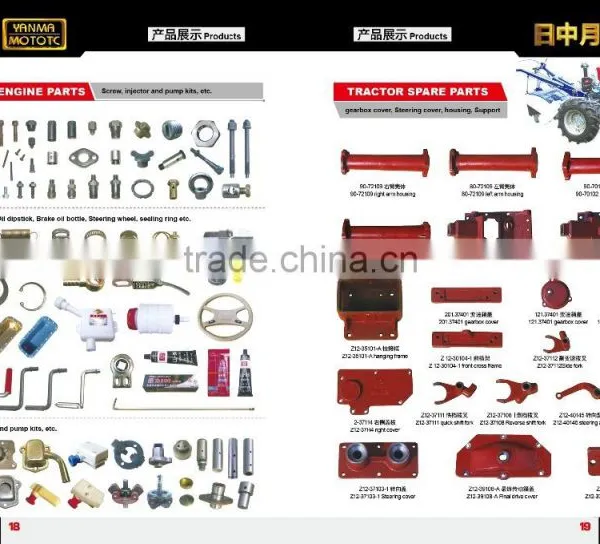

DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-5

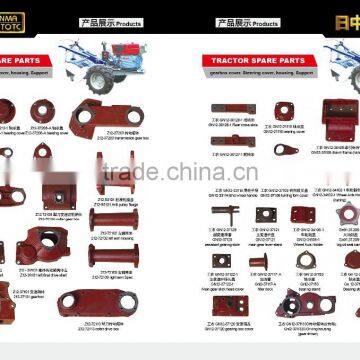

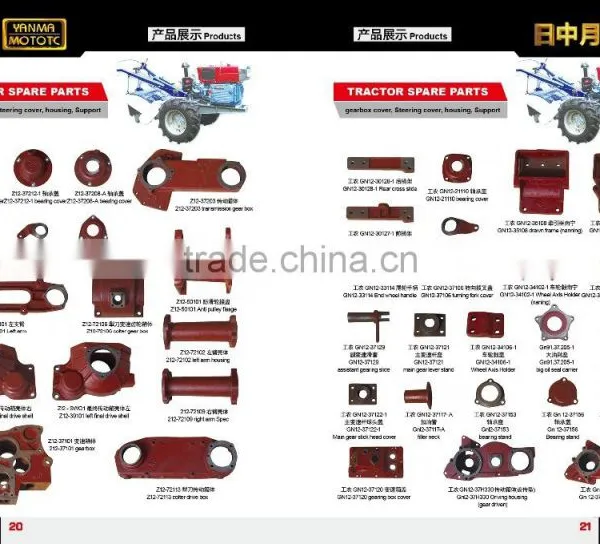

DF Walking Tractor, GN Walking Tractor, Tractor Parts photo-6
US$ 700 - 1,000 MOQ: 5 Sets
Key Specifications
Get Latest Price
Condition:
New
Type:
Walking Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Walking Tractor
By wheel 2WD
Usage Farm Tractor
Drive Type Gear Drive
Power(W) 12hp
Certificate CE
Brand Name OEM
Model Number 121/151
Place of Origin Anhui, China
After-sales Service Provided Overseas third-party support available
Product Description

DF WALKING TRACTOR



DF121









Engine

 Pattern

horizontal , One Cylinder, Four Stroke, Diesel powered, Water-cooled

Model

ZS195N

Displacement(L)

0.815

Oil Consumption

(g/ km. h)

less than250

Engine Oil Consumption           (g/ km. h)

less than2.00

Rated Power(kw)

8.82

Rated Speed(rpm)

2000

Type



DF

















Machine Parameters

Starting Type

Hand start

Overall Size(mm)

2680*960*1250(without seat)

Wheel Tread(mm)

800

Minimum Ground Clearance(mm)

185

Minimum Turning Radius(m)

0.9

Structural Weight(kg)

360 (with connecting frame), 470(with rotary tiller)

Tyre

6.00-12

Theoretical Speed(km/h)

Forward:1.4,2.5,4.1,5.3,9.4,15.3

Reverse:1.1,3.8

Rated Traction(N)

2000

Gearbox

(3+1)×2

Oil Type

0# in summer,-10# or 20# in winter

Cooling type

Evaporation

Rear-Wheel Diameter(mm)

340

Rotavator

Number of blades

18pcs

Rotary tilling width

600mm



DF151











Engine



Pattern

Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled

Model

1100

Displacement(L)

0.913

Oil Consumption

(g/ km. h)

320

Engine Oil Consumption           (g/ km. h)

2.72

Rated Power(kw)

10.3

Rated Speed(rpm)

2000

















Machine Parameters

Type

Pull and Drive

Overall Size(mm)

2680*960*1250(without seat)

Wheel Tread(mm)

800

Minimum Ground Clearance(mm)

185

Minimum Turning Radius(m)

0.9

Structural Weight(kg)

360 (with connecting frame), 480(with rotary tiller)

Tyre

6.00-12

Theoretical Speed(km/h)

Forward:1.4,2.5,4.1,5.3,9.4,15.3

Reverse:1.0,3.8

Rated Traction(N)

2400

Gearbox

(3+1)×2

Oil Type

0# in summer,-10# or 20# in winter

Cooling Type

Evaporation

Rear-Wheel Diameter(mm)

340



DF181











Engine



Pattern

Vertical, One Cylinder, Four Stroke, Diesel powered, Water-cooled

Model

1105

Displacement(L)

1.194

Oil Consumption

(g/ km. h)

320

Engine Oil Consumption           (g/ km. h)

2.72

Rated Power(kw)

13.23

Rated Speed(rpm)

2000

















Machine Parameters

Type

Pull and Drive

Overall Size(mm)

2680*960*1250(without seat)

Wheel Tread(mm)

800

Minimum Ground Clearance(mm)

185

Minimum Turning Radius(m)

0.9

Structural Weight(kg)

360 (with connecting frame), 480(with rotary tiller)

Tyre

6.00-12

Theoretical Speed(km/h)

Forward:1.4,2.5,4.1,5.3,9.4,15.3

Reverse:1.0,3.8

Rated Traction(N)

2400

Gearbox

(3+1)×2

Oil Type

0# in summer,-10 or 20 in winter

Cooling Type

Evaporation

Rear-Wheel Diameter(mm)

340

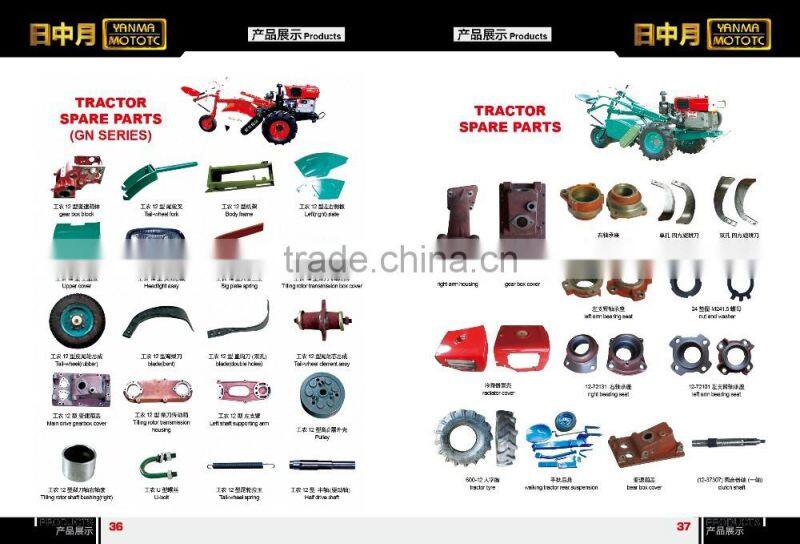

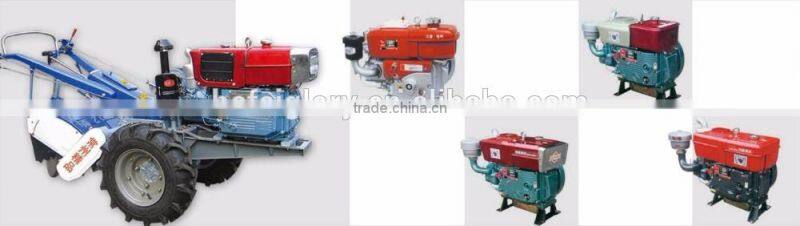

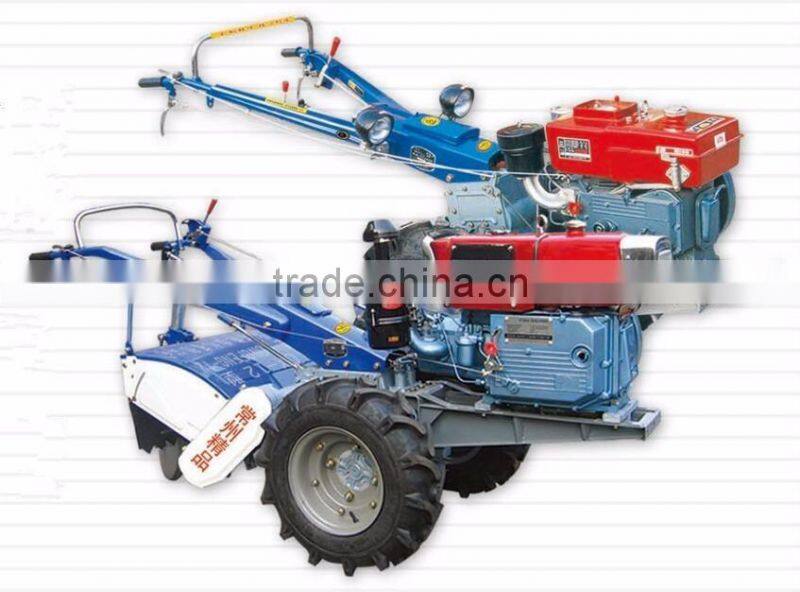

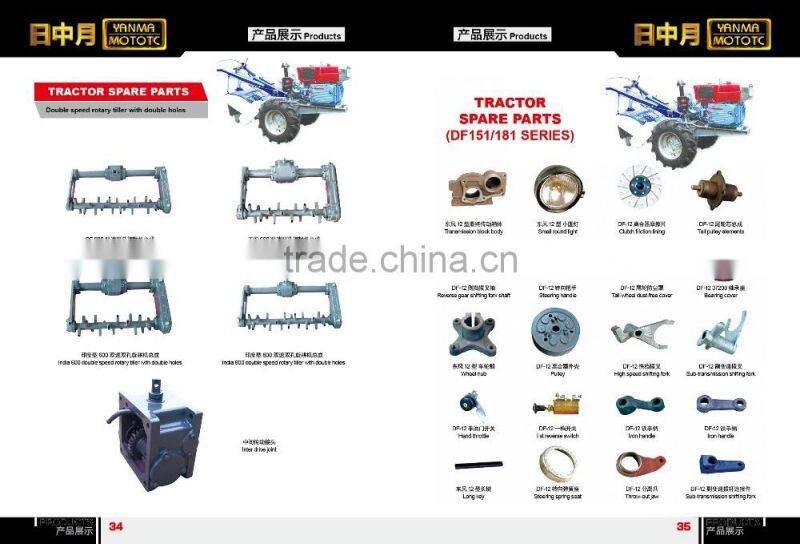

DF walking tractor, GN walking tractor, tractor parts













DF walking tractor, GN walking tractor, tractor parts







DF walking tractor, GN walking tractor, tractor parts









DF walking tractor, GN walking tractor, tractor parts







Company Information



Our company is specialized in production and supply of complete assy and spare parts for diesel engine, gasoline engine, walking tractor, generator set, water pump, chain saw, lawn mower etc..

Main models:
1. Honda and Robin models Gasoline engine: 152F,168F,170F,173F,177F,188F,190F (gx160, gx200, gx240, gx270, gx390 etc.)
2. Single cylinder diesel engine: 165, 168, 170, 175, 178F,180, 185, 186F, 188, 190,192, 195, 1100, 1105, 1110, 1115, 1120, 1125, 1130, CF25, CF33, JD300, JD33 KM130, KM138, KM160, SF148, SF138, L24, L28, L32 and

Multi-cylinder 2100, 2105, 2110, 3100, 3105, 385, 480, 485, 490, 495, 498, 4100, 4105, 4108, 4110, 4102,6105.
