Help Center2015 Most Popular Super Power Single Cylinder Air/water Cooled Diesel Engine
Related Products
-
Single Cylinder 4 Stroke Water Cooled Diesel EngineNegotiableMOQ: 1 Piece -
Direct Injection Single Cylinder 4 Stroke Water Cooled Type Diesel EngineNegotiableMOQ: 2 Sets
-
Direct Injection Single Cylinder 4 Stroke Type Diesel EngineNegotiableMOQ: 2 Sets
-
Gold Supplier Direct Injection Single Cylinder Type Diesel EngineNegotiableMOQ: 2 Sets
-
Gold Supplier Direct Injection Type Diesel EngineNegotiableMOQ: 2 Sets
Why choose us:
1) OEM Service are provided.
2) High quality control.
3) Prompt delivery time
4) Excellent service
5) New product
6) Customer's design and logos are welcome
7) Competitive price
8) In a variety of designs
9) Small order acceptable
| Model | ZS195Ⅱ | ZS1100Ⅱ | ZS1105Ⅱ | ZS1110Ⅱ | ZS1115Ⅱ |
| Diesel Engine type | Direct Injection | ||||
| Combustion system | Direct Injection | ||||
| Cylinder diameter(mm) | 95 | 100 | 105 | 110 | 115 |
| Piston stroke(mm) | 115 | ||||
| Displacement (L) | 0.815 | 0.903 | 0.996 | 1.093 | 1.194 |
| Rated output (kw) | 9.7 | 11.03 | 12.1 | 13.24 | 14.7 |
| Rated speed (r/min) | 2200 | ||||
| Fuel consumption rate (g/ k w .h) | ≤244.8 | ≤246.2 | ≤246.2 | ≤244.8 | ≤242.1 |
| Starting system | Hand Cranking or Electric | ||||
| Net weight(kg) | 140 | 160 | 165 | 180 | 185 |
| Overall dimensions(mm) | 900mm*440mm*760mm | ||||

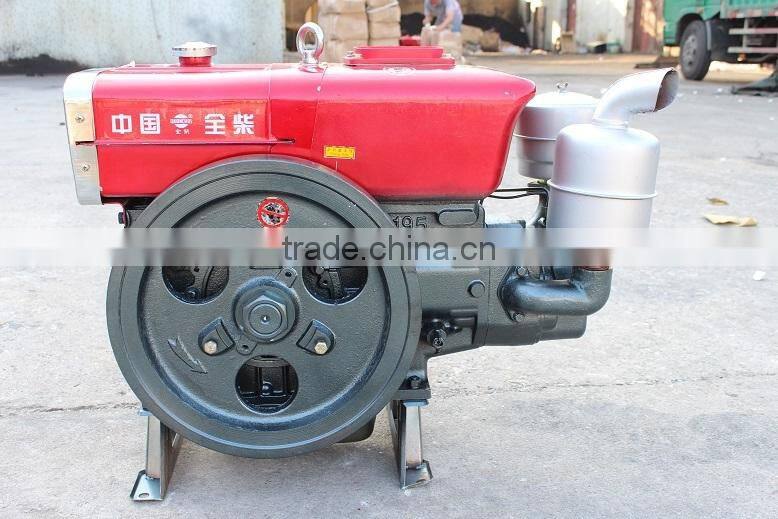

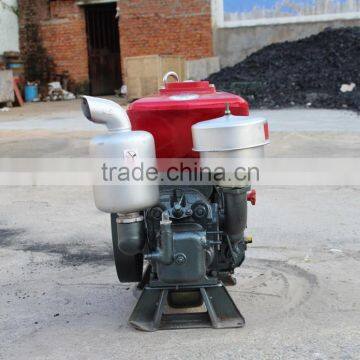

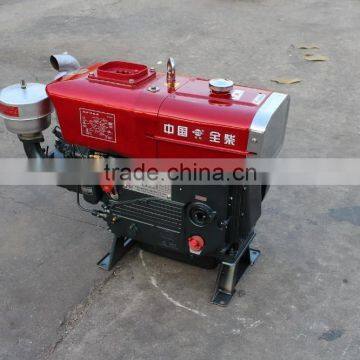

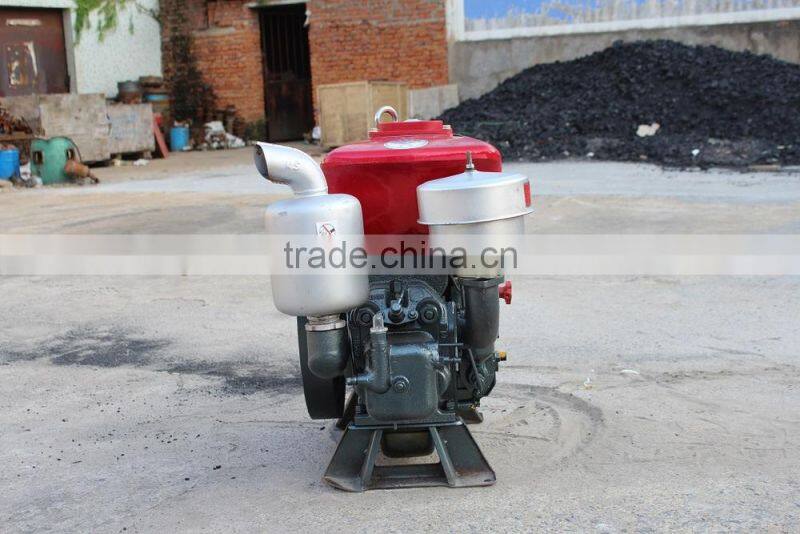

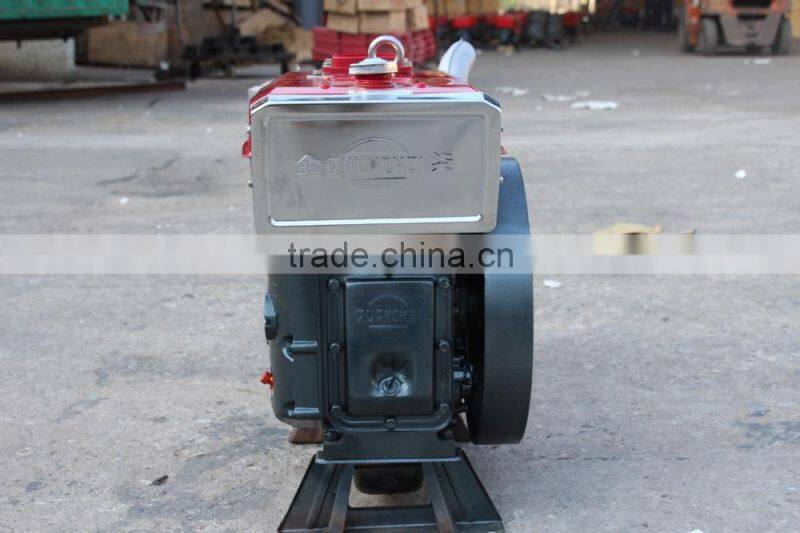

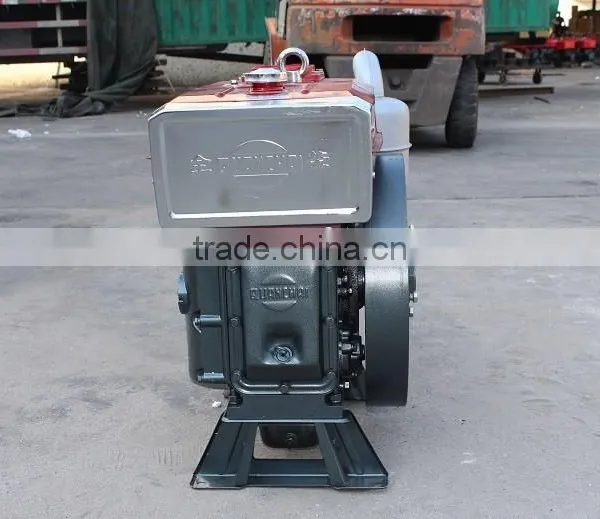

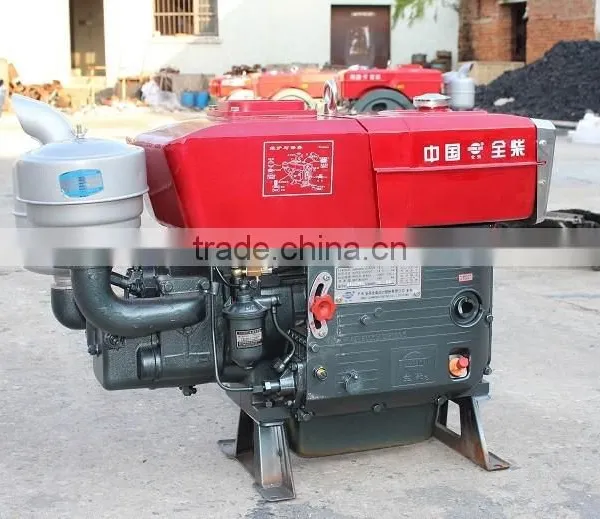

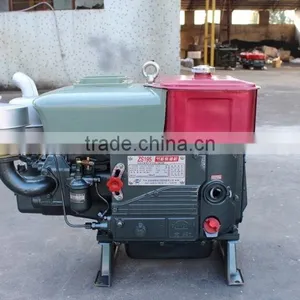

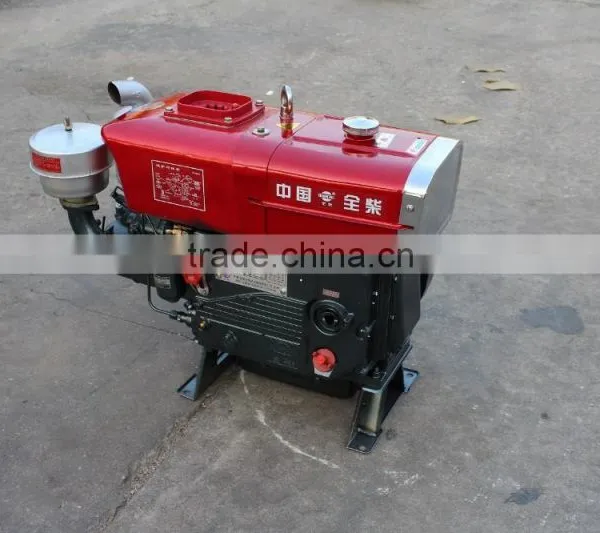

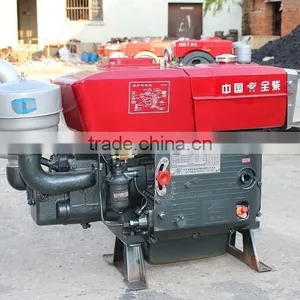

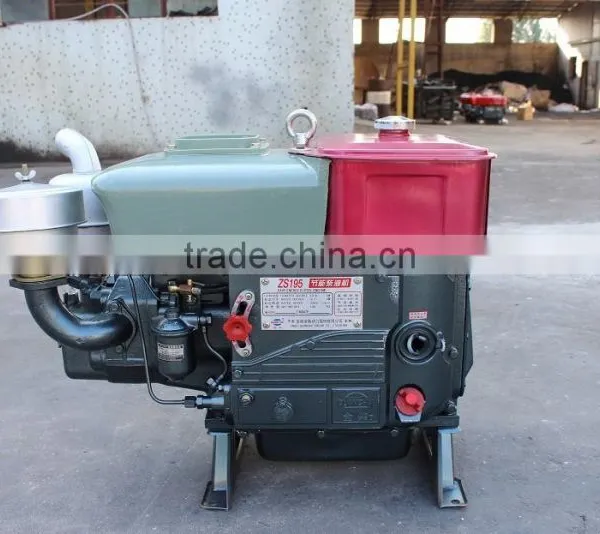

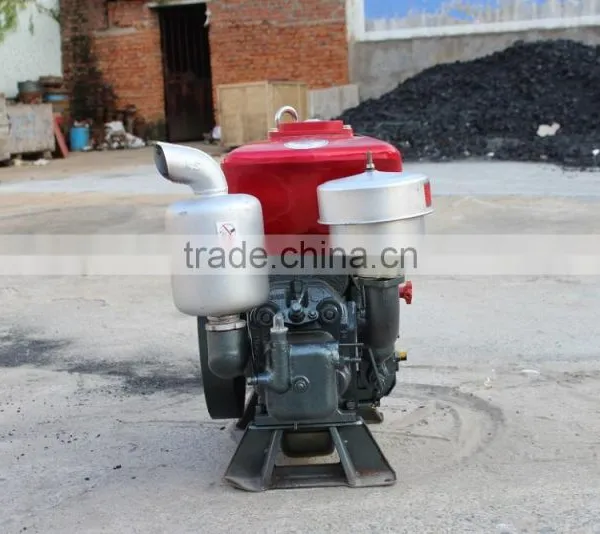

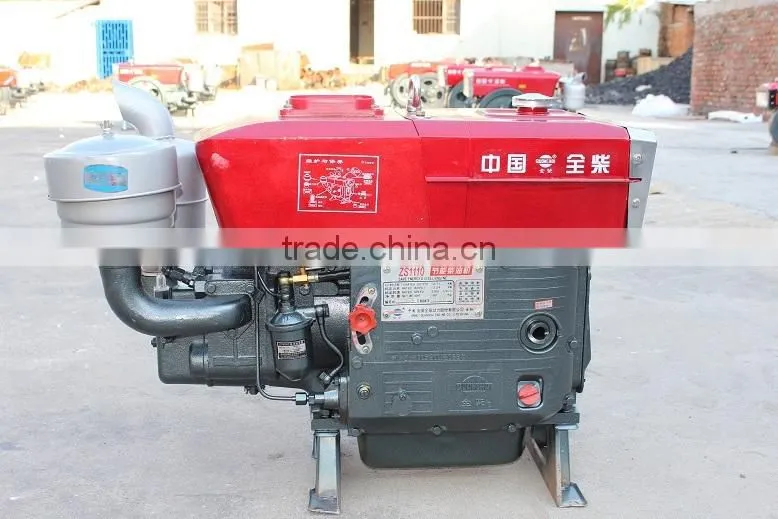

Product Picture:
Our product advantage
Strong Power
All generator sets are equipped with Weichai four-stroke engines.
Low Noise Running
High effective combustion system ensures complete combustion, Besides, a large silencer dampens exhaust noise and engine sounds which are contained by a double-wall structure and absorbed by a liner.
Digital Control Panel
All the control units of the generator sets are on one panel, a monitor of the panel will display the real-time working data of the generator set such as its output voltage and current etc.
Besides, the running trouble of the generator will also be displayed on the panel.
Low Oil Alarm System
Before the oil level drops to the limited level, the generator set will stop automatically. The whole set can be restarted only if the oil is refilled.
Application of New AVR
The AVR (Automatic Voltage Regulator) not only can smooth the output but also can provide reasonable protec-tion against the overload of the whole set, thus avoid damage to the set.
vanced Alternator Winding
Waveform distortion is kept at a minimum level and the output is stable. The winding design protects the generator from short circuits and provides a stable output while running inductive loads.
ATS (Automatic Transfer Switch)
On the inheriting of the original general-purpose generator set, VLAIS diesel generator sets with digital control panel can be
equipped with a made ATS(automatic transfer switch). ATS, in its preset intervals, can automatically check and monitor the running of the genset to ensure the genset in good working condition. Meanwhile, ATS will monitor the utility power, if utility power fails or the voltage and frequency of the utility power become abnormal, ATS will give commands to start the genset automatically.
Export carton or wooden carton or customized
Welcome to inquiry us freely with your any requirements.We will try our best to meet your requests with our good products and competitive price.
Company: Hefei Glory Trading Co., Ltd,
Address: Room 708, Block B, Zhonghuan Community, Feicui south Rd., Economic development zone.
Telephone: (86) 0551- 63464687
