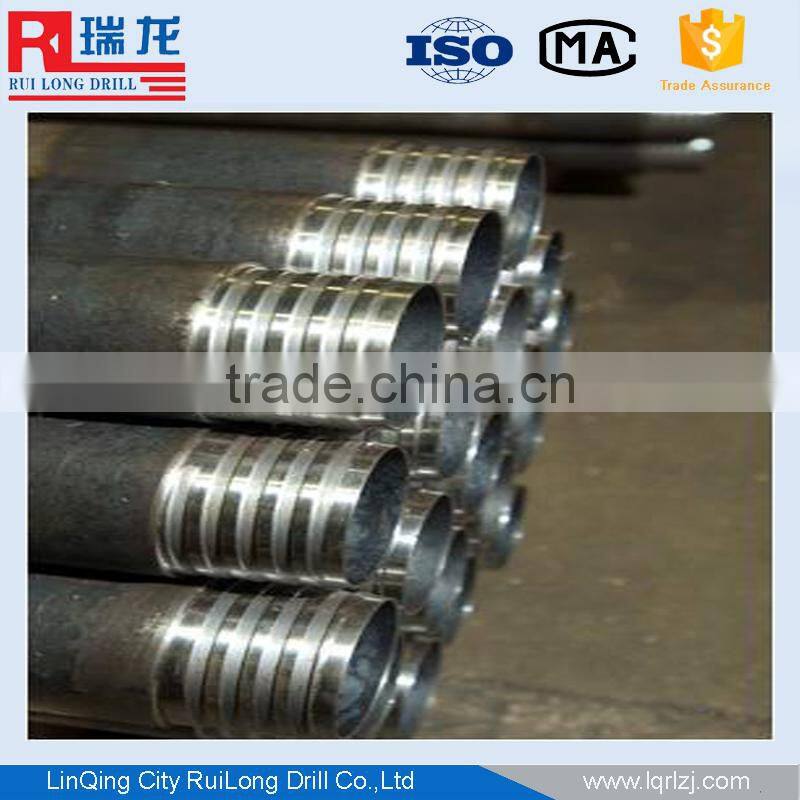

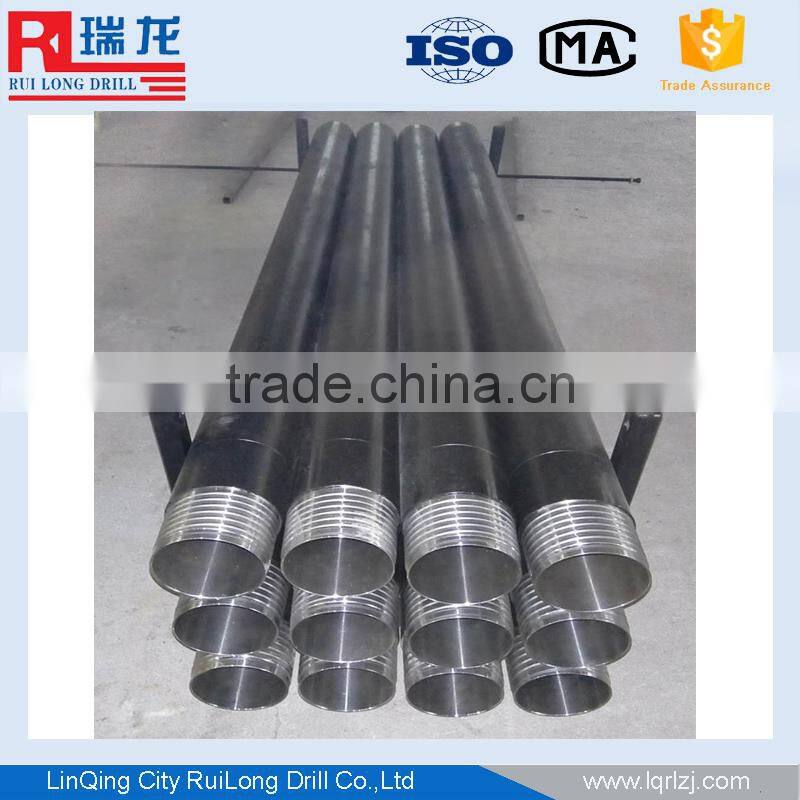

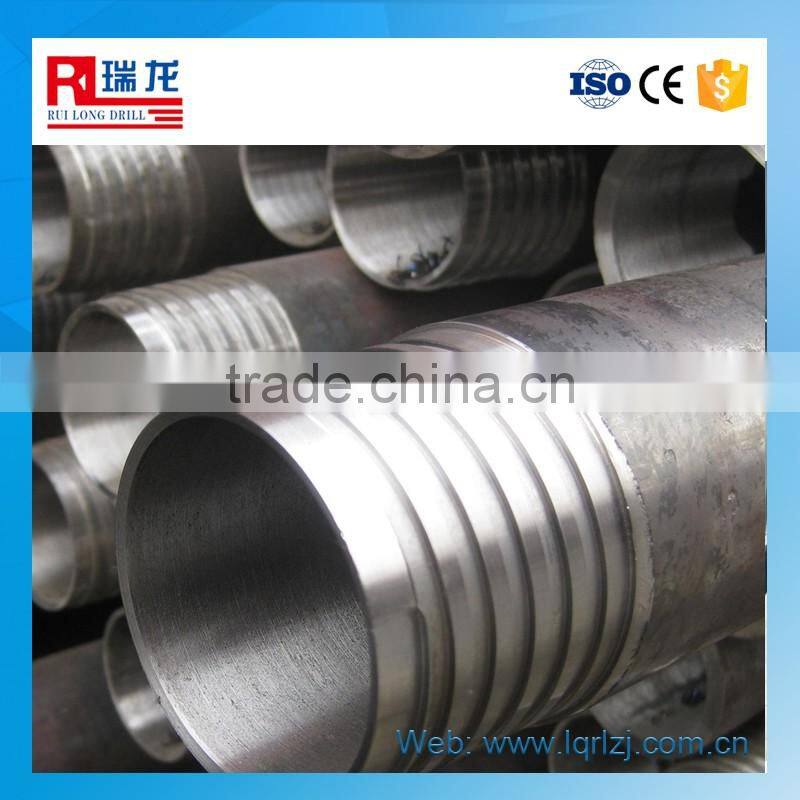

BW,NW,HW Casing Pipe, Steel Casing Prices, Casing Coupling
US$ 100 - 120
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Shandong, China
Brand Name:
Ruilong, RL(Ruilong)
Model Number:
RL, AQ,BQ,NQ,HQ,PQ,NRQ,HRQ NW HW BW AW PW
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Tianjin/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Different Kinds of BQ NQ HQ PQ Drill Pipe,drill Tube,Oil Drill PipeUS$ 100 - 120MOQ: 100 Pieces -
Mining Wireline System BQ NQ HQ PQ PQ3 Core Lifter Core Lifter Case Drilling ToolsUS$ 100 - 120MOQ: 100 Pieces
-
NQ Drill Rod, HQ Drill Pipe, PQ Diamond Drill Rod for Drilling Rig, Casing PipeUS$ 100 - 120MOQ: 100 Pieces
-
AQ.BQ.RQ.NQ.HQ.PQ Core Drill Rod/AW.BW.RW.NW.HW.PW.casing PipeUS$ 100 - 120MOQ: 100 Pieces
-
BQ NQ HQ Drill PipeUS$ 100 - 120MOQ: 100 Pieces
Place of Origin
Shandong, China
Brand Name
Ruilong, RL(Ruilong)
Model Number
RL, AQ,BQ,NQ,HQ,PQ,NRQ,HRQ NW HW BW AW PW
Type
Other, Drill Bit, Drill Pipe
Machine Type
Other, Drilling Tool, Drilling Tool
Certification
API
Material
Carbon Steel
Processing Type
Forging
Use
Other, Well Drilling, Ore Mining
Product Description
bw nw hw pw casing shoes with high quality
| Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BQB | NQB | HQB | PQB |
| OD/ID | mm | 55.6/46 | 71/60 | 89/77.8 | 114.3/101.6 |
| Thickness | mm | 4.8 | 5.5 | 5.6 | 6.35 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth angle | . | 29 | 29 | 29 | 29 |
| tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
| tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |
| bore depth | m | 1200 | 1000 | 900 | 800 |
| QR series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BRQ | NRQ | HRQ | PRQ |
| OD/ID | mm | 55.6/46 | 69.9/60.3 | 88.9/77.8 | 114.3/101.6 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 42 | 42 | 41.91 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth negative angle | . | 5 | 5 | 5 | 5 |
| tensile resistance(A) | kn | 450 | 525 | 545 | 565 |
| tensile resistance(B) | kn | 530 | 625.5 | 602 | 660 |
| bore depth | m | |
|||
Company Information
Our Services
Ruilong will response in 8 hours to the problems caused by our products. When necessity arises inside the country, technical support will arrive in 24 hours within a 1000 kilometers radius of the company, will arrive in 48 hours for other parts of China. Due to the limitation of branch offices in foreign countries, technical support will arrive your work site in 15 days after visa is issued
.
