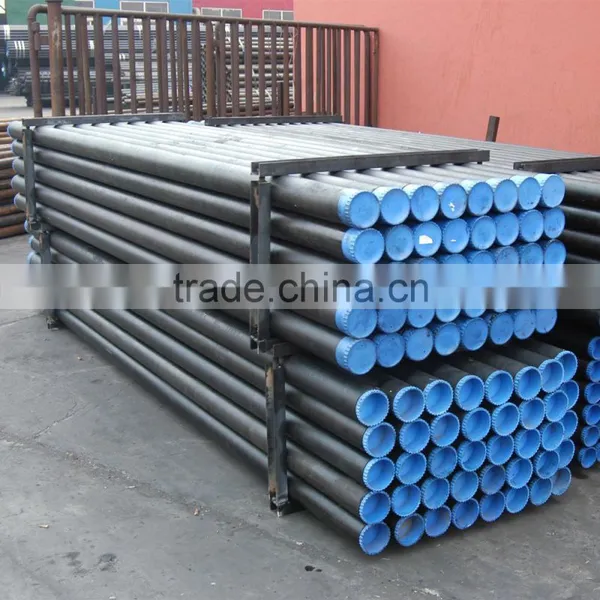

The wholesale price chinese top head full hydraulic truck coresteel pipe drilling hole with BQ NQ HQ
US$ 100 - 120
/ Piece
100 Pieces(Min. Order)
- Qingdao/Tianjin/Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | Ruilong, RL(Ruilong) | |
| Model Number | RL, AQ,BQ,NQ,HQ,PQ,NRQ,HRQ NW HW BW AW PW | Type | Other, Drill Bit, Drill Pipe | |
| Machine Type | Other, Drilling Tool, Drilling Tool | Certification | API | |
| Material | Carbon Steel | Processing Type | Forging | |
| Use | Other, Well Drilling, Ore Mining |
Product Description
Product Description
steel pipe drilling hole
| Q series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BQB | NQB | HQB | PQB |
| OD/ID | mm | 55.6/46 | 71/60 | 89/77.8 | 114.3/101.6 |
| Thickness | mm | 4.8 | 5.5 | 5.6 | 6.35 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 44.45 | 44.45 | 44.45 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth angle | . | 29 | 29 | 29 | 29 |
| tensile resistance(A series) | kn | 400 | 530 | 510 | 565 |
| tensile resistance(B series) | kn | 450 | 615 | 625 | 660 |
| bore depth | m | 1200 | 1000 | 900 | 800 |
| QR series Rod parameter-geological steel pipe-entire length thermal treatment, NQ lathe with former cutters | |||||
| Spec. | Unit | BRQ | NRQ | HRQ | PRQ |
| OD/ID | mm | 55.6/46 | 69.9/60.3 | 88.9/77.8 | 114.3/101.6 |
| Length | m | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 | 1.5 or 3 |
| Weight | kg/m | 6.01 | 8.8 | 11.51 | 17.3 |
| thread length | mm | 42 | 42 | 41.91 | 63.5 |
| thread pitch | thread/inch | 3 | 3 | 3 | 2.5 |
| box thread tooth height | mm | 0.76 | 0.76 | 0.76 | 1.17 |
| pin thread tooth height | mm | 0.88 | 0.88 | 0.88 | 1.27 |
| thread tooth negative angle | . | 5 | 5 | 5 | 5 |
| tensile resistance(A) | kn | 450 | 525 | 545 | 565 |
| tensile resistance(B) | kn | 530 | 625.5 | 602 | 660 |
| bore depth | m | | |||
