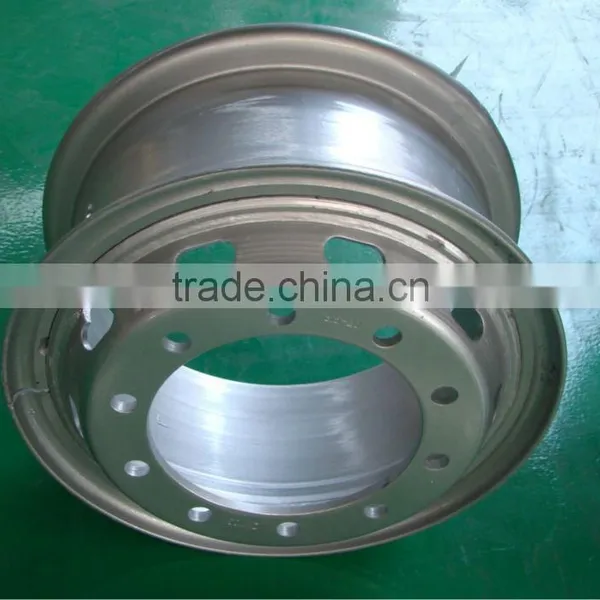

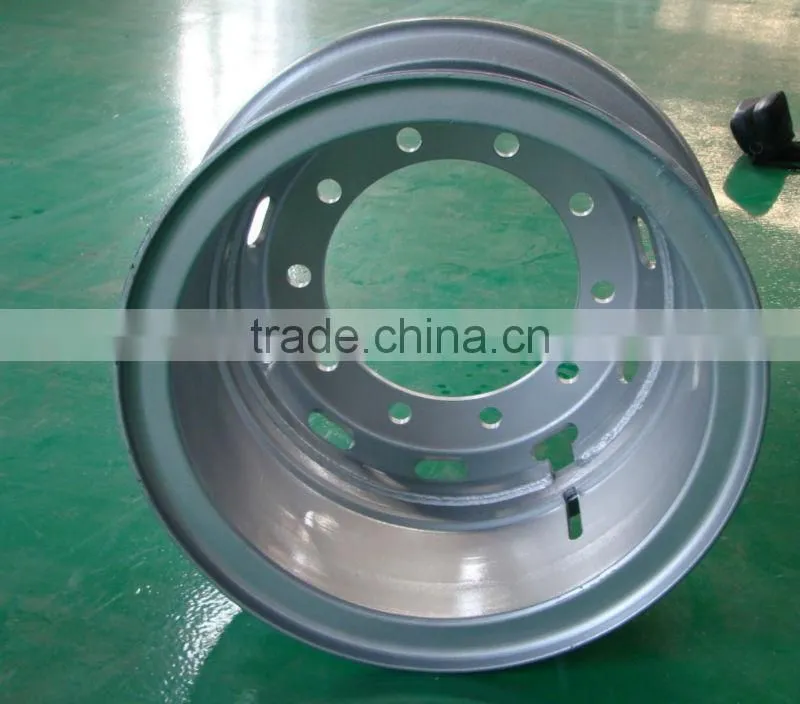

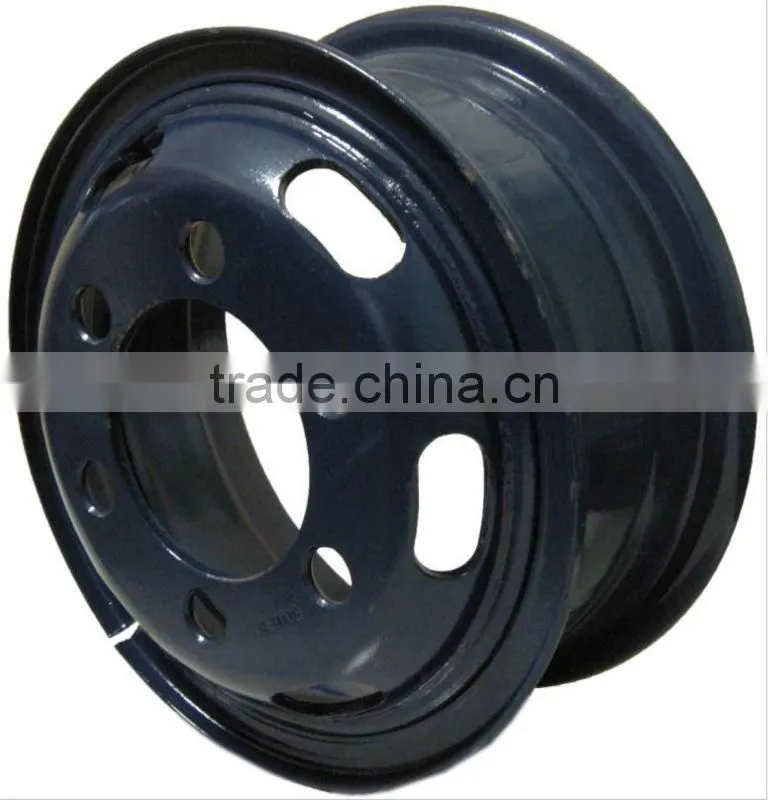

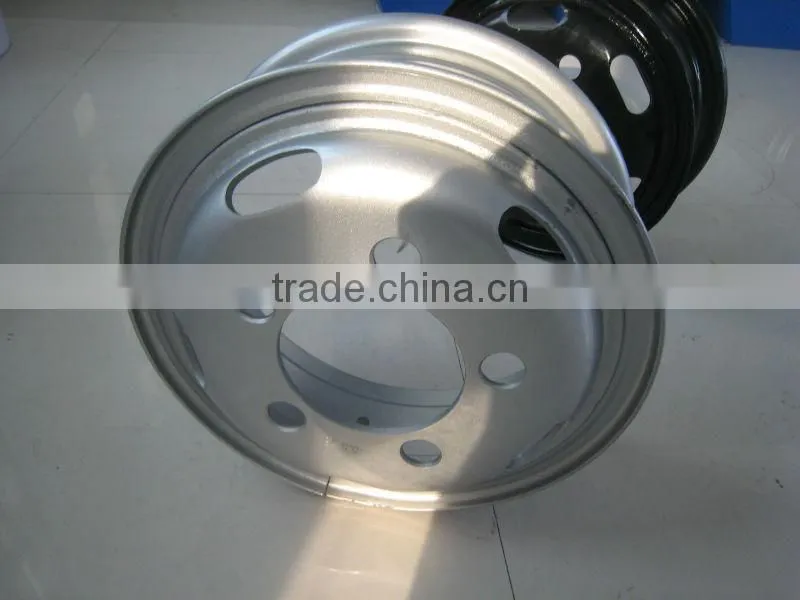

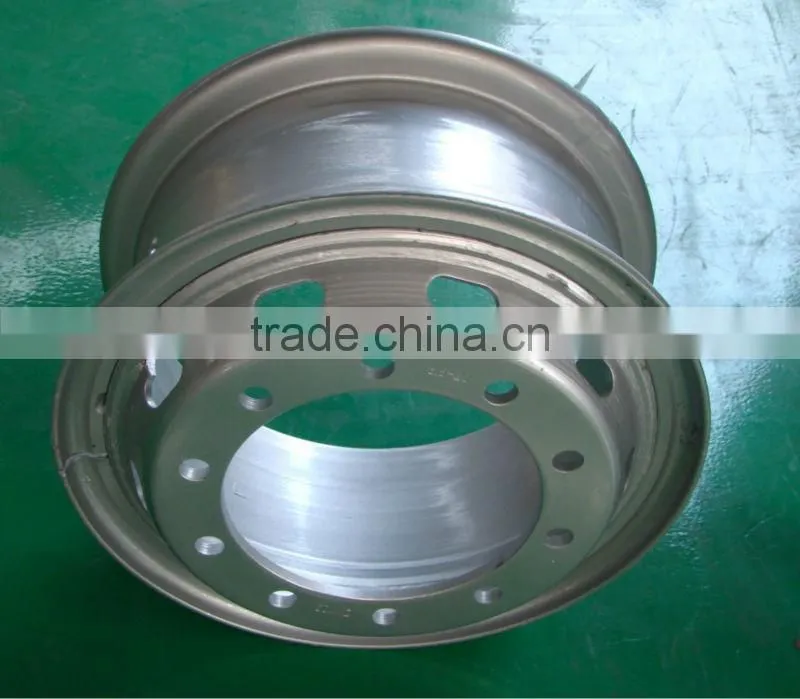

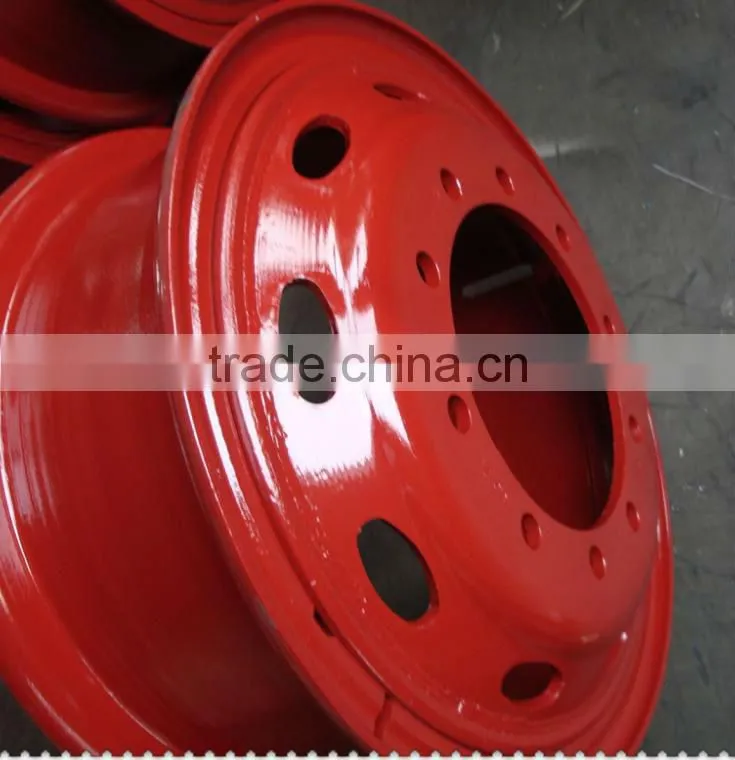

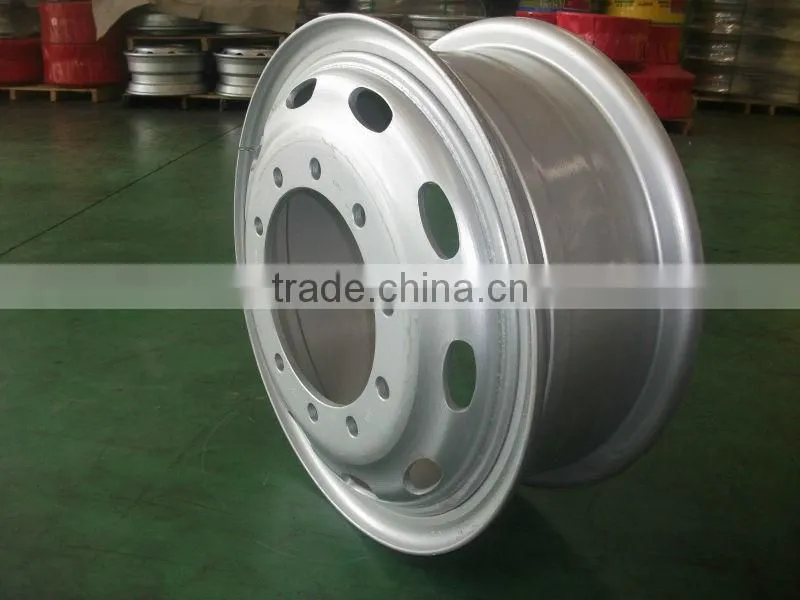

Tube steel truck wheel Rim 8.5-20

Specifications

1.Certificate:ISO9001:2000 / TS16949;
2.The most competitive price;
3.The highest quality.
4.the diversity of products

Tube steel truck wheel Rim 8.5-20



1.Certificate:ISO9001:2000 / TS16949;
2.The most competitive price;
3.The highest quality.
4.the diversity of products

1 . our company has over 20 years experience in the wheel-making industry .
2 . our products have passed ISO9001:2000 Certification .
3 . we are one of the most reliable and reputable suppliers of wheel in the area .
4 . we have excellent team who can design and produce the high quality steel wheels which will meet your special requirements .
5 . our products are very welcomed by our clients and we provide the best service and the highest quality .



SIZE	DISC GAGE(mm)	BOLT(mm)		CENTER BORE(mm)	OFFSET(mm)	TYRE SIZE
		Type	P.C.D
8.00V-20	12mm	10-Φ32-H	Φ285.75	Φ222	173	11.00-20
8.00V-20	14mm	10-Φ26-H	Φ335	Φ281	173
		10-Φ32-SR22	Φ285.75	Φ222	173
		10-Φ26-H	Φ285.75	Φ220	173
8.5-20	14mm	10-Φ26-H	Φ335	Φ281	175	12.00-20
		10-Φ32-SR22	Φ285.75	Φ222	175
		10-Φ26-H	Φ285.75	Φ220	175
		10-Φ32-SR18	Φ335	Φ281	172
		8-Φ32-SR	Φ285	Φ221	175
8.5-24	14mm	10-Φ26-H	Φ335	Φ281	180	12.00-24
8.5-24	16mm	10-Φ26-H	Φ335	Φ281	180
		10-Φ26-H	Φ335	Φ281	180
		10-Φ27-SR	Φ335	Φ281	180
Remark:   rim material: 12LW         disc material: Q235         ring: 16Mn
