Specifications
Supply all popular sizes of radial tractor&Haverster tires with competitive prices,Tires are up to the Ameriacan TRA standard

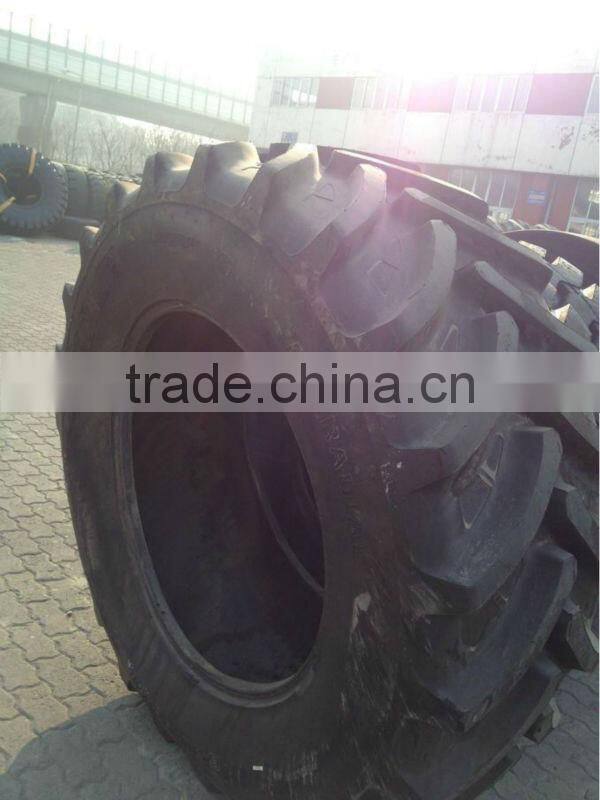

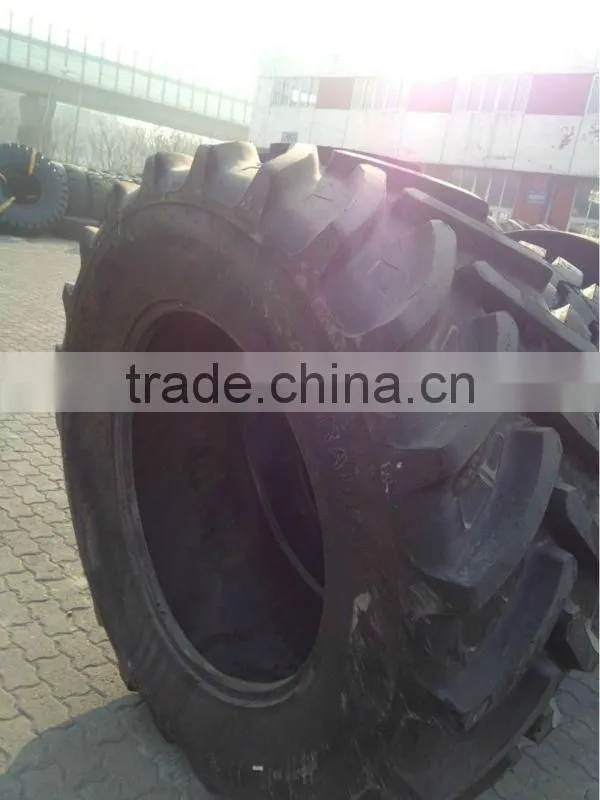

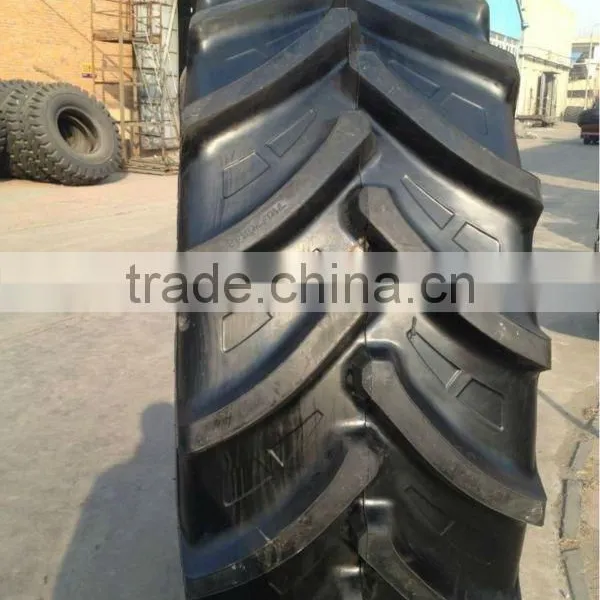

Radial Agriculture tire
1.Using for the large combined aricultural havester
2. suitable for agricultural implement vehicles transporting , directional tread pattern.
3. suitable to be used on soft road, muddy road and desert.
4.with deep tread and thick sidewalls providing better traction, better cutting resistance and a longer life.
| Pattern: R-1 | Tire size | TL/TT | Load Index Speed Symbol | Measured Rim width | Unload Dimension | Static Loaded Radius | Rolling Circumference | Load Capacity | Inflaction Pressure | Spped | Tread Depth | |
| Outer Diameter | Section Width | |||||||||||
| in | mm | mm | mm | mm±2% | kg | kpa | km/h | mm | ||||
| 38" | 420/85R38 (16.9R38) | TL | 144A8/141B | 15 | 1667 | 448 | 776 | 5207 | 3250 | 160 | 40 | 50 |
| 460/85R38 (18.4R38) | TL | 149A8/146B | 16 | 1737 | 482 | 841 | 5589 | 3875 | 160 | 40 | 51 | |
| 520/85R38 (20.8R38) | TL | 155A8/152B | 18 | 1863 | 546 | 844 | 5611 | 3350 | 160 | 40 | 50 | |
| 520/70R38 | TL | 150A8/147B | 16 | 1743 | 529 | 787 | 5238 | 3350 | 160 | 40 | 48 | |
| 580/70R38 | TL | 133A8/130B | 18 | 1852 | 580 | 811 | 5465 | 3875 | 160 | 40 | 51 | |
| 710/70R38 | TL | 155A8/152B | 23 | 1950 | 741 | 841 | 5837 | 5300 | 160 | 40 | 58 | |
| 540/65R38 | TL | 147A8/144B | 16 | 1682 | 604 | 796 | 5058 | 3075 | 160 | 40 | 48 | |
| 600/65R38 | TL | 153A8/150B | 18 | 1768 | 653 | 815 | 5311 | 3650 | 160 | 40 | 49 | |
| 650/65R38 | TL | 157A8/154B | 20 | 1812 | 651 | 865 | 5439 | 4125 | 160 | 40 | 51 | |
| 42" | 460/85R42 480/80R42 (18.4R42) | TL | 150A8/147B | 16 | 1865 | 493 | 844 | 5611 | 3350 | 160 | 40 | 50 |
| 520/85R42 (20.8R42) | TL | 157A8/154B | 18 | 1969 | 560 | 887 | 5917 | 4125 | 160 | 40 | 51 | |
| 620/70R42 | TL | 160A8/157B | 20 | 1917 | 626 | 841 | 5762 | 4500 | 160 | 40 | 52 | |
| 710/70R42 | TL | 173A8/170B | 23 | 2079 | 743 | 937 | 6234 | 6500 | 160 | 40 | 58 | |
| 650/65R42 | TL | 158A8/155B | 20 | 1921 | 651 | 865 | 5775 | 4250 | 160 | 40 | 51 | |
| 46" | 480/80R46 (18.4R46) | TL | 158A8/155B | 16 | 1971 | 490 | 805 | 5936 | 4250 | 160 | 40 | 50 |
| 520/85R46 (18.4R34) | TL | 158A8/155B | 18 | 2062 | 560 | 921 | 6205 | 4250 | 160 | 40 | 51 | |
