Specifications
Wide range of products;Top quality;
Fast delivery;
Competitive pricing;
Good service

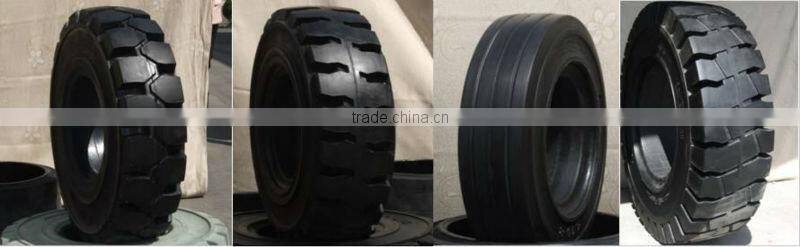

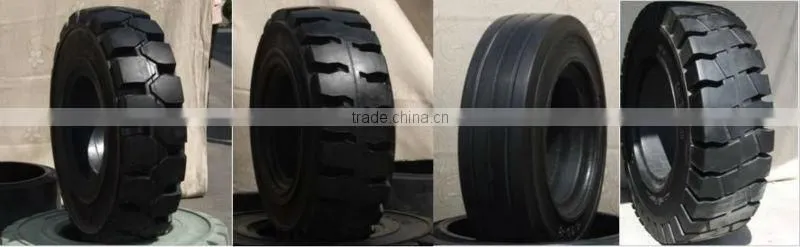

forklift tire 8.25-15
Fleming Tyre Co. Ltd is developing into an integrated group that combines tires designing, manufacturing and marketing. “Lares”and “Pathfinder” are our own brands, including PCR, TBR and TBB tires, OTR tires and AGR tires ect.
Our tires have passed all kinds of international certificates, including ISO9001, ISO14001, ISO/TS16949, ISO9000, DOT, ECE, REACH, INMETRO, SONCAP, SNI, NOM, GCC, CCC etc.
Suitable to scrapers and forklifts operating in areas like port,air port,factory and warehouse sites etc.with good cutting and wear resistances,wide and thick tread pattern provides good groud contact and traction,self-cleaning,long service life.
| Size | P.R. | Overall | Section | Tread | Rims | Inflated | Load Capacity(kgs) | |||||||
| Diameter | Width | Depth | Pressure | Drive Wheel | Steer Wheel | Industrial Vehicles | ||||||||
| ( mm ) | ( mm ) | ( mm ) | ( Kpa ) | 16km/h | 24km/h | 24km/h | 32km/h | 8km/h | 16km/h | 24km/h | 32km/h | |||
| 5.00-8 | 10 | 468 | 144 | 12 | 3.50D | 1000 | 1290 | 1100 | 955 | 850 | 955 | 760 | 705 | 655 |
| 6.00-9 | 10 | 540 | 166 | 13 | 4.00E | 860 | 1680 | 1515 | 1280 | 1125 | 1280 | 1010 | 945 | 875 |
| 6.50-10 | 10 | 590 | 186 | 15 | 5.00F | 790 | 1915 | 1725 | 1455 | 1280 | 1455 | 1150 | 1075 | 1000 |
| 7.00-12 | 12 | 676 | 197 | 19 | 5.00S | 860 | 2720 | 2445 | 2065 | 1815 | 2065 | 1360 | 1520 | 1415 |
| 7.00-12 | 14 | 676 | 197 | 19 | 5.00S | 1000 | 2965 | 2670 | 2255 | 1980 | 2255 | 1780 | 1660 | 1540 |
| 7.00-15 | 12 | 762 | 203 | 19 | 5.50F | 860 | 3150 | 2835 | 2395 | 2100 | 2395 | 1890 | 1760 | 1635 |
| 7.00-15 | 14 | 762 | 203 | 19 | 5.50F | 1000 | 3400 | 3060 | 2595 | 2270 | 2595 | 2040 | 1910 | 1785 |
| 7.50-15 | 12 | 802 | 215 | 19 | 6.00G | 790 | 3490 | 3140 | 2650 | 2330 | 2650 | 2095 | 1655 | 1815 |
| 7.50-15 | 14 | 802 | 215 | 19 | 6.00G | 925 | 3640 | 3290 | 2800 | 2480 | 2800 | 2245 | 2105 | 1965 |
| 8.25-15 | 12 | 830 | 250 | 20 | 6.5 | 720 | 3935 | 3545 | 2990 | 2630 | 2990 | 2365 | 2205 | 2050 |
| 8.25-15 | 14 | 830 | 250 | 20 | 6.5 | 830 | 4255 | 3830 | 3235 | 2845 | 3235 | 2555 | 2385 | 2215 |
| 18×7-8 | 14 | 465 | 173 | 14 | 4.33R | 900 | 1855 | 1685 | 1450 | 1295 | 1450 | 1160 | 1100 | 1040 |
| 18×7-8 | 16 | 465 | 173 | 14 | 4.33R | 1000 | 2130 | 1960 | 1640 | 1490 | 1640 | 1355 | 1285 | 1205 |
| 21×8-9 | 14 | 533 | 203 | 15 | 6.00E | 1000 | 2350 | 2115 | 1785 | 1570 | 1785 | 1405 | 1315 | 1220 |
| 23×9-10 | 18 | 584 | 225 | 13 | 6.50F | 1080 | 3240 | 2900 | 2485 | 2285 | 2485 | 1965 | 1875 | 1710 |
| 23×10-12 | 12 | 597 | 255 | 14 | 8 | 830 | 3290 | 2950 | 2495 | 2185 | 2495 | 1970 | 1835 | 1705 |
| 27×10-12 | 14 | 690 | 255 | 16 | 8.00G | 830 | 3400 | 3035 | 2650 | 2350 | 2650 | 2140 | 1980 | 1800 |
| 8.15-15/28*9-15 | 14 | 706 | 231 | 20 | 7 | 970 | 3415 | 3075 | 2595 | 2280 | 2595 | 2050 | 1910 | 1775 |
| 250-15 | 16 | 735 | 250 | 20 | 7.5 | 930 | 4285 | 3855 | 3265 | 2860 | 3265 | 2575 | 2405 | 2230 |
| 250-15 | 18 | 735 | 250 | 20 | 7.5 | 1030 | 4580 | 4105 | 3470 | 3040 | 3470 | 2745 | 2560 | 2375 |
| 300-15 | 20 | 840 | 300 | 21 | 8 | 930 | 6575 | 5940 | 4990 | 4400 | 4990 | 3945 | 3675 | 3425 |
| 9.00-20 | 14 | 1034 | 259 | 20 | 7 | 760 | 5880 | 5285 | 4465 | 4105 | 4465 | 3520 | 3290 | 3065 |
| 10.00-20 | 16 | 1070 | 300 | 22 | 7.5 | 795 | 6765 | 6085 | 5140 | 4502 | 5140 | 4055 | 3790 | 3520 |
| 10.00-20 | 18 | 1070 | 300 | 22 | 7.5 | 900 | 7300 | 6560 | 5545 | 4875 | 5545 | 4270 | 4090 | 3800 |
| 12.00-20 | 18 | 1145 | 331 | 25 | 8.5 | 690 | 7725 | 6980 | 5895 | 5180 | 5895 | 4655 | 4345 | 4035 |
| 12.00-20 | 20 | 1145 | 331 | 25 | 8.5 | 900 | 8275 | 7500 | 6415 | 5700 | 6415 | 5175 | 4865 | 4555 |
| 12.00-20 | 24 | 1145 | 331 | 25 | 8.5 | 1150 | 9455 | 8680 | 7595 | 6880 | 7595 | 6355 | 6045 | 5735 |
| 12.00-20 | 28 | 1145 | 331 | 25 | 8.5 | 1300 | 10355 | 9460 | 8345 | 7630 | 8345 | 7105 | 6795 | 6585 |
